25% off

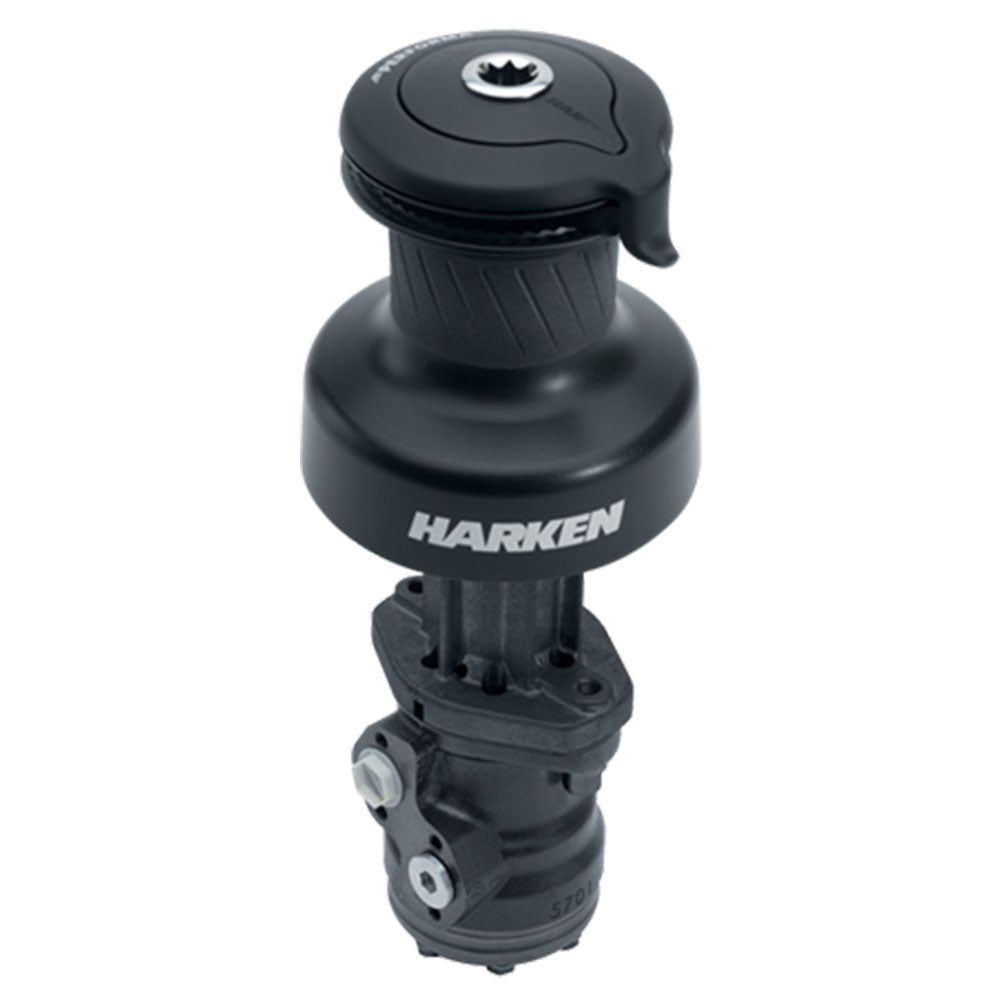

Harken Hydraulic Winch Performa Size 70 - Aluminum Black / Three Speed
$12,820.00 USD
$17,093.33
Unit price
/
Unavailable
Harken Hydraulic Winch Performa Size 70 - Aluminum Black / Three Speed is backordered and will ship as soon as it is back in stock.
Description
Description
All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Hydraulic Performa winches let you trim any size sail with the push of a button.
Our Part # HAR703STHP | Harken Part # 70.3STHP
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|

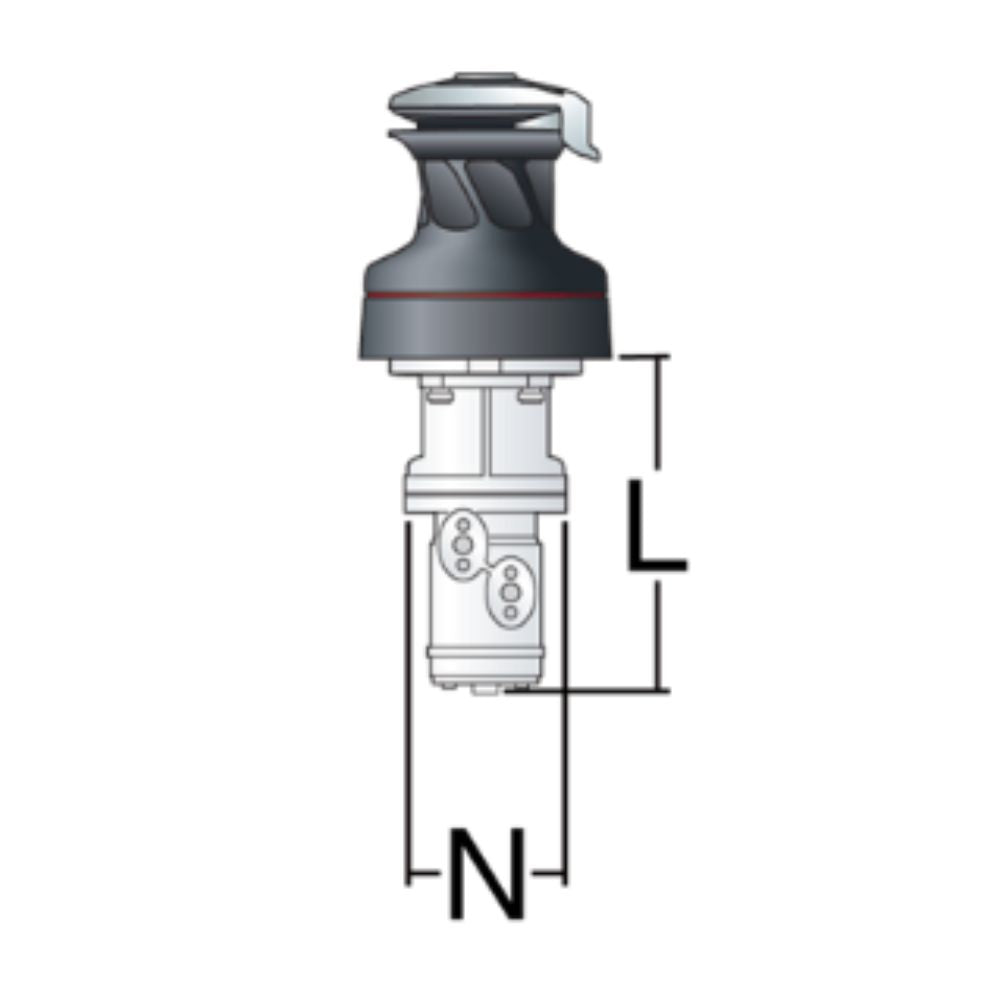

Hydraulic L | 9 1/4 in. | 234.00 mm. |
Hydraulic N | 5 1/8 in. | 130.00 mm. |
Configuration | Self-Tailing | Self-Tailing |
Speed | 3.00 | 3.00 |
Drum | 5 1/8 in. | 130.00 mm. |
Base | 9 7/16 in. | 240.00 mm. |
Height | 10 3/8 in. | 264.00 mm. |
Weight | 28.30 lb. | 12.80 kg. |
Weight of Winch and Motor | 44.80 lb. | 20.30 kg. |
Motor Weight | 16.60 lb. | 7.50 kg. |
Line Entry Height | 4 1/2 in. | 115.00 mm. |
Minimum Line | 3/8 in. | 10.00 mm. |
Maximum Line | 5/8 in. | 16.00 mm. |
Fastener Circle | 8 1/8 in. | 205.00 mm. |
Fasteners | 5/16 HH, 5/16 SH in. | M8 HH, M8 SH mm. |
Number of Fasteners | 6.00 | 6.00 |
Gear Ratio - 1 | 2.30 | 2.30 |
Gear Ratio - 2 | 5.70 | 5.70 |
Gear Ratio - 3 | 18.50 | 18.50 |
Power Ratio - 1 | 9.00 | 9.00 |
Power Ratio - 2 | 22.20 | 22.20 |
Power Ratio - 3 | 72.00 | 72.00 |
Racing Disconnect Rod | B70.3PDR | B70.3PDR |
Available Power | Hydraulic | Hydraulic |
