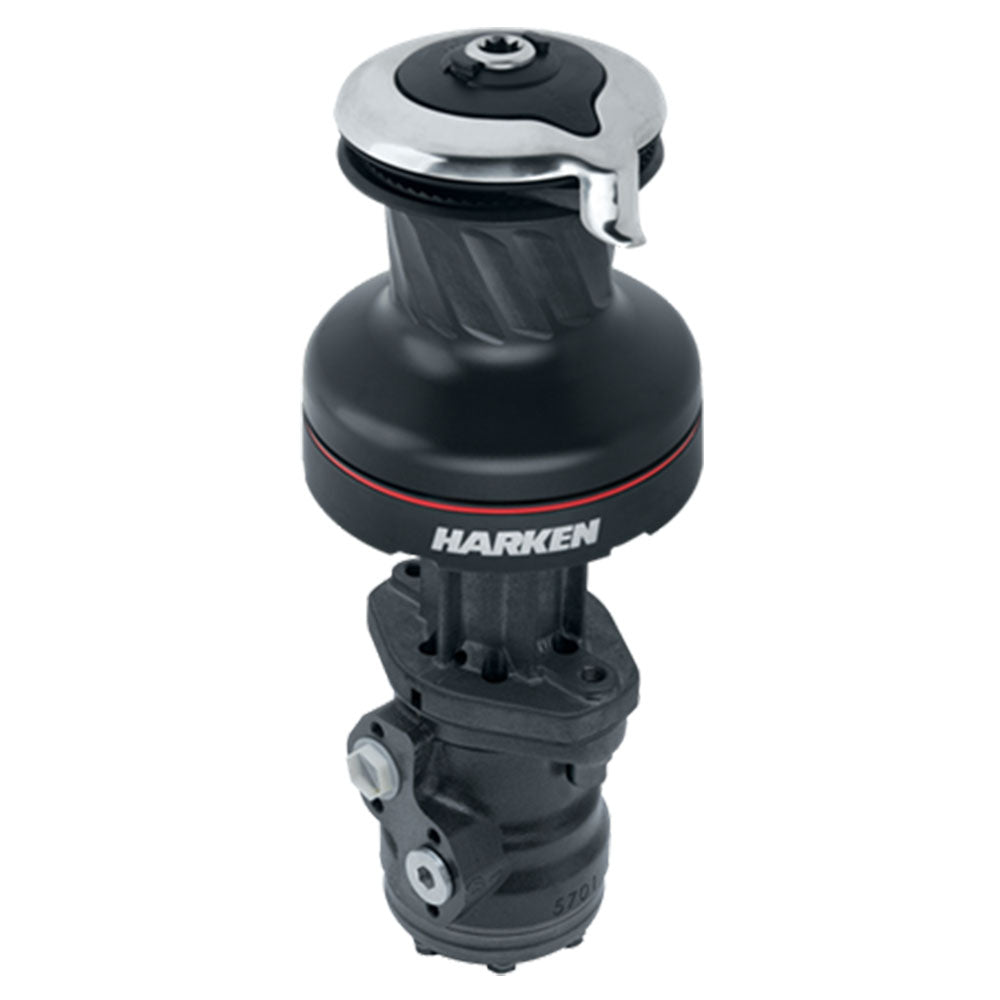

Harken Hydraulic Winch Radial Size 70 - Aluminum Black / Three Speed
$9,870.00 USD
$13,160.00
Unit price
/
Unavailable
Harken Hydraulic Winch Radial Size 70 - Aluminum Black / Three Speed is backordered and will ship as soon as it is back in stock.
Description
Description

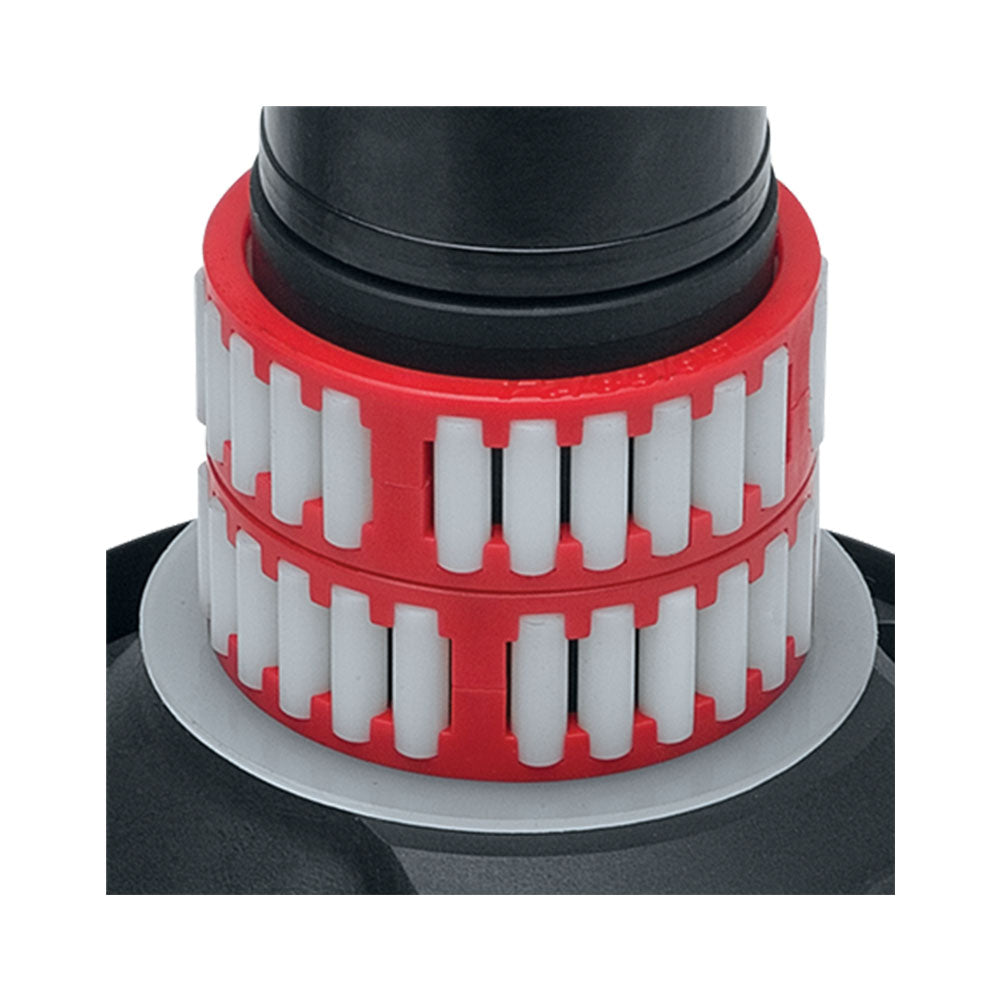

Powered Radial winches allow crew to trim any size sail with the push of a button. Composite roller bearings reduce friction under load and don't require lubrication. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability.
Our Part # HAR703STHA | Harken Part # 70.3STHA
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Material | Aluminum | Aluminum |

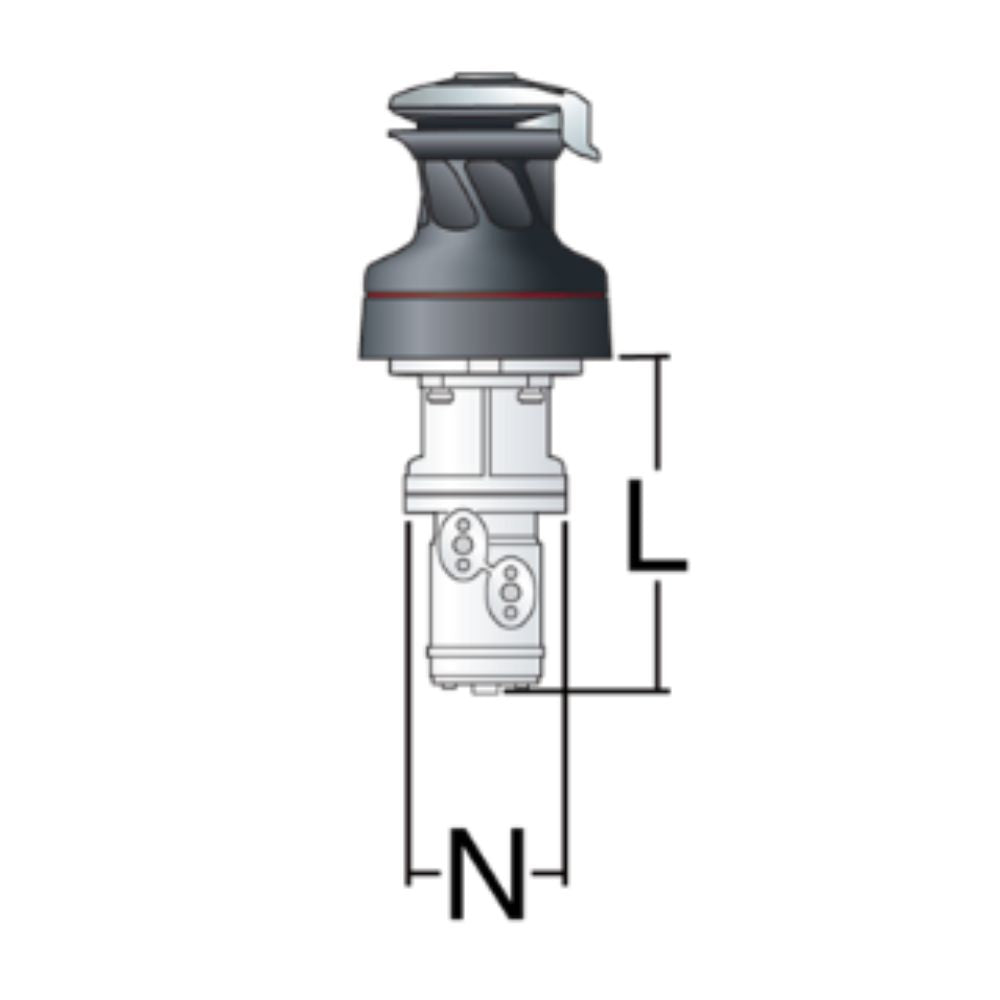

Hydraulic L | 9 1/4 in. | 234.00 mm. |
Hydraulic N | 5 1/8 in. | 130.00 mm. |
Configuration | Self-Tailing | Self-Tailing |
Speed | 3.00 | 3.00 |
Drum | 5 1/8 in. | 130.00 mm. |
Base | 9 7/16 in. | 240.00 mm. |
Height | 10 3/8 in. | 264.00 mm. |
Weight | 28.30 lb. | 12.80 kg. |
Weight of Winch and Motor | 44.80 lb. | 20.30 kg. |
Motor Weight | 16.60 lb. | 7.50 kg. |
Line Entry Height | 4 1/2 in. | 115.00 mm. |
Minimum Line | 3/8 in. | 10.00 mm. |
Maximum Line | 11/16 in. | 18.00 mm. |
Fastener Circle | 8 1/8 in. | 205.00 mm. |
Fasteners | 5/16 HH, 5/16 SH in. | M8 HH, M8 SH mm. |
Number of Fasteners | 6.00 | 6.00 |
Gear Ratio - 1 | 2.30 | 2.30 |
Gear Ratio - 2 | 5.70 | 5.70 |
Gear Ratio - 3 | 18.50 | 18.50 |
Power Ratio - 1 | 9.00 | 9.00 |
Power Ratio - 2 | 22.20 | 22.20 |
Power Ratio - 3 | 72.00 | 72.00 |
Available Power | Hydraulic | Hydraulic |
