Harken  |  SKU: HAR702STHA  |  Manuf. Code: 70.2STHA

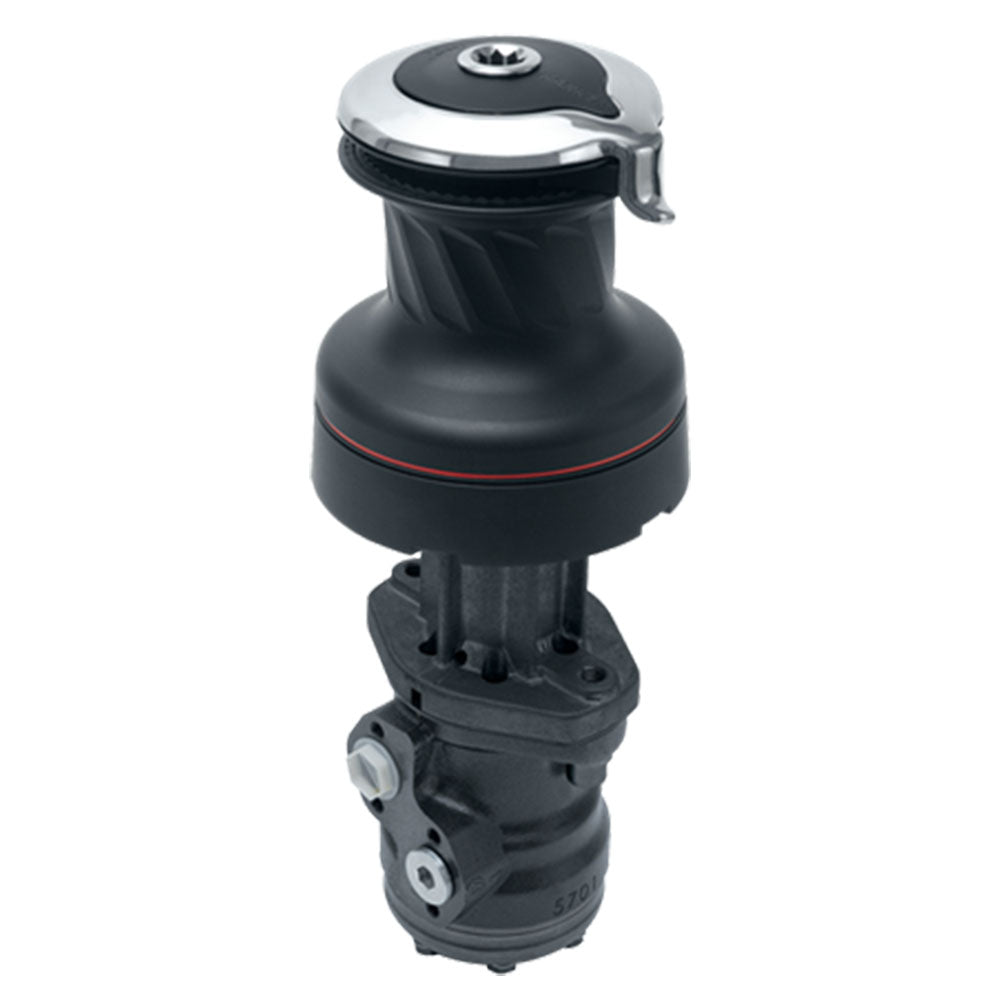

Harken Hydraulic Winch Radial Size 70 - Aluminum Black / Two Speed

$7,640.00 USD $10,186.67

Description

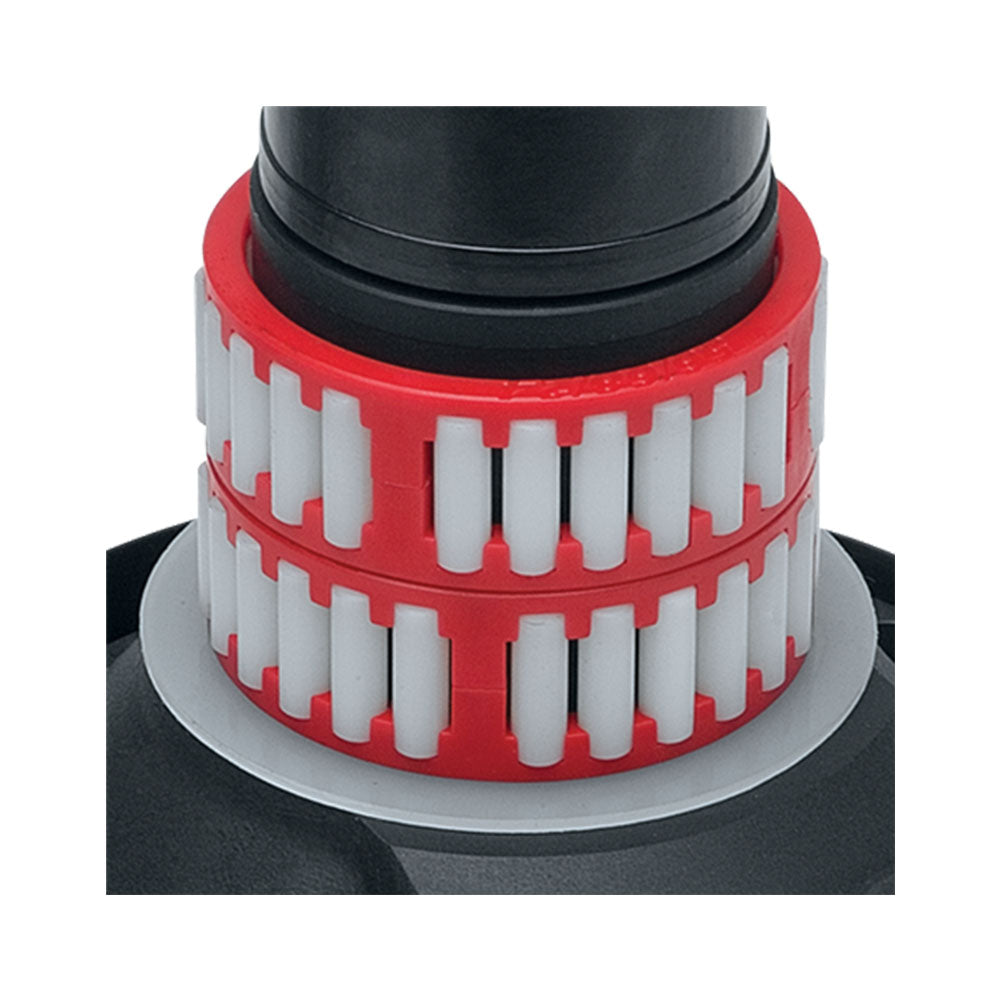

Powered Radial winches allow crew to trim any size sail with the push of a button. Composite roller bearings reduce friction under load and don't require lubrication. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability.

Our Part # HAR702STHA | Harken Part # 70.2STHA

Technical Information


DescriptionImperialMetric
MaterialAluminumAluminum

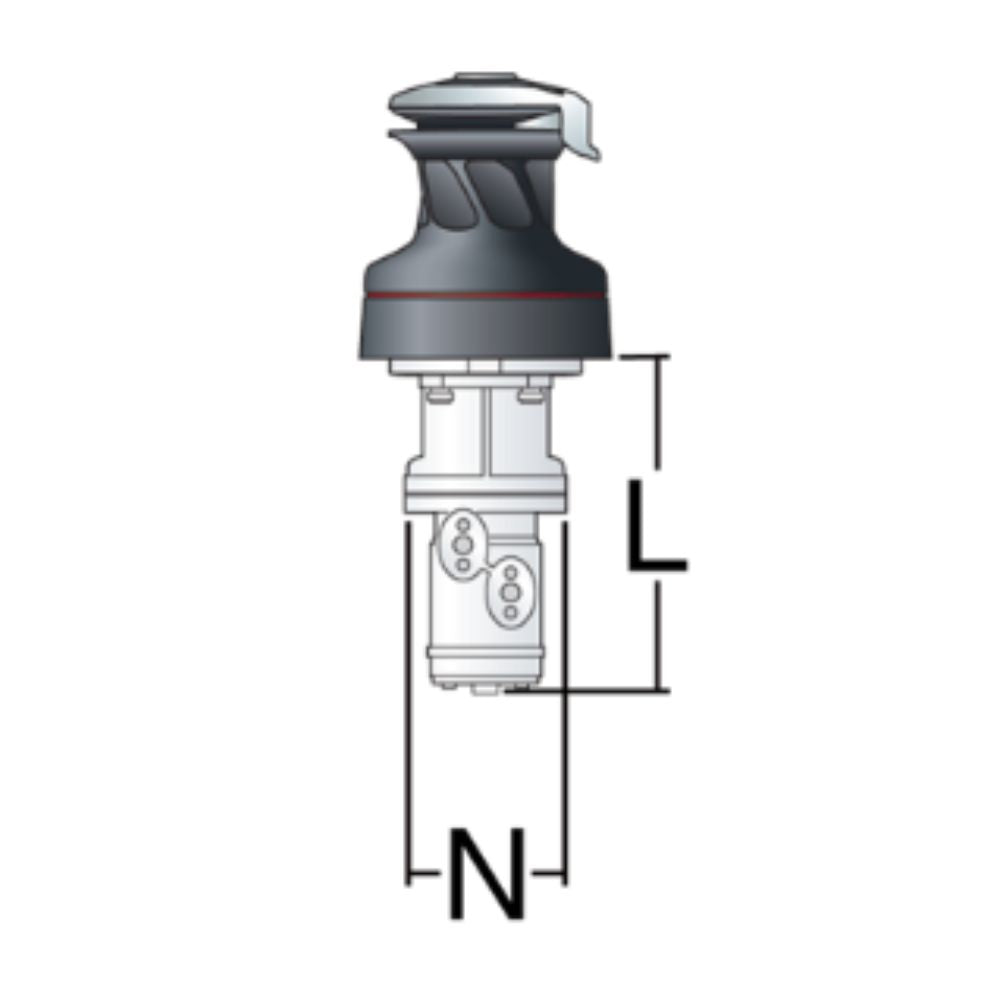

Hydraulic L9 1/4 in.234.00 mm.
Hydraulic N5 1/8 in.130.00 mm.
ConfigurationSelf-TailingSelf-Tailing
Speed2.002.00
Drum5 1/8 in.130.00 mm.
Base9 7/16 in.240.00 mm.
Height10 1/16 in.256.00 mm.
Weight24.90 lb.11.30 kg.
Weight of Winch and Motor41.50 lb.18.80 kg.
Motor Weight16.60 lb.7.50 kg.
Line Entry Height4 1/2 in.115.00 mm.
Minimum Line3/8 in.10.00 mm.
Maximum Line5/8 in.16.00 mm.
Fastener Circle8 1/8 in.205.00 mm.
Fasteners5/16 HH, 5/16 SH in.M8 HH, M8 SH mm.
Number of Fasteners6.006.00
Gear Ratio - 15.705.70
Gear Ratio - 218.5018.50
Power Ratio - 122.2022.20
Power Ratio - 272.0072.00
Available PowerHydraulicHydraulic
