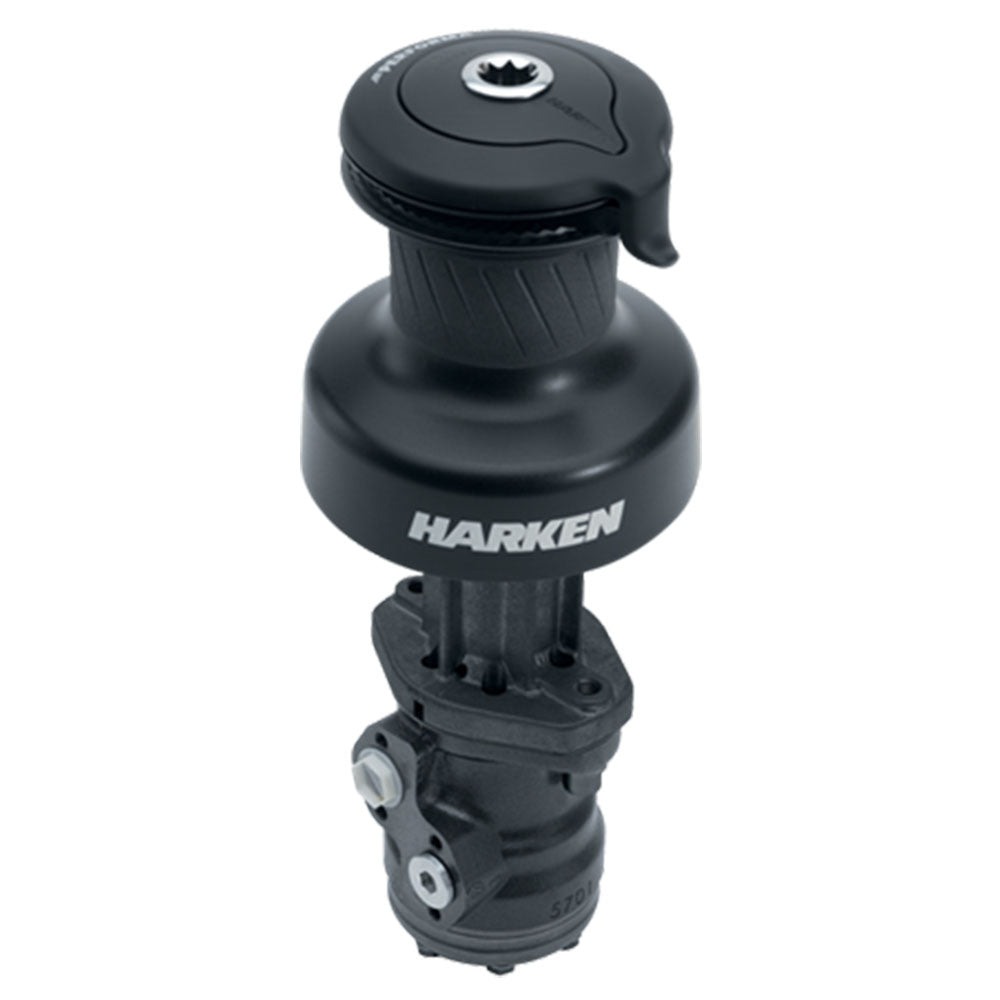

Harken Hydraulic Winch Performa Size 60 - Aluminum Black / Two Speed
$8,420.00 USD
$11,226.67
Unit price
/
Unavailable
Harken Hydraulic Winch Performa Size 60 - Aluminum Black / Two Speed is backordered and will ship as soon as it is back in stock.
Description
Description
All Performa winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Hydraulic Performa winches let you trim any size sail with the push of a button.
Our Part # HAR602STHP | Harken Part # 60.2STHP
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|

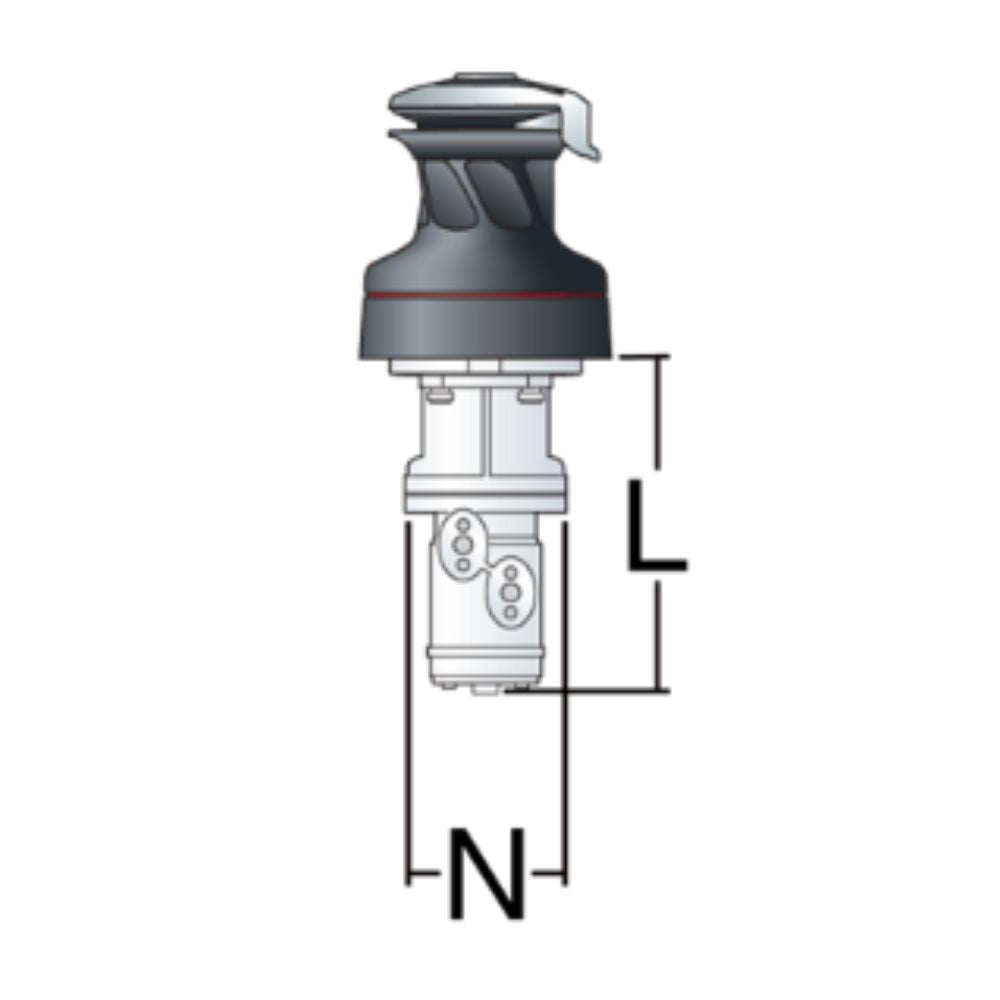

Hydraulic L | 9 1/4 in. | 234.00 mm. |
Hydraulic N | 5 1/8 in. | 130.00 mm. |
Configuration | Self-Tailing | Self-Tailing |
Speed | 2.00 | 2.00 |
Drum | 4 3/4 in. | 120.00 mm. |
Base | 9 5/16 in. | 236.00 mm. |
Height | 9 11/16 in. | 246.00 mm. |
Weight | 22.50 lb. | 10.20 kg. |
Weight of Winch and Motor | 39.10 lb. | 17.70 kg. |
Motor Weight | 16.60 lb. | 7.50 kg. |
Line Entry Height | 4 9/16 in. | 116.00 mm. |
Minimum Line | 5/16 in. | 8.00 mm. |
Maximum Line | 5/8 in. | 16.00 mm. |
Fastener Circle | 8.00 in. | 204.00 mm. |
Fasteners | 5/16 HH, 5/16 SH in. | M8 HH, M8 SH mm. |
Number of Fasteners | 6.00 | 6.00 |
Gear Ratio - 1 | 4.80 | 4.80 |
Gear Ratio - 2 | 14.40 | 14.40 |
Power Ratio - 1 | 20.30 | 20.30 |
Power Ratio - 2 | 61.00 | 61.00 |
Racing Disconnect Rod | B60PDR | B60PDR |
Available Power | Hydraulic | Hydraulic |
