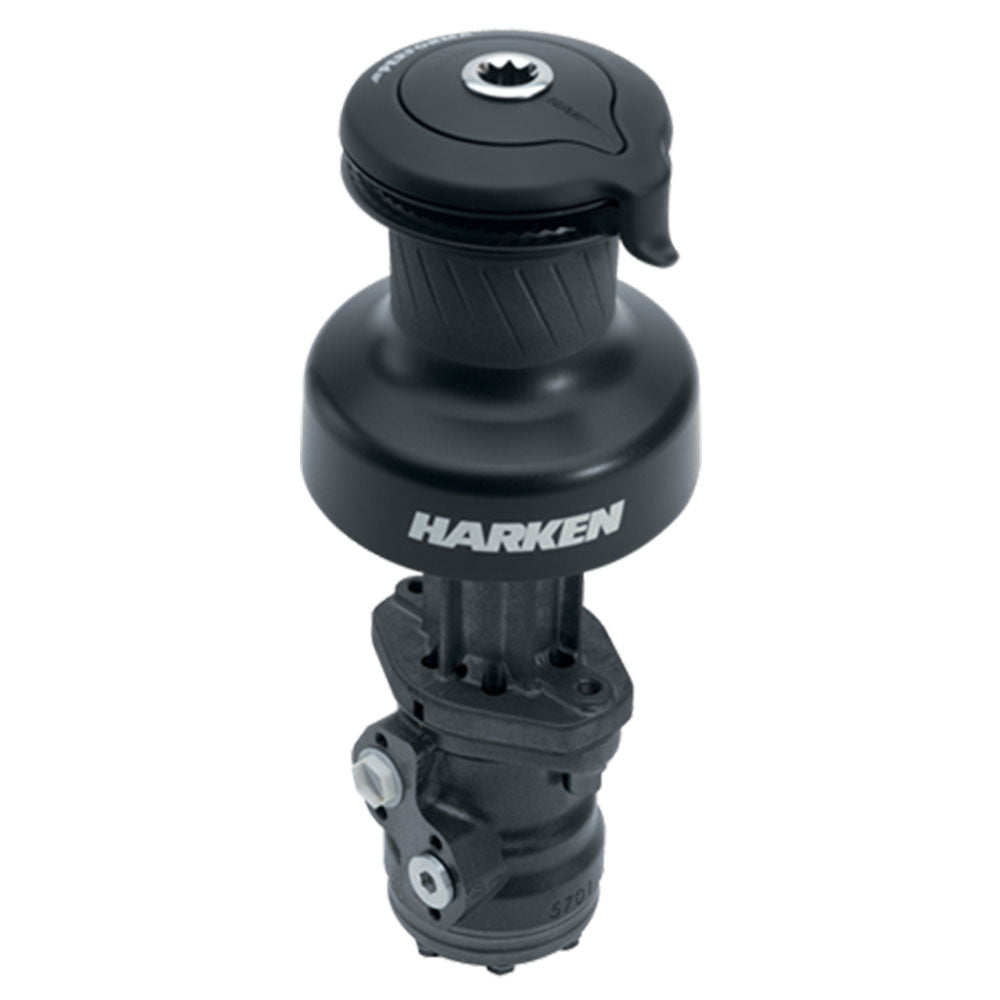

Harken Hydraulic Winch Performa Size 50 - Aluminum Black / Two Speed
$7,150.00 USD
$9,533.33
Unit price
/
Unavailable
Harken Hydraulic Winch Performa Size 50 - Aluminum Black / Two Speed is backordered and will ship as soon as it is back in stock.
Description
Description
All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line. Hydraulic Performa winches let you trim any size sail with the push of a button.
Our Part # HAR502STHP | Harken Part # 50.2STHP
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|

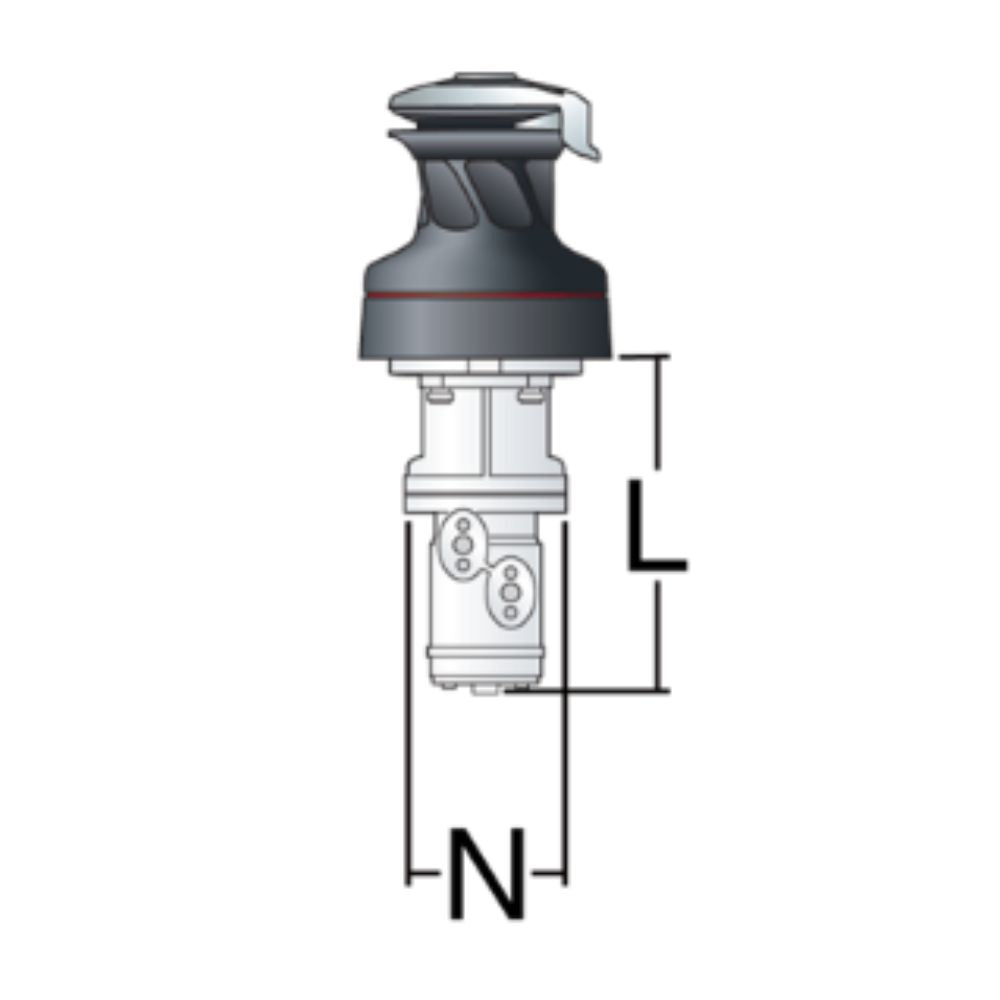

Hydraulic L | 9 1/4 in. | 234.00 mm. |
Hydraulic N | 5 1/8 in. | 130.00 mm. |
Configuration | Self-Tailing | Self-Tailing |
Speed | 2.00 | 2.00 |
Drum | 4 5/16 in. | 110.00 mm. |
Base | 7 11/16 in. | 195.00 mm. |
Height | 8 5/16 in. | 212.00 mm. |
Weight | 13.20 lb. | 6.00 kg. |
Weight of Winch and Motor | 29.80 lb. | 13.50 kg. |
Motor Weight | 16.60 lb. | 7.50 kg. |
Line Entry Height | 3 13/16 in. | 97.00 mm. |
Minimum Line | 5/16 in. | 8.00 mm. |
Maximum Line | 9/16 in. | 14.00 mm. |
Fastener Circle | 5 7/8 in. | 150.00 mm. |
Fasteners | 5/16 HH, 5/16 SH in. | M8 HH, M8 SH mm. |
Number of Fasteners | 5.00 | 5.00 |
Gear Ratio - 1 | 2.40 | 2.40 |
Gear Ratio - 2 | 10.90 | 10.90 |
Power Ratio - 1 | 11.10 | 11.10 |
Power Ratio - 2 | 50.40 | 50.40 |
Racing Disconnect Rod | B50PDR | B50PDR |
Available Power | Hydraulic | Hydraulic |
