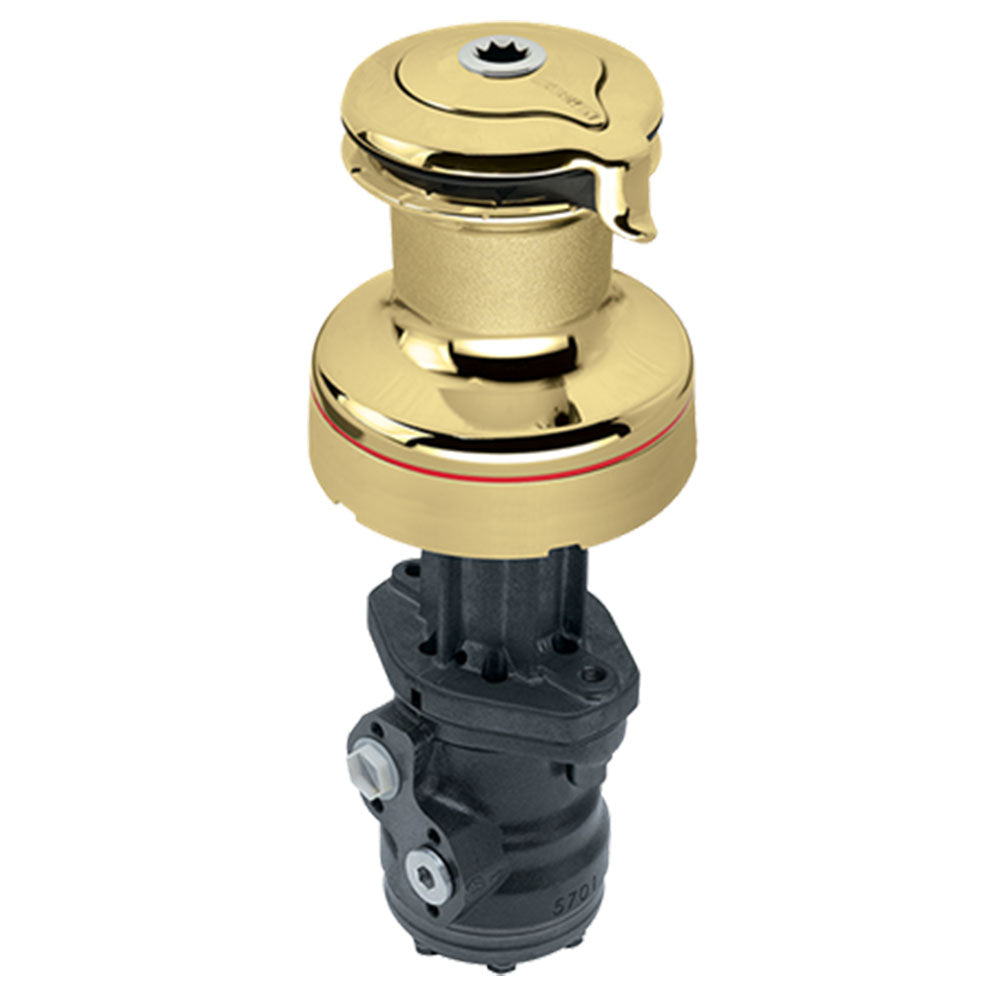

Harken Hydraulic Winch Radial Size 50 - Bronze All / Two Speed
Harken Hydraulic Winch Radial Size 50 - Bronze All / Two Speed is backordered and will ship as soon as it is back in stock.
Description
Description
Hydraulic Radial winches let you relax in luxury and trim any size sail with the push of a button.
The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance.
Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets.
Efficient design allows smaller motor size.
Our Part # HAR502STHBBB | Harken Part # 50.2STHBBB
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|

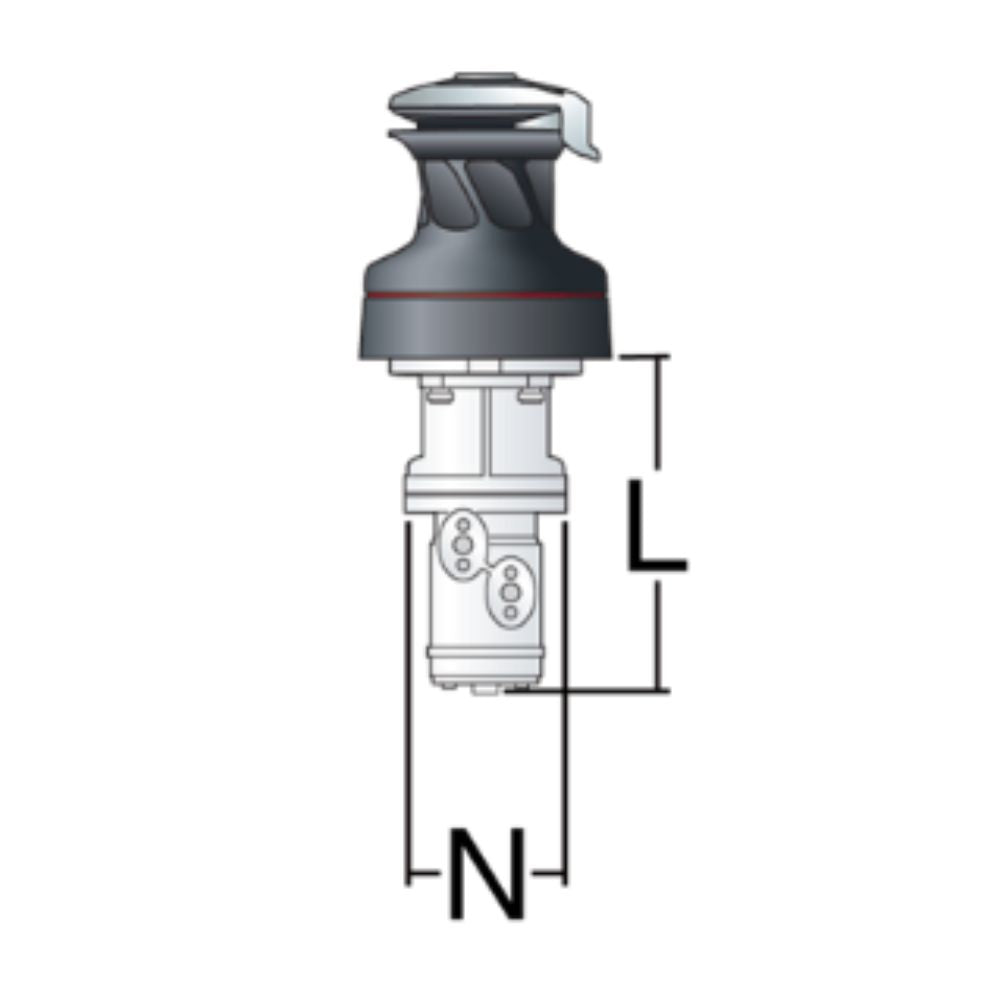

Hydraulic L | 9 1/4 in. | 234.00 mm. |
Hydraulic N | 5 1/8 in. | 130.00 mm. |
Speed | 2.00 | 2.00 |
Drum | 4 5/16 in. | 110.00 mm. |
Base | 7 5/8 in. | 194.00 mm. |
Height | 8 5/16 in. | 212.00 mm. |
Weight of Winch and Motor | 39.50 lb. | 17.90 kg. |
Motor Weight | 16.60 lb. | 7.50 kg. |
Line Entry Height | 3 7/8 in. | 97.00 mm. |
Minimum Line | 5/16 in. | 8.00 mm. |
Maximum Line | 9/16 in. | 14.00 mm. |
Fastener Circle | 5 7/8 in. | 150.00 mm. |
Fasteners | 5/16 HH, 5/16 SH in. | M8 HH, M8 SH mm. |
Number of Fasteners | 5.00 | 5.00 |
Gear Ratio - 1 | 2.40 | 2.40 |
Gear Ratio - 2 | 10.90 | 10.90 |
Power Ratio - 1 | 10.90 | 10.90 |
Power Ratio - 2 | 50.40 | 50.40 |
Available Power | Hydraulic | Hydraulic |
