Harken  |  SKU: HAR462STHA  |  Manuf. Code: 46.2STHA

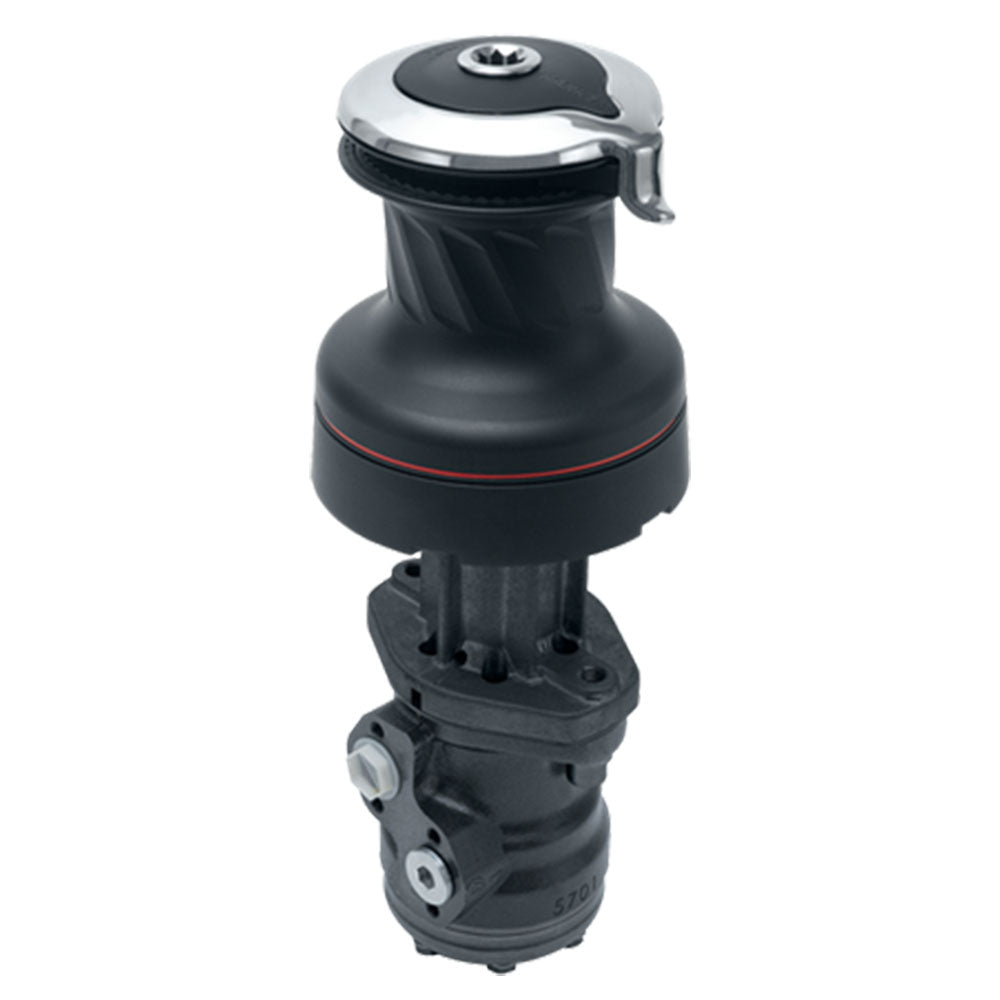

Harken Hydraulic Winch Radial Size 46 - Aluminum Black / Two Speed

$4,890.00 USD $6,520.00

Description

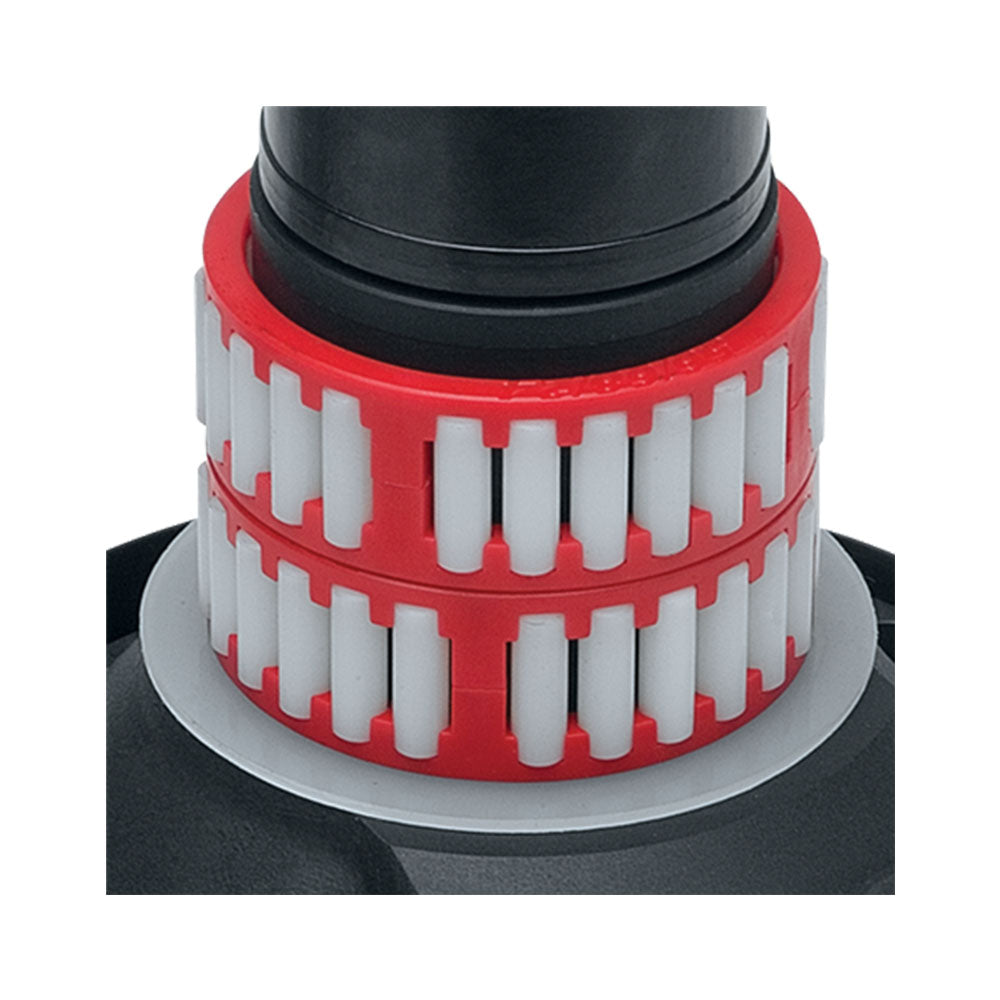

Powered Radial winches allow crew to trim any size sail with the push of a button. Composite roller bearings reduce friction under load and don't require lubrication. Load-carrying gears and pins are 17-4PH stainless steel for strength and durability.

Our Part # HAR462STHA | Harken Part # 46.2STHA

Technical Information


DescriptionImperialMetric
MaterialAluminumAluminum

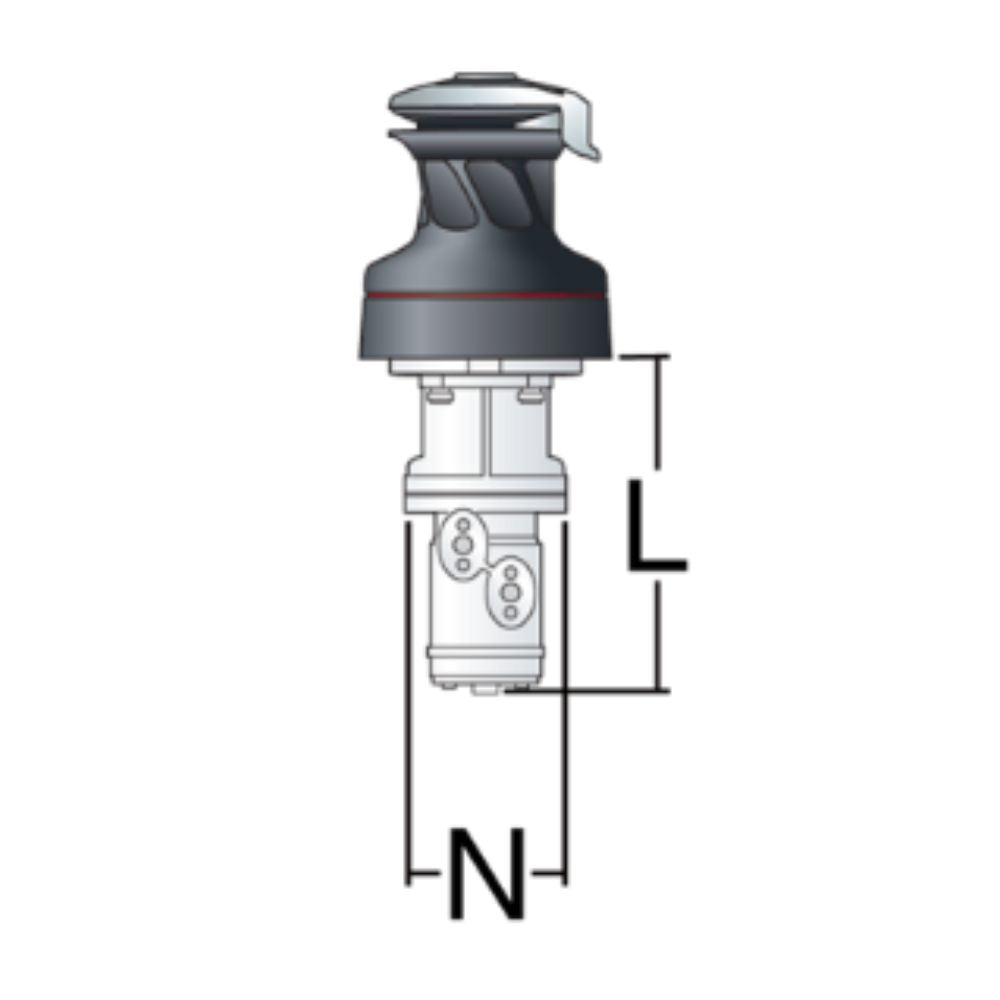

Hydraulic L9 1/4 in.234.00 mm.
Hydraulic N5 1/8 in.130.00 mm.
ConfigurationSelf-TailingSelf-Tailing
Speed2.002.00
Drum3 7/8 in.100.00 mm.
Base7 1/4 in.184.00 mm.
Height7 15/16 in.201.00 mm.
Weight11.50 lb.5.20 kg.
Weight of Winch and Motor28.00 lb.12.70 kg.
Motor Weight16.60 lb.7.50 kg.
Line Entry Height3 9/16 in.90.00 mm.
Minimum Line5/16 in.8.00 mm.
Maximum Line9/16 in.14.00 mm.
Fastener Circle5 7/8 in.150.00 mm.
Fasteners5/16 HH, 5/16 SH in.M8 HH, M8 SH mm.
Number of Fasteners5.005.00
Gear Ratio - 12.302.30
Gear Ratio - 29.179.17
Power Ratio - 111.7011.70
Power Ratio - 246.5046.50
Available PowerHydraulicHydraulic
