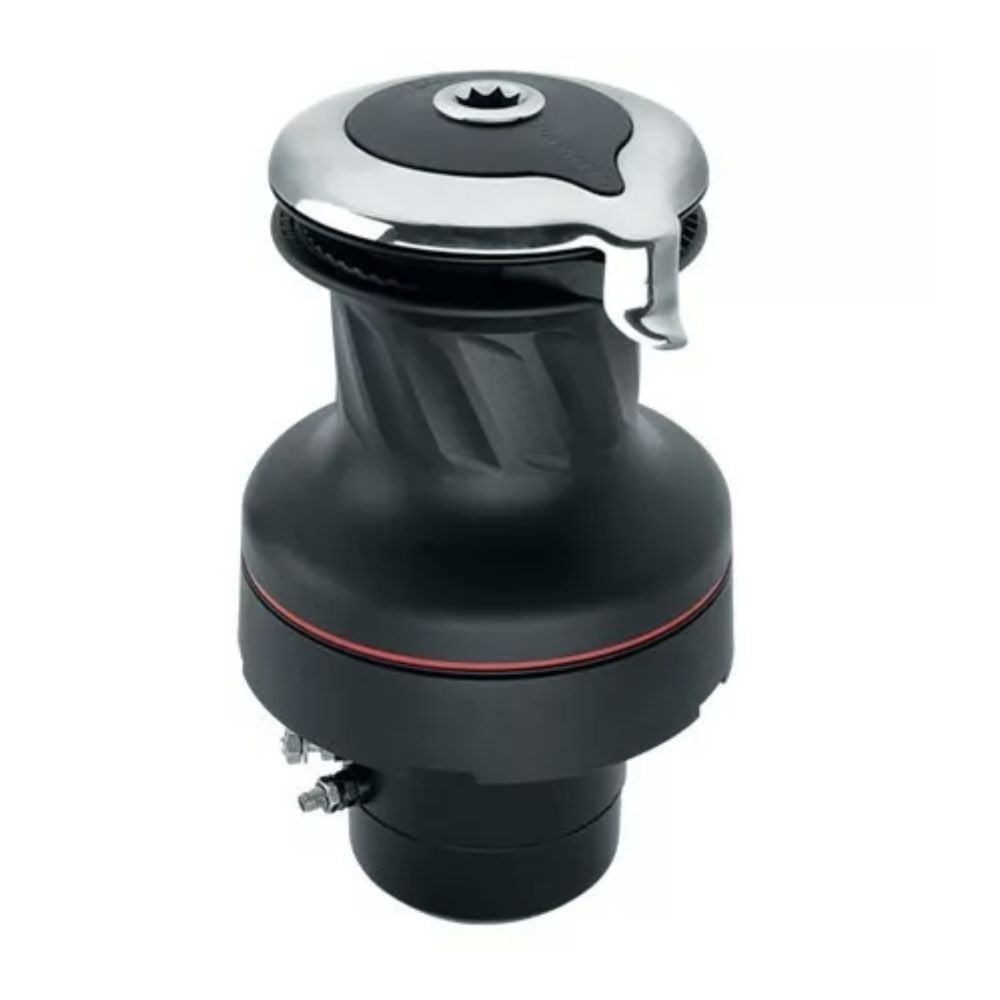

Harken Electric Winch Unipower Size 900 - 24V / Aluminum Black / One Speed Winch / Vertical Mount
Harken Electric Winch Unipower Size 900 - 24V / Aluminum Black / One Speed Winch / Vertical Mount is backordered and will ship as soon as it is back in stock.
Description
Description
The UniPower is a single-speed winch that combines the advantages of a low-profile manual winch with the power of a 12 or 24 volt, low-amp-draw motor. What makes it unique is that the motor is partially imbedded inside the drum, so that it extends only 105 mm (4 1/8 inches) below the winch base - a critical feature for small boats where space under the cabin top is limited. Composite roller bearings reduce friction under load and dont require lubrication. Gears are 17-4PH stainless steel for strength and durability. Harken recommends the single function digital switch DSSBK and circuit breaker HCP1717. Sold separately.
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Height | 8 1/2 in. | 215.00 mm. |
Weight | 26.50 lb. | 12.00 kg. |
Maximum line dia. | 9/16 in. | 14.00 mm. |
Fasteners | 5/16 SH in. | M8 SH mm. |
Number of fasteners | 5 | |
Fastener circle | 6 5/16 in. | 160.00 mm. |
Minimum line dia. | 5/16 in. | 8.00 mm. |
E | 1 3/8 in. | 35.00 mm. |
F | 4 1/8 in. | 105.00 mm. |
G | 5 1/2 in. | 140.00 mm. |
Material | Aluminum | |
Base dia. | 7 1/2 in. | 190.00 mm. |
Available power | Electric vertical 24V | |
Maximum pulling load | 1984.00 lb. | 900.00 kg. |
Configuration | Self-tailing | |
Speed | 1 | |
Drum dia. | 4 3/8 in. | 110.00 mm. |
Line entry height upper | 3 15/16 in. | 100.00 mm. |
Voltage | 24 |
