Harken  |  SKU: HAR900UPWA12  |  Manuf. Code: 900UPWA12

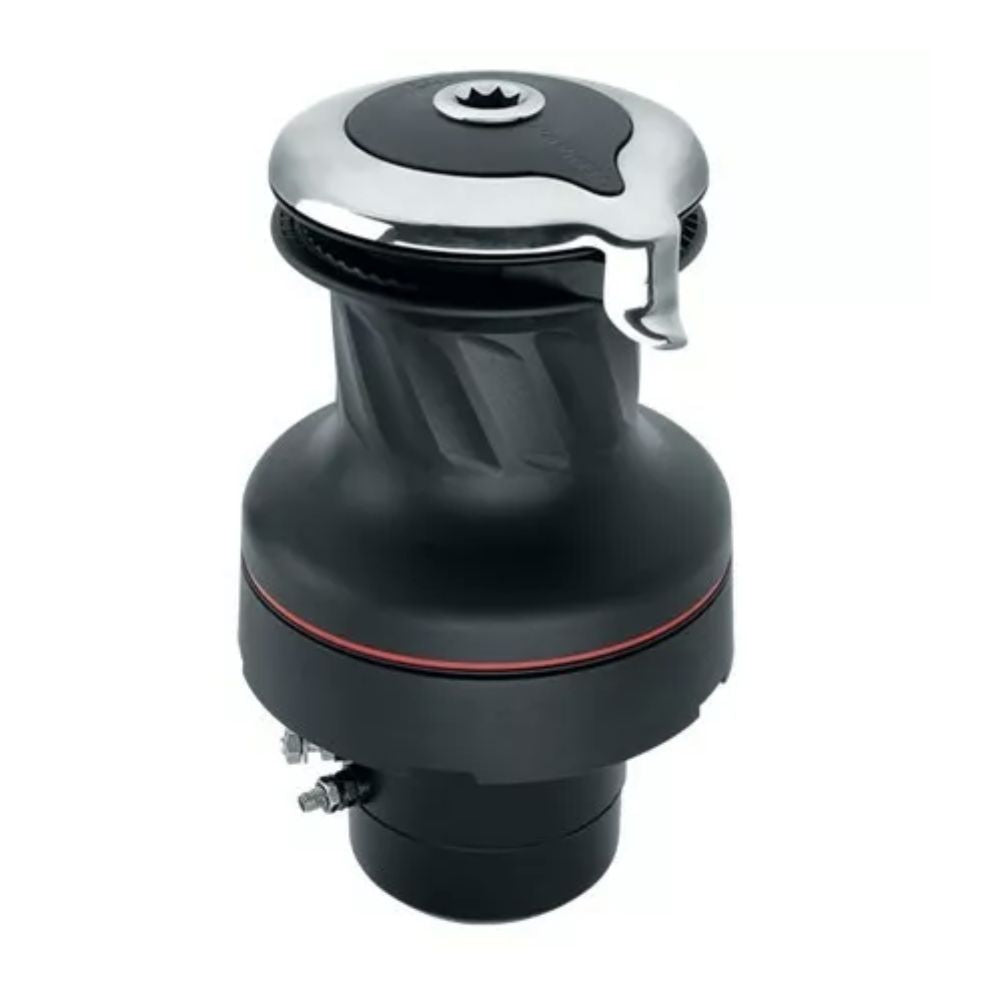

Harken Electric Winch Unipower Size 900 - 12V / Aluminum Black / One Speed Winch / Vertical Mount

$3,870.00 USD $5,160.00

Description

The UniPower is a single-speed winch that combines the advantages of a low-profile manual winch with the power of a 12 or 24 volt, low-amp-draw motor. What makes it unique is that the motor is partially imbedded inside the drum, so that it extends only 105 mm (4 1/8 inches) below the winch base - a critical feature for small boats where space under the cabin top is limited. Composite roller bearings reduce friction under load and don’t require lubrication. Gears are 17-4PH stainless steel for strength and durability. Harken recommends the single function digital switch DSSBK and circuit breaker HCP1717. Sold separately.

Technical Information


DescriptionImperialMetric
Height8 1/2 in.215.00 mm.
Weight26.50 lb.12.00 kg.
Maximum line dia.9/16 in.14.00 mm.
Fasteners5/16 SH in.M8 SH mm.
Number of fasteners5
Fastener circle6 5/16 in.160.00 mm.
Minimum line dia.5/16 in.8.00 mm.
E1 3/8 in.35.00 mm.
F4 1/8 in.105.00 mm.
G5 1/2 in.140.00 mm.
MaterialAluminum
Base dia.7 1/2 in.190.00 mm.
Available powerElectric vertical 12V
Maximum pulling load1984.00 lb.900.00 kg.
ConfigurationSelf-tailing
Speed1
Drum dia.4 3/8 in.110.00 mm.
Line entry height upper3 15/16 in.100.00 mm.
Voltage12
