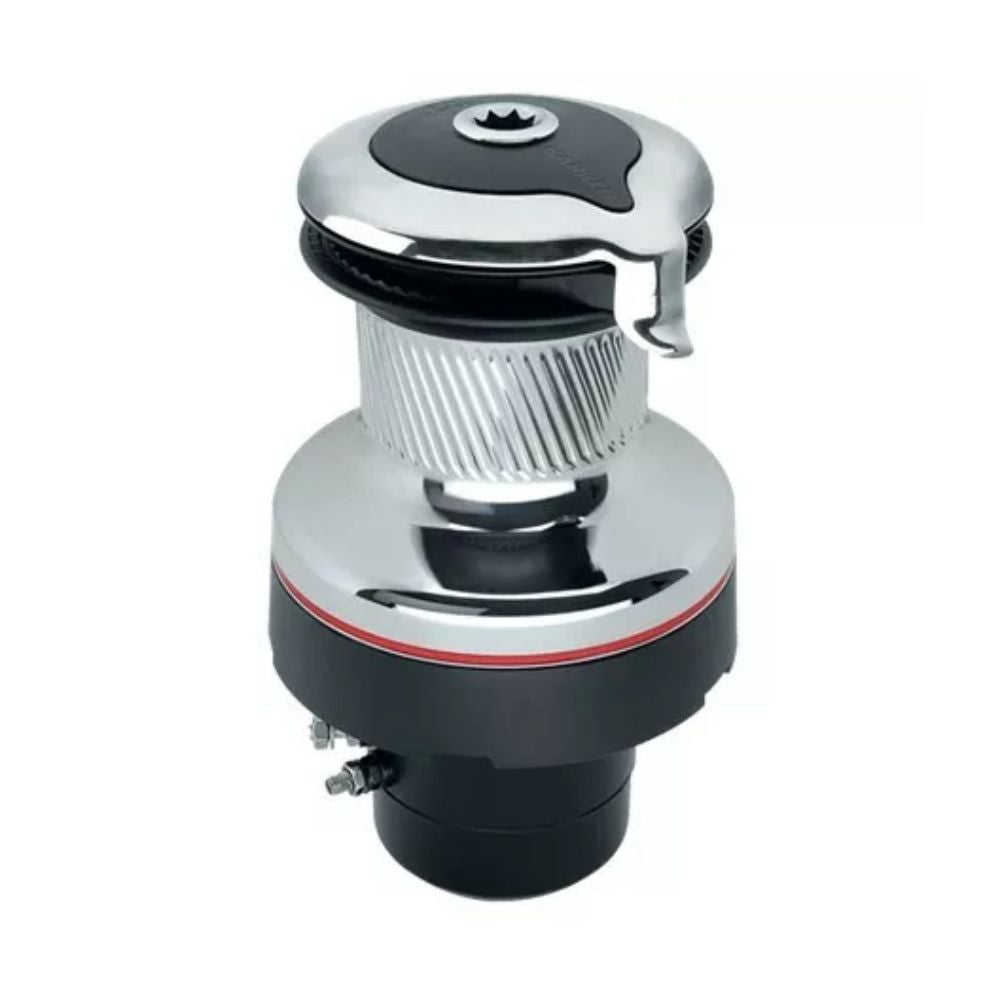

Harken UniPower Radial Winch Chrome 24 Volt w/DFCB
Harken UniPower Radial Winch Chrome 24 Volt w/DFCB is backordered and will ship as soon as it is back in stock.
Description
Description
The UniPower is a single-speed winch that combines the advantages of a low-profile manual winch with the power of a 12-, 24-, or 48-volt, low-amp-draw motor. What makes it unique is that the motor is partially imbedded inside the drum, so that it extends only 105 mm (4 1/8") below the winch base a critical feature for small boats where space under the cabintop is limited.
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Configuration | Self-tailing | |
Speed | 1 | |
Voltage | 24 | |
Material | Chrome | |
Available power | Electric vertical 24V | |
Drum Dia. | 3 9/10 in. | 99.00 mm. |
Base Dia. | 5 7/10 in. | 146.00 mm. |
Height | 7 9/10 in. | 200.00 mm. |
Weight | 18.00 lb. | 8.30 kg. |
Line Entry Height | 3 1/4 in. | 83.00 mm. |
Minimum Line Dia. | 5/16 in. | 8.00 mm. |
Maximum Line Dia. | 9/16 in. | 14.00 mm. |
Fastener circle | 4 8/10 in. | 123.00 mm. |
Fasteners | 1/4 SH in. | M6 SH mm. |
E | 1 7/8 in. | 48.00 mm. |
F | 3.00 in. | 76.00 mm. |
G | 3 5/16 in. | 85.00 mm. |
Maximum pulling load | 1102.00 lb. | 500.00 kg. |
