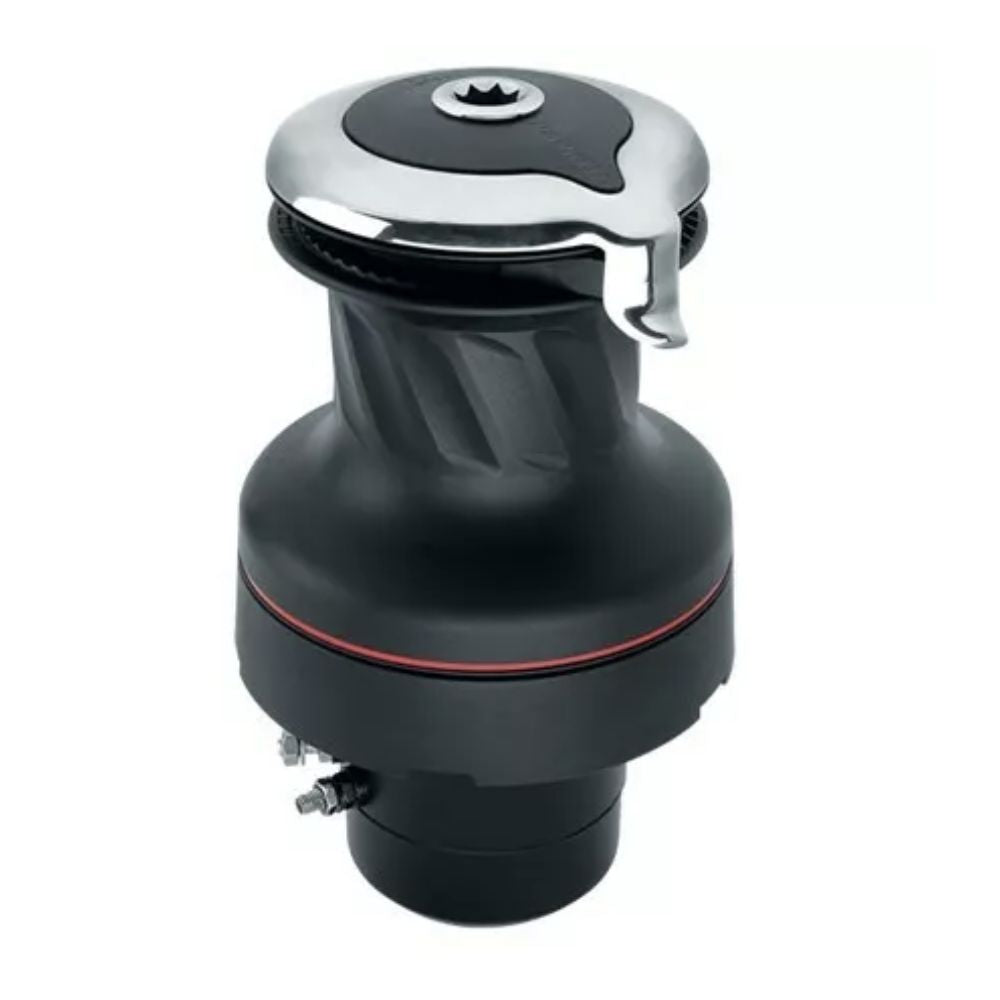

Harken UniPower Radial Winch Alum 12 Volt w/DFCB
Harken UniPower Radial Winch Alum 12 Volt w/DFCB is backordered and will ship as soon as it is back in stock.
Description
Description
The UniPower Radial Winch Alum 12 Volt w/DFCB #12 is a fantastic addition for sailors looking for efficiency and power. It's a single-speed winch that cleverly fits a low-profile design with the technological boost of a 12 volt motor. This makes it perfect for small boats where space is a premium and performance can't be compromised.
Features & Benefits
- Low-profile design
- Efficient 12 volt motor
- Space-saving motor placement
The winch features a motor that is partially embedded inside the drum, extending only 105 mm (4 1/8 in.) below the winch base. This design allows for easy installation even in boats with limited space under the cabintop. The unit combines manual winch benefits with the power and convenience of an electric motor, making it versatile and effective for various sailing needs.
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Height | 7 9/10 in. | 200.00 mm. |
Weight | 15.00 lb. | 6.70 kg. |
Maximum line dia. | 9/16 in. | 14.00 mm. |
Fasteners | 1/4 SH in. | M6 SH mm. |
Fastener circle | 4 8/10 in. | 123.00 mm. |
Minimum line dia. | 5/16 in. | 8.00 mm. |
E | 1 9/10 in. | 48.00 mm. |
F | 3.00 in. | 76.00 mm. |
Material | Aluminum | |
Base dia. | 5 7/10 in. | 146.00 mm. |
Available power | Electric vertical 12V | |
Maximum pulling load | 1102.00 lb. | 500.00 kg. |
G | 3 5/16 in. | 85.00 mm. |
Configuration | Self-tailing | |
Speed | 1 | |
Drum dia. | 3 9/10 in. | 99.00 mm. |
Line entry height upper | 3 1/4 in. | 83.00 mm. |
Voltage | 12 |
