Harken  |  SKU: HAR352STECCC24HLM  |  Manuf. Code: 35.2STECCC24HLM

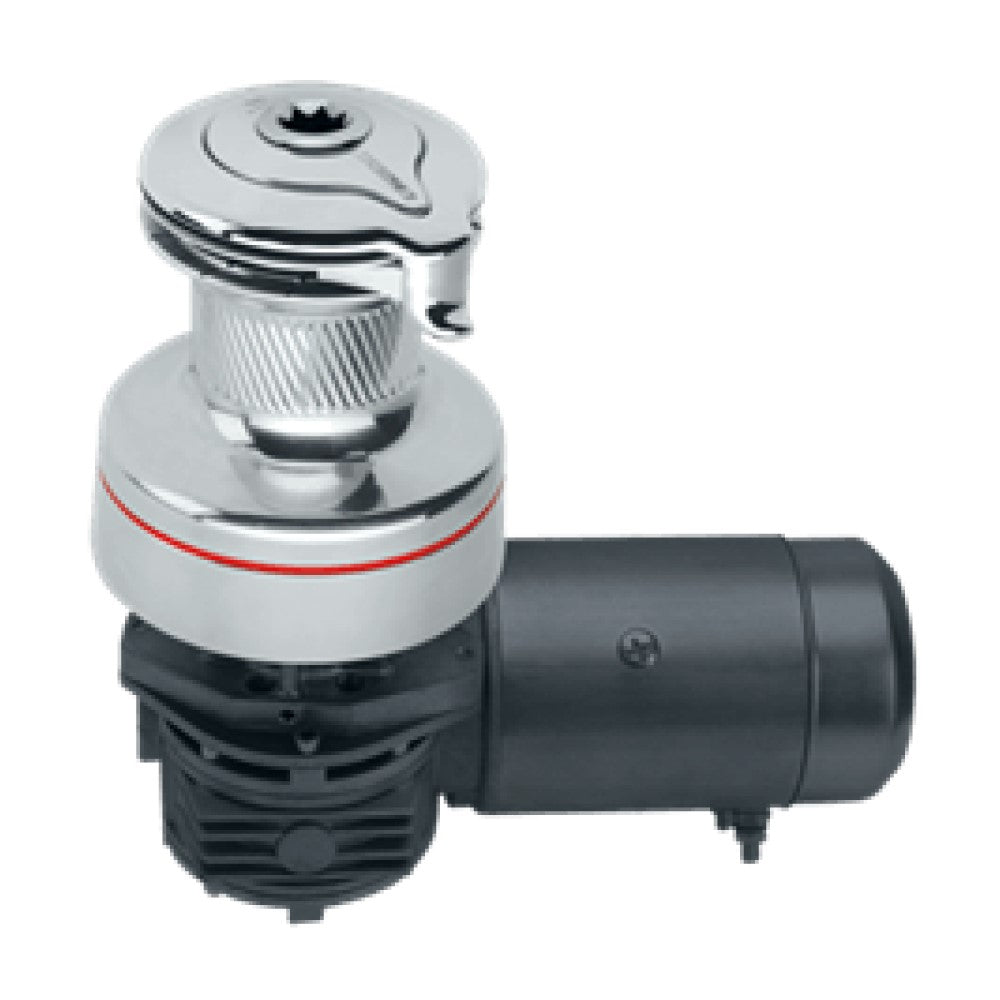

Harken Electric Winch Radial Size 35 - 24V / Chrome All / Two Speed Winch / Left Mount

$4,030.00 USD $5,373.33

Description

Electric Self-Tailing Radial Chromed Bronze Winch.

Electric winches allow crew to trim any size sail with the push of a button. Choices include 1, 2-, and 3-speeds, in self-tailing, shaped or sandblasted grips, standard or wide drums. Available in aluminum, chrome, aluminum/stainless, stainless steel, or bronze, in 12- or 24-volt. Energy-efficient motors accomplish more work per unit of electricity consumed. Motors attach to central drive shaft and drive through winch gears for mechanical advantage.

Harken Radial Line winches have successfully balanced the need for a secure grip and line longevity with smooth, controlled easing while under load. Details sailors will appreciate: smaller winches that carry higher loads and stress-free seasonal maintenance.

Chrome winches combine the elegance of highly-polished finishes with the dependable low-friction pulling power of Harken gearing systems.

Our Part # HAR352STECCC24HLM | Harken Part # 35.2STECCC24HLM

Technical Information


DescriptionImperialMetric
Maximum Line Dia.15/32 in.12.00 mm.
Minimum Line Dia.5/16 in.8.00 mm.
Power900 W900 W

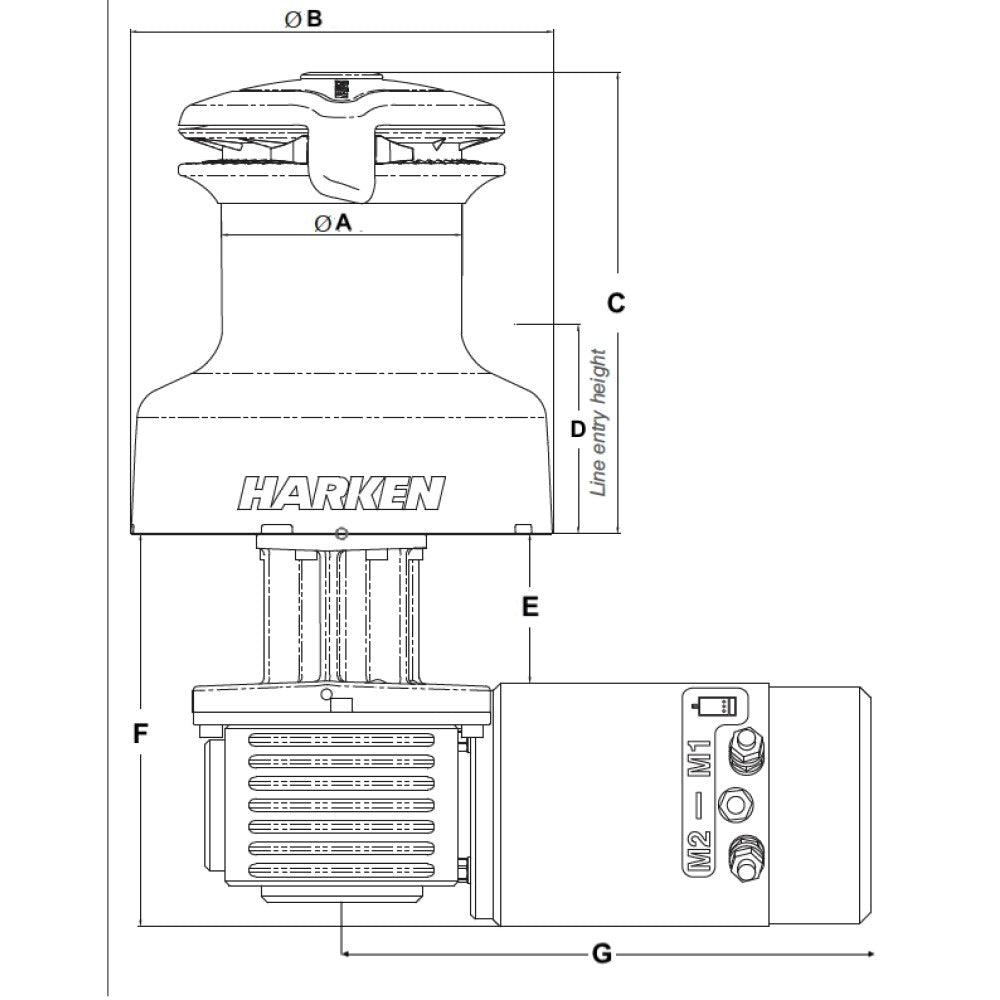

E: Maximum Deck Thickness1 11/16 in.43.00 mm
Voltage24 V24 V
Line recovery per rotation - 1st gear4 11/16 in.119.00 mm.
Line recovery per rotation - 2nd gear1 49/64 in.45.00 mm.
B: Base Dia.5 55/64 in.149.00 mm.
A: Drum Dia.3 11/64 in.80.50 mm.
C: Height6 11/16 in.170.00 mm.
D: Line Entry Height3 5 /32 in.80.00 mm.
F: Motor Depth6 7/64 in.155.00 mm
G: Motor Length8 15/16 in.227.00 mm.
Gears (Manual)2-Speed2-Speed
Speed (Motor)2-Speed2-Speed
MountRight-Hand or Left-Hand MountRight-Hand or Left-Hand Mount
Weight33.51 lb.15.20 kg.
Gear Ratio 1 (X:1)2.132.13
Gear Ratio 2 (X:1)5.655.65
Power Ratio 1 (X:1)35.913.5
Power Ratio 2 (X:1)35.913.5
Maximum Pulling Load1433.00 lb.650.00 kg.
Line Speed - 1st gear95 ft. 9.61 in./min29.20 m/min.
Line Speed - 2nd gear36 ft. 1.07 in./min11 m/min
