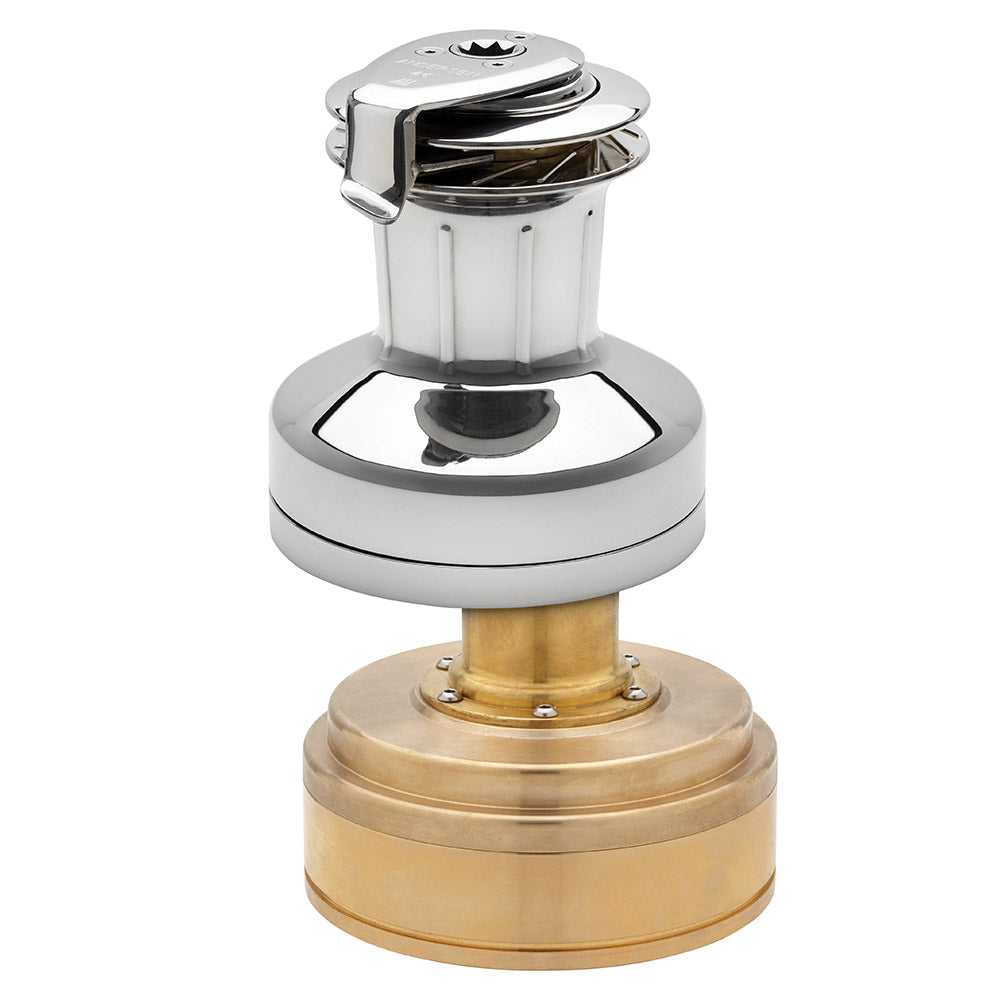

Andersen Electric Winch Size 46 - 24V / Stainless Steel / Two Speed / Below Deck / Compact Motor
Andersen Electric Winch Size 46 - 24V / Stainless Steel / Two Speed / Below Deck / Compact Motor is backordered and will ship as soon as it is back in stock.
Description
Description
If you desire the convenience of electric winches but have limited below-deck space or require mast-mounted installation, Andersen Compact Motor Electric Winches are the perfect choice. They use a new highly compact variable-speed motor that was developed especially with the size and shape of a winch in mind. With its highly efficient power consumption, impressive line speed and high-load capacity, this small but powerful motor is the perfect power source for difficult winch placement.
Our Part # AND2046014200 | Mfr. Part # RA2046014200
Features
Features
- Compact in design integrating motor, gears and power controls into one unit
- Impressive line speed and first rate maximum load
- Easy to install and compatible with the Andersen Modular Power System
- Winch mounted directly on the motor
- Motor built without carbon brushes eliminates wear and tear
- 30-50% less power consumption compared to conventional electric motors
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Drum Dia.(D) | 3 1/2 in | 89.0 mm |
Base Dia.(B) | 7 1/16 in | 18.0 cm |
Height (H) | 8 1/4 in | 209.0 mm |
Line Entry (L) | 3 9/16 in | 90.0 mm |
Line size | 5/16 - 9/16 in | 8.0 - 14.0 mm |
Weight | 46.3 lb | 21.0 kg |
Max Deck Thickness (K) | 2 7/16 in | 62.0 mm |
Motor Depth (J) | 7 3/8 in | 188.0 mm |
Motor Dia. (S) | 7 11/16 in | 19.5 cm |
