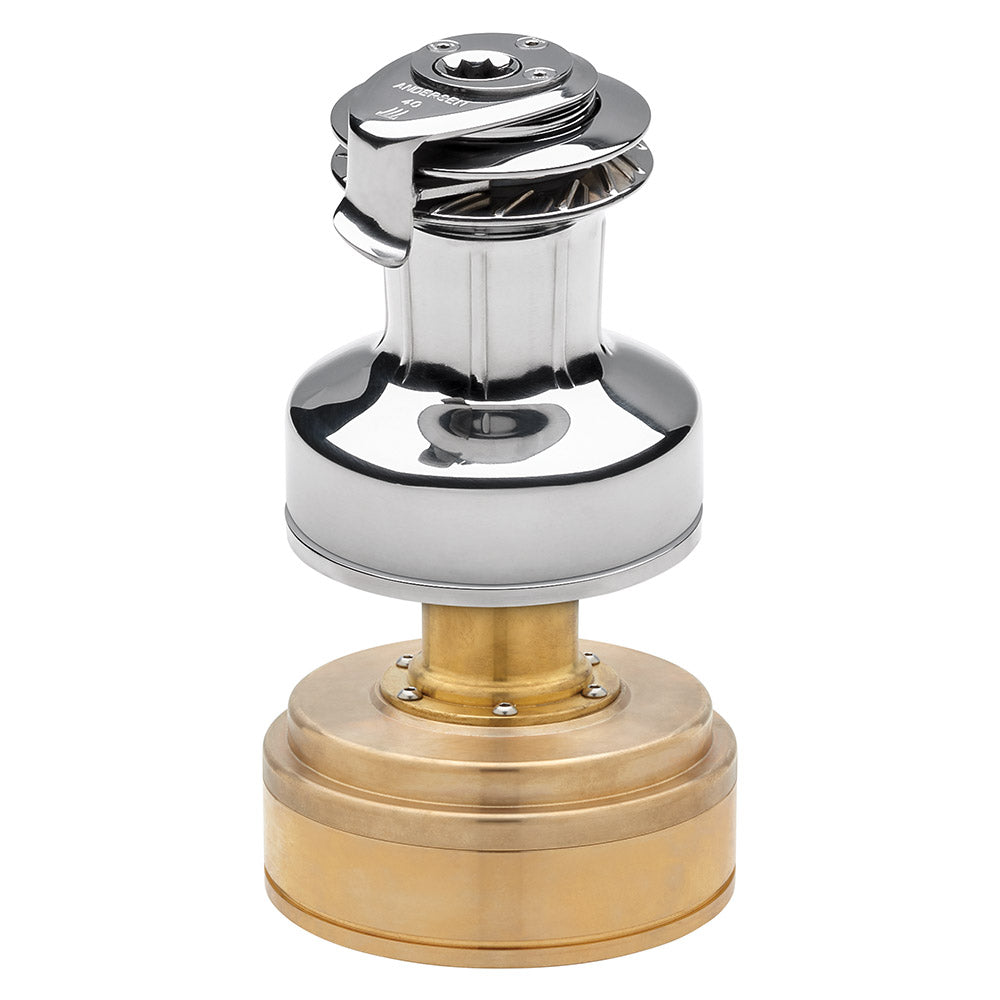

Andersen Electric Winch Size 40 - 12V / Stainless Steel / Two Speed Winch / Below Deck / Compact Motor
Andersen Electric Winch Size 40 - 12V / Stainless Steel / Two Speed Winch / Below Deck / Compact Motor is backordered and will ship as soon as it is back in stock.
Description
Description
If you desire the convenience of electric winches but have limited below-deck space or require mast-mounted installation, Andersen Compact Motor Electric Winches are the perfect choice. They use a new highly compact variable-speed motor that was developed especially with the size and shape of a winch in mind. With its highly efficient power consumption, impressive line speed and high-load capacity, this small but powerful motor is the perfect power source for difficult winch placement.
Our Part # AND2040014100 | Andersen Part # RA2040014100
Features
Features
Features:
- Compact in design integrating motor, gears and power controls into one unit
- Impressive line speed and first rate maximum load
- Easy to install and compatible with the Andersen Modular Power System
- Winch mounted directly on the motor
- Motor built without carbon brushes eliminates wear and tear
- 30-50% less power consumption compared to conventional electric motors
Knowledge Base
Knowledge Base
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Drum Dia.(D) | 2 15/16 in. | 75.00 mm. |
Base Dia.(B) | 6.00 in. | 152.00 mm. |
Height (H) | 7 3/16 in. | 183.00 mm. |
Line Entry (L) | 3 1/8 in. | 79.00 mm. |
Line Size | 5/16 - 9/16 in. | 8.00 - 14.00 mm. |
Weight | 40.00 lb. | 18.00 kg. |
Max Deck Thickness (K) | 1 15/16 in. | 49.00 mm. |
Motor Depth (J) | 7 3/16 in. | 183.00 mm. |
Motor Dia. (S) | 7 13/16 in. | 190.00 mm. |
