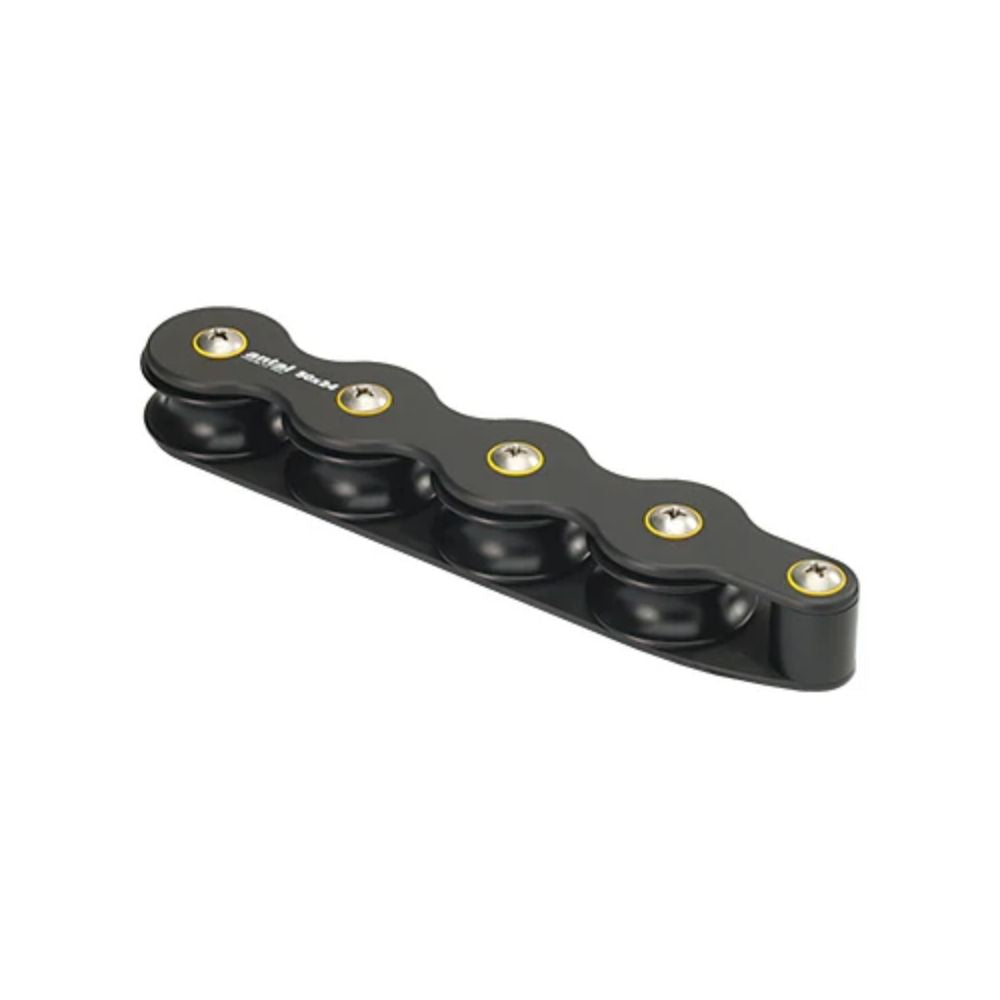

Antal Deck Organizer - 4 Sheaves D40 - Dia: 1 9/16 in (40 mm)

Organizer with 4 sheaves Ø 40, SWL 800 kg.

Groups of 2 to 6 sheaves in 4 diameters of 40, 50, 60 and 70 mm.

The 40 and 50 mm sheaves are manufactured in high-strength resin with a double side ball bearing. The 60 and 70 mm sheaves are manufactured in aluminium, hard black anodized, with a main composite fibre bearing and two side ball bearings. Double version also available, just add /D to the model number. Mounting screws, nuts and washers included.

Our Part # ANTD440 | Antal Part # D440

Length: 199 mm
Height: 31 mm
No. sheaves: 4
Sheave: 40 mm
Side bearing: Delrin balls
Weight: 330 g
Max line: 14 mm
B: 44 mm
SWL: 600 kg
Material: Aluminum
Sheave material: Plastic
Fixing screws: 5 x 6 mm
