Boomkicker Rigid Boom Vang - Inc. Fittings - Boat Size: 27 ft (8.2 m) to 30 ft (9.1 m)

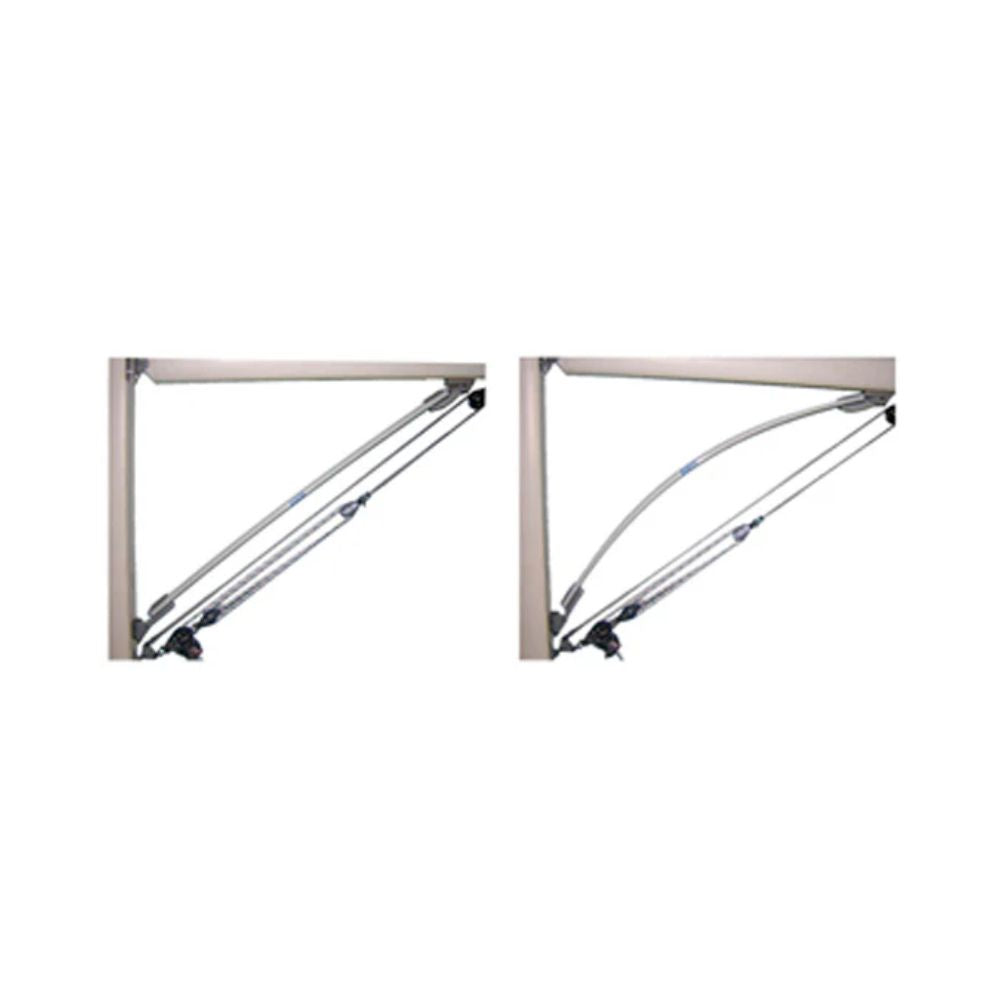

Boomkickers use two coated solid fiberglass spring rods to provide the force necessary to support the boom and mainsail.

The rods are clamped into teflon anodized aluminum end pieces and attached to universal mast and boom fittings. Fittings are included along with machine screw fasteners, the proper drill and tap and hex wrench. The mast fitting includes a round slide which, used in the luff groove, avoids drilling into the mast.

Flat slides in varying widths are available from the factory. The slides can often be inserted at the sail opening above the gooseneck and slid down reassembling the fitting in position. If slides are not usable, the fitting can be attached directly to the mast using the same drill and tap provided for the boom.

The custom extruded boom track is contoured to fit both round and flat bottom booms. The track has an adjustable clevis pin to set the maximum height the Boomkicker will lift the boom. The track length forward of the pin allows the boom to move higher if needed.

Boomkicker K1000: Includes mast fitting with round luff groove slide, Boomkicker with 5/8 in diameter spring rods, boom fitting track assembly and fastener pack with screws, drill, tap and hex wrench.

Fits Boats: 27 ft to 30 ft.

Part Number: K01000

Our Part # BOOK1000 | Boomkicker Part # K1000

Initial Pin to Pin: 114.3 cm
Minimum Pin to Pin: 104.1 cm
Maximum Force *: 181 kg
Maximum Stroke 1: 38 cm
Maximum Stroke 2 **: 15.3 cm
