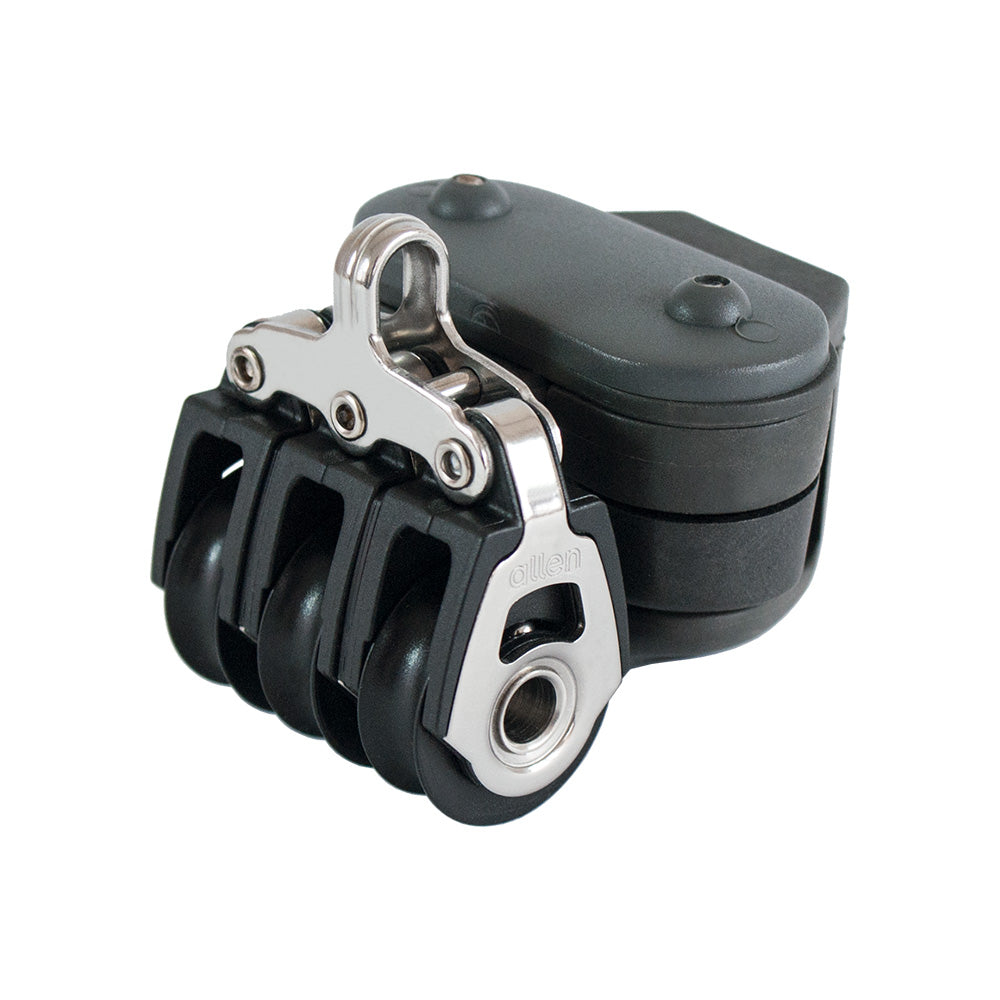

Allen 30 mm Dynamic Triple Block with Inverted Cleat
SKU:
ALL-A2034-676
|
Manuf. Code:
A2034-676
10% off
Unit price
/
Unavailable
Allen 30 mm Dynamic Triple Block with Inverted Cleat is backordered and will ship as soon as it is back in stock.
This product ships from the UK. Lead-time: 5-7 days.
Description
Description
30mm Triple Dynamic Block With Inverted Cleat.
Triple blocks are generally used in systems such as cunninghams or vangs, to give a larger purchase system.
Our Part # ALL-A2034-676 | Allen Part # A2034-676
Features
Features
Features:
- Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.
- Ultra-Strap: Our patented Ultra-Strap is used in our 20, 30 & 40mm Dynamic blocks. The Ultra-Strap is unique when compared to other designs because of its coining process. This process strengthens the strap, making it more reliable and hard-wearing as well as making it much more rope friendly than other designs. The Ultra-Strap was the first marine industry block designed to work specifically with a rope attachment.
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Breaking load | 3858.75 lbs. | 1750.00 kg. |
Length | 2 5/9 in. | 65.00 mm. |
Maximum line diameter | 1/3 in. | 8.00 mm. |
Maximum working load | 926.10 lbs. | 420.00 kg. |
Weight | 1.73 oz. | 49.00 g. |
