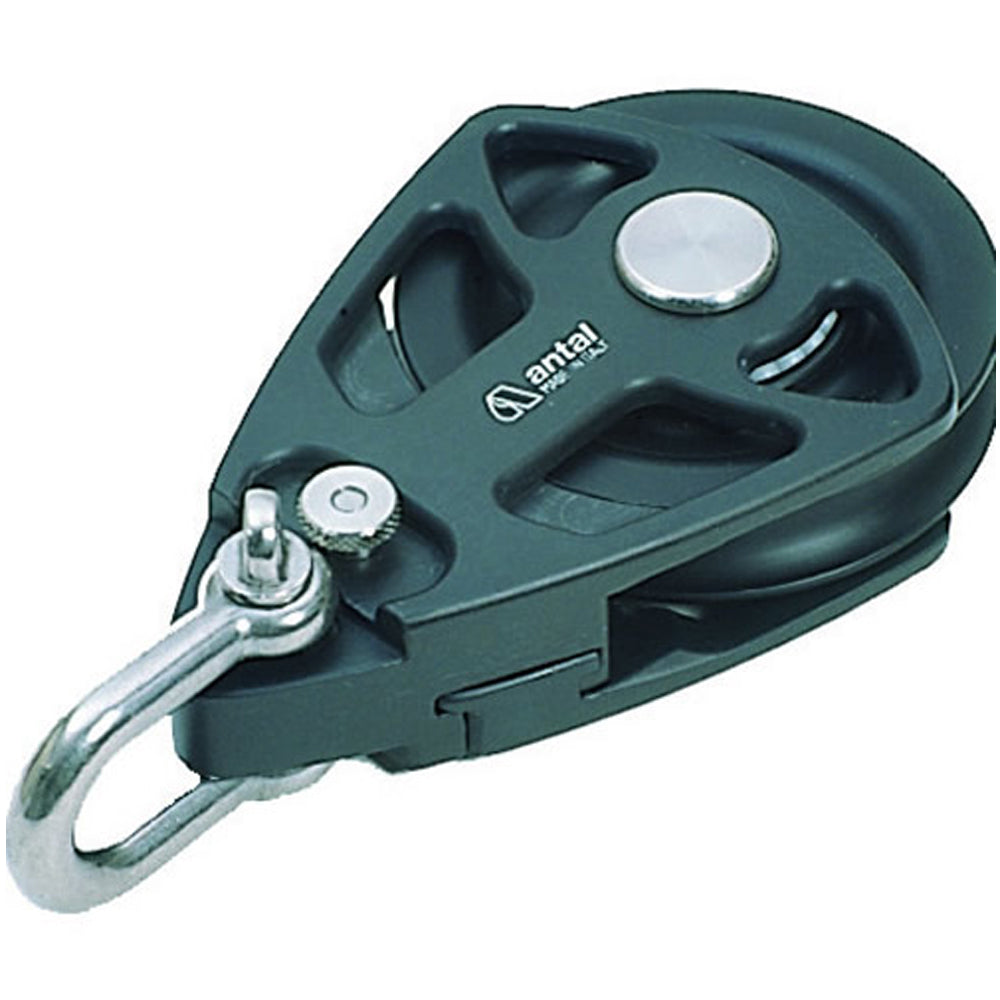

Antal Snatch Block 90 mm w/ Shackle
Antal Snatch Block 90 mm w/ Shackle is backordered and will ship as soon as it is back in stock.
Description
Description
Snatch Block Sheave Dia. 90mm Max. Line Diameter 16mm: The cheekplate revolves around the sheave axle allowing the block to open; a safety pin, which engages automatically on closing, stops the block from opening accidentally. The block can be attached with webbing or better still with a fine highly resistant line made of material such as Kevlar or Spectra.
High-strength resin (HRM) is used for sheaves, cheekplates are hard anodized alloy, structural pins are high-strength stainless steel (17-4-PH).
Part Number: 908.125/SH.
Our Part # ANT908095SH | Mfr. Part # 908.095/SH
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Sheave Diameter | 3 1/2 in. | 90.00 mm. |
Line Diameter | 5/8 in. | 16.00 mm. |
Safe Working Load | 5512.50 lb. | 2500.00 kg. |
Weight | 11.15 oz. | 330.00 gr. |
