Antal Snatch Block 90 mm
SKU:
ANT908095
|
Manuf. Code:
908.095
10% off
Unit price
/
Unavailable
Antal Snatch Block 90 mm is backordered and will ship as soon as it is back in stock.
Special Order Item: 8 - 10 weeks.
Description
Description

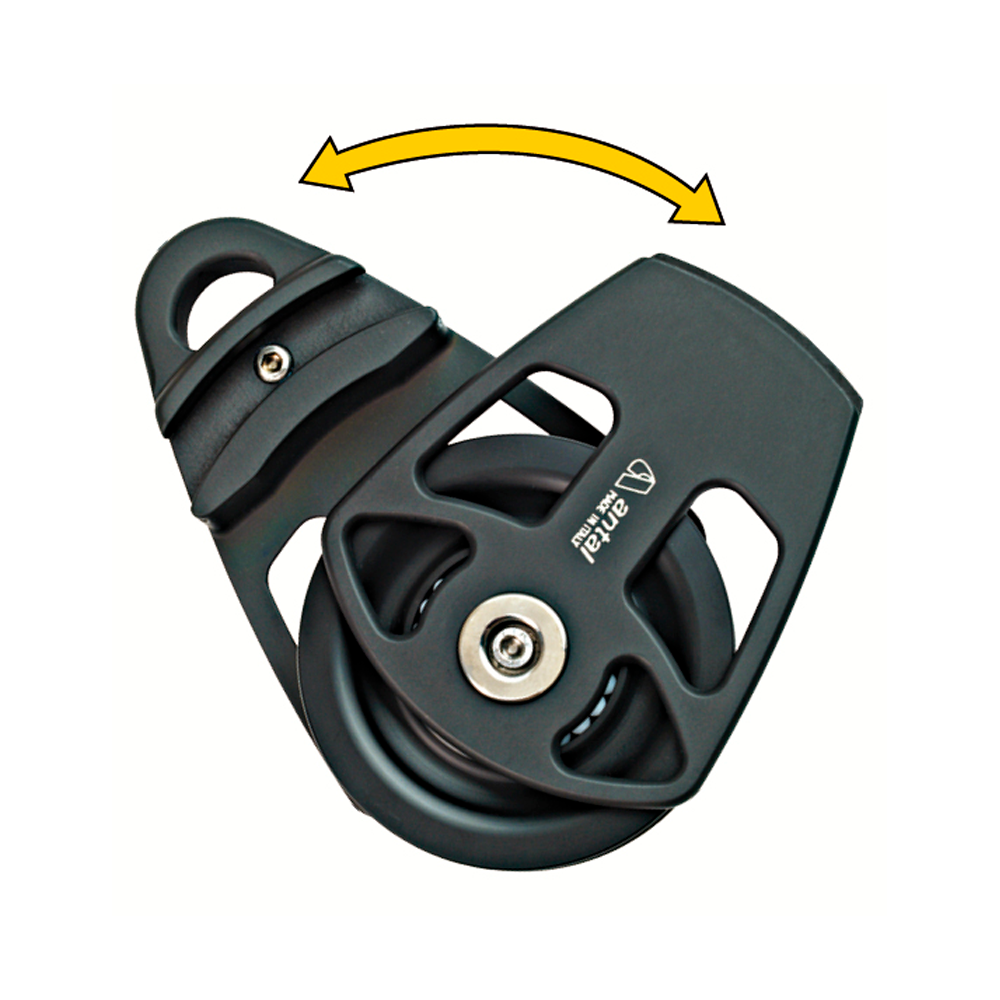

Snatch block, sheave Ø 90, SWL 2500 kg.
The cheekplate revolves around the sheave axle allowing the block to open; a safety pin, which engages automatically on closing, stops the block from opening accidentally. Materials: high-strength resin sheaves, hard anodized alloy cheekplates.
Our Part # ANT908095 | Mfr. Part # 908.095
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Sheave Diameter | 3 1/2 in. | 90.00 mm. |
Side bearing | Delrin balls | |
Radial bearing | Composite fibre | |
Weight | 14.46 oz. | 410.00 gr. |
Max line | 5/8 in. | 16.00 mm. |
Safe Working Load | 5512.50 lb. | 2500.00 kg. |
