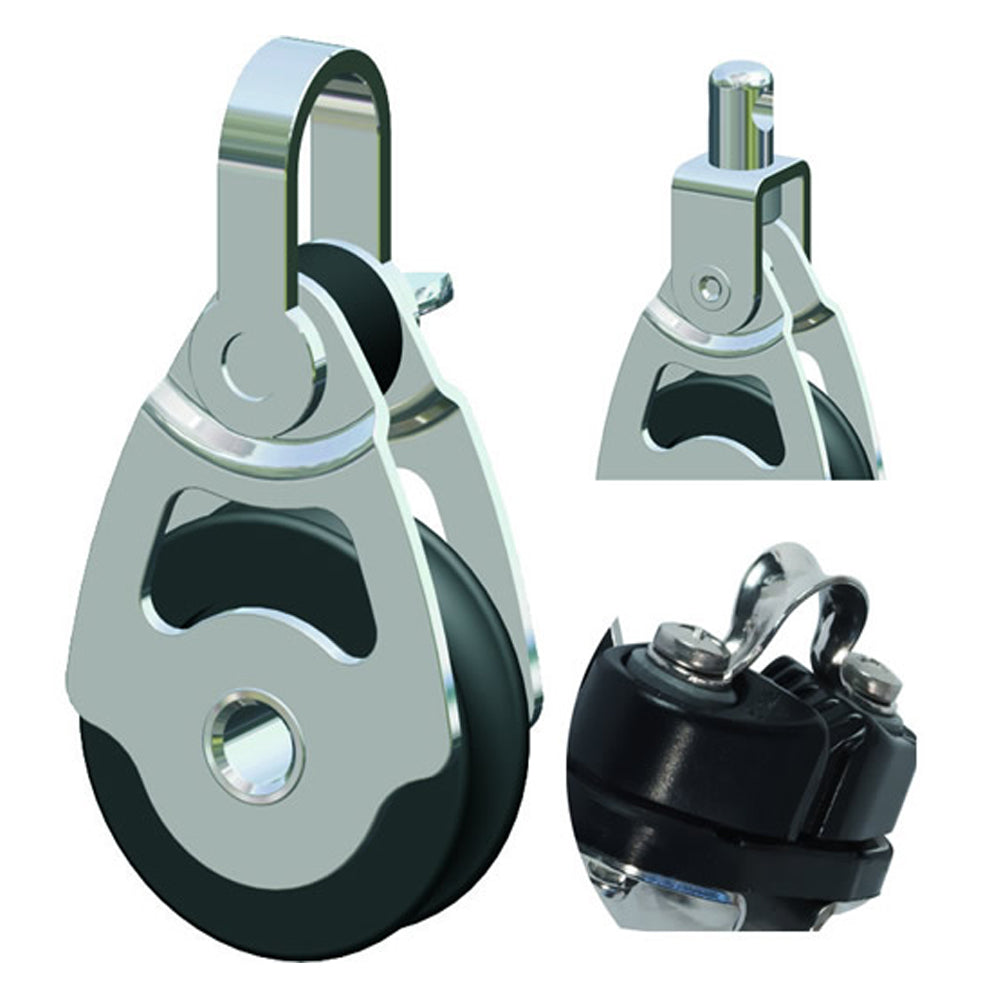

Antal Mini Block 34x6 Series - Single Swivel Shackle w/ Cleat

SKU: ANT00301CSW  |  Manuf. Code: 00301/CSW
List Price:  105.00 USD
$89.90 USD
Special Order Item: 8 - 10 weeks.

Description

S.steel mini blocks, single block, sheave 34. SWL 400 kg Available with cam cleat (Mod. 00301/C)This series offers extremely high working loads (SWL: 34x6 = 400 kg, 40x8 = 500 kg) while still compact and lightweight.

The sheave is made of resin with a double lateral ball-bearing. Cheekplates are made of perfectly polished AISI 316 stainless steel. The high quality materials guarantee a maintenance-free product. Resin sheave with double self-captive ball bearings.

Our Part # ANT00301CSW | Antal Part # 00301/CSW

Technical Information


DescriptionImperialMetric
Sheave Diameter11/32 in.34.00 mm.
Load Limit880.00 lb.400.00 kg.
Weight3.56 oz.101.00 gr.
Line Size1/4 in.6.00 mm.
Cleat Load Limit176.00 lb.80.00 kg.
Head Load Limit880.00 lb.400.00 kg.
