Allen 60 mm Quintuple Block with Becket
SKU:
ALL-A2069B
|
Manuf. Code:
A2069B
10% off
Unit price
/
Unavailable
Allen 60 mm Quintuple Block with Becket is backordered and will ship as soon as it is back in stock.
This product ships from the UK. Lead-time: 5-7 days.
Description
Description

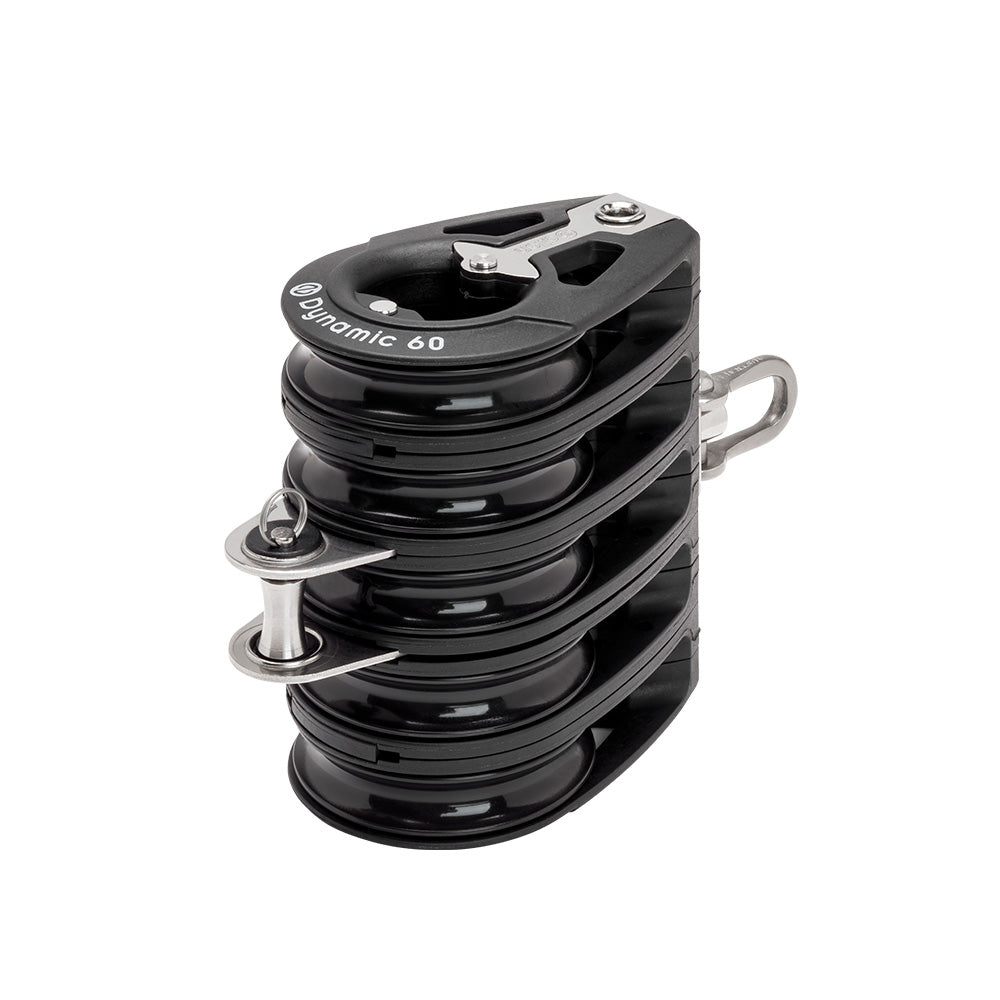

60mm Quint Dynamic Block With Becket.
Designed for use as a low friction mainsheet system on sports catamarans, but suitable for many other applications including backstay tensioning on keelboats.
Our Part # ALL-A2069B | Allen Part # A2069B
Features
Features
Features:
- Bearings:Â Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.
- Swivel Lock:Â The A2069B comes with a removable swivel lock moulding. When installed, the shackle can be locked in 90-degree orientations. When removed, the attachment shackle can spin freely.
- Becket:Â This pulley features a central becket between the sheaves. The becket can be removed by undoing the split ring. This allows for easy termination of a spliced rope or the addition of another block to increase the purchase system.
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Breaking load | 2756.25 lbs. | 1250.00 kg. |
Length | 6.00 in. | 150.00 mm. |
Maximum line diameter | 1/2 in. | 12.00 mm. |
Maximum working load | 1323.00 lbs. | 600.00 kg. |
Weight | 19.58 oz. | 555.00 g. |
Shackle pin | 1/6 in. | 6.00 mm. |
