Allen 50 mm Quintuple

SKU: ALL-A2059  |  Manuf. Code: A2059
$280.00 $252.00 USD
This product ships from the UK. Lead-time: 5-7 days.

Description

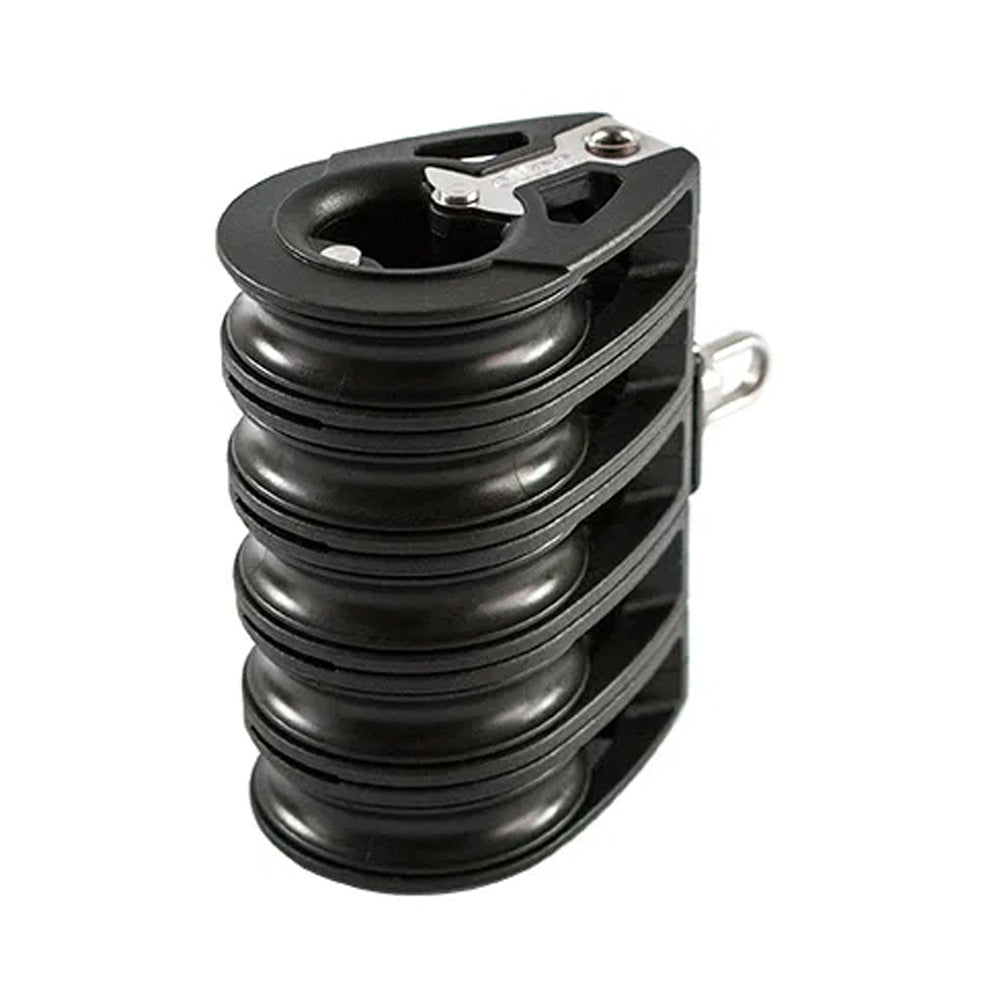

50mm Quint Dynamic Block.

Designed for use as a low friction mainsheet system on sports catamarans, but suitable for many other applications including backstay tensioning on keelboats.

Our Part # ALL-A2059 | Allen Part # A2059

Features

Features:

  • Bearings: Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems available on the market.
  • Swivel Lock: The A2059 comes with a removable swivel lock moulding. When installed, the shackle can be locked in 90-degree orientations. When removed, the attachment shackle can spin freely.
  • Becket: A large central hole not only reduces the overall weight of the block but also offers a rope friendly attachment point.

Technical Information


DescriptionImperialMetric
Breaking load1102.50 lbs.950.00 kg.
Length4.00 in.100.00 mm.
Maximum line diameter2/5 in.10.00 mm.
Maximum working load1036.35 lbs.470.00 kg.
Weight11.39 oz.323.00 g.
Shackle pin1/5 in.5.00 mm.
