Description

Ball bearing blocks are used where the loads are more moderate and dynamic. The ball bearings provide for good sheave rotation with the lowest possible friction. Available in 20, 30, 40 and 60 mm sheave diameters.

• Stainless steel ball bearing races, stainless steel ball bearings and Acetal sheave for best bearing strength even under high dynamic loads
• Acetal bearing cage to prevent ball-to-ball friction and to reduce weight.
• Glass fibre reinforced composite.

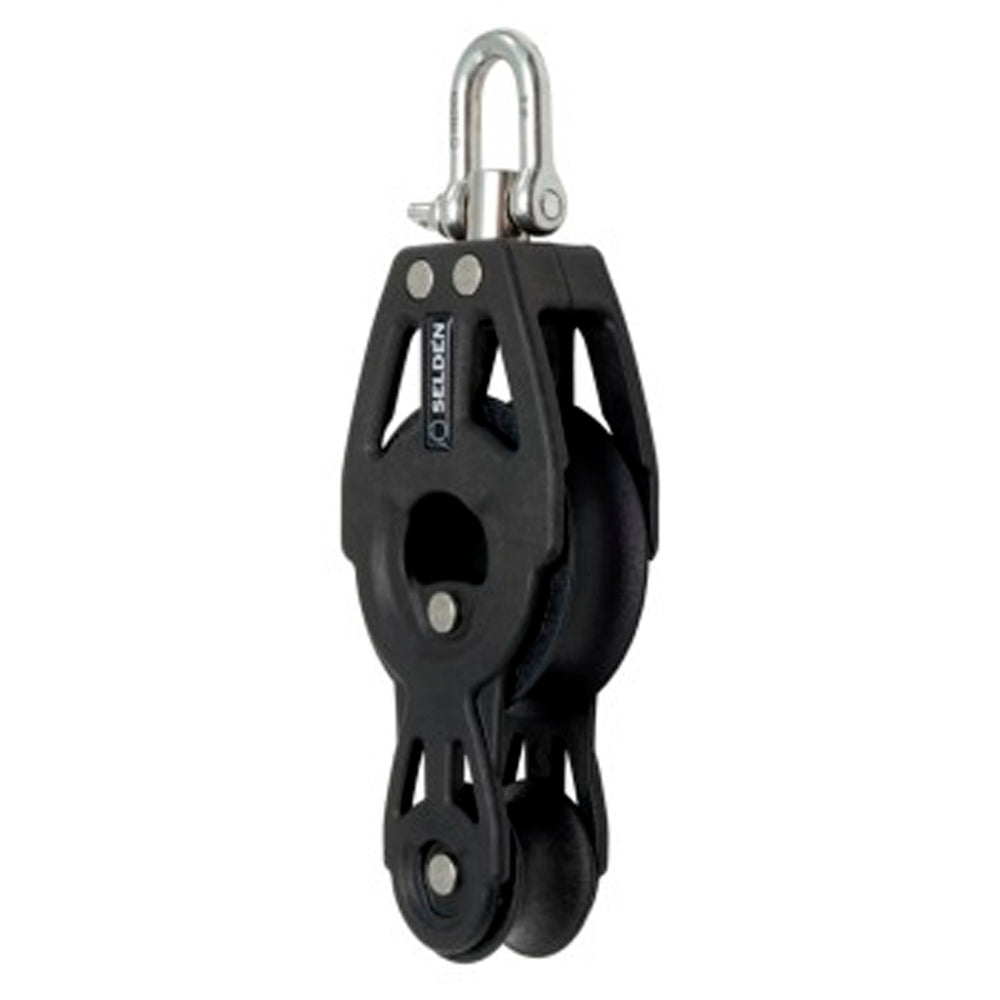

Our Part # SEL40410112R | Selden Part # 404-101-12R

Technical Information

Type: Fiddle Swivel/Fixed
Weight: 66 g
Safe Working Load: 250 kg
Breaking Load: 500 kg
Width: 10 mm
Shackle Diameter: 4 mm
