Barton Marine  |  SKU: BAM-N03-631  |  Manuf. Code: N03 631

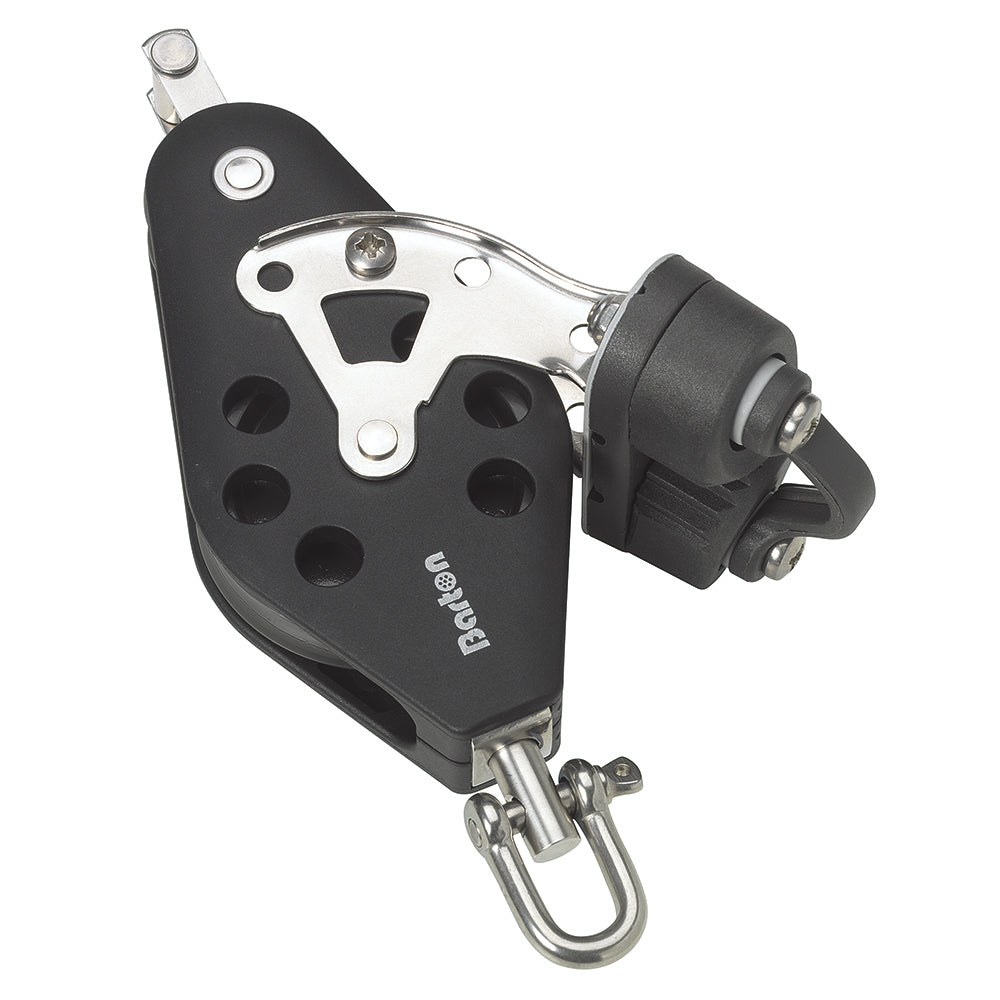

Barton Marine Series 3 Fiddle, Swivel, Becket, and Cam Block - 45mm

$68.99 USD $86.24

Description

A strong, lightweight range of blocks for use on dinghies, day boats and light cruising yachts. Ideal for mainsheet, vang, lead blocks or wherever a powerful and compact purchase tackle is required.

A comprehensive range of cam cleat, fiddle and fiddle & cam cleat versions are available.

Plain bearing blocks

Barton plain bearing blocks have a precision moulded acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

Ball bearing blocks

With our unique super-low friction ball race systems, featuring acetal sheaves and delrin ball bearings, running on a large diameter centre boss. This allows us to fit more load-bearing balls, which ensure extremely low friction performance, even under high loads.

Our Part # BAM-N03-631 | Barton Marine Part # N03 631

Technical Information


DescriptionImperialMetric
Sheave size1 3/16 x 2 1/4 x 1/2 in.30.00/58.00 x 13.00 mm.
Max rope diameter3/8 in.10.00 mm.
Safe working load881.00 lb.400.00 kg.
Break Load1763.00 lb.800.00 kg.
Max rolling load595.00 lb.270.00 kg.
Length6 1/2 in.165.00 mm.
Weight Plain7.83 oz.222.00 g.
Weight Ball8.01 oz.227.00 g.
