10% off

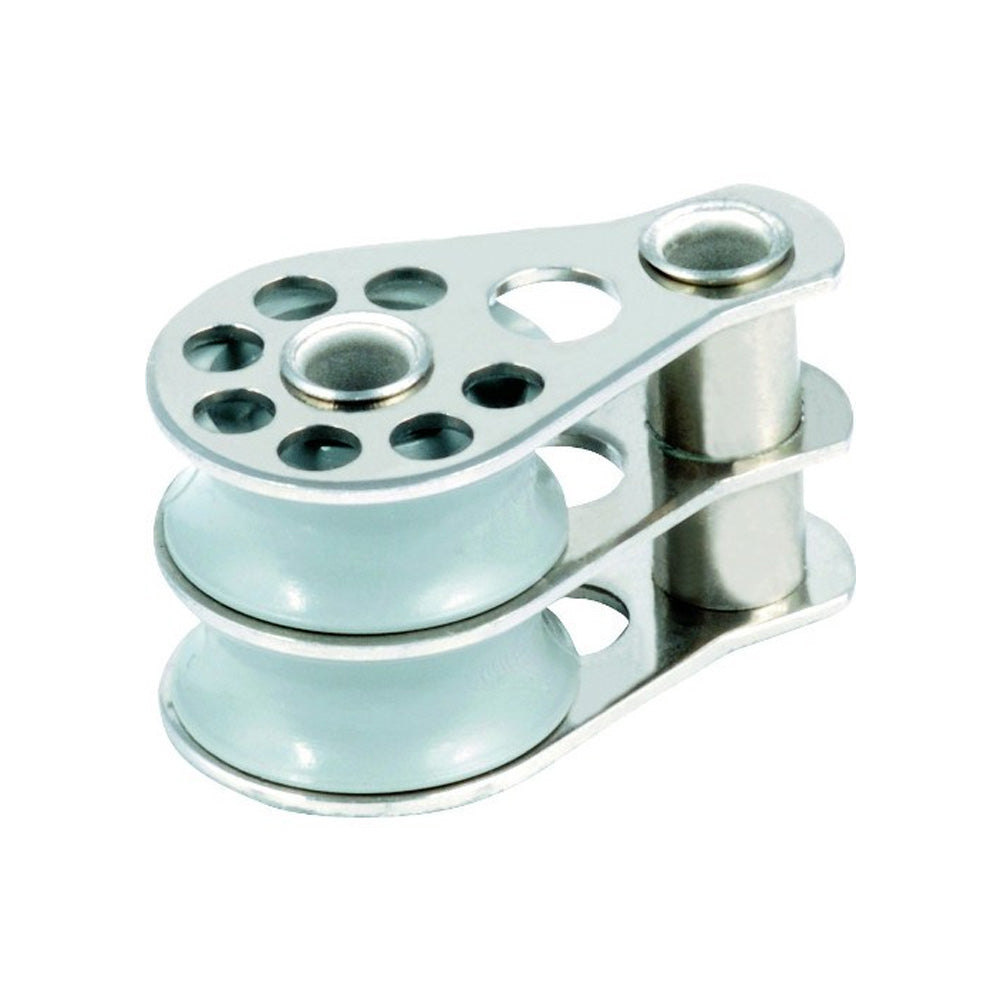

Allen 16 mm Double Acetal Sheave Block
$14.00 USD
$15.56
Unit price
/
Unavailable
Allen 16 mm Double Acetal Sheave Block is backordered and will ship as soon as it is back in stock.
This product ships from the UK. Lead-time: 5-7 days.
Description
Description
16mm Double Plain Bearing Block With Acetal Sheave.
Designed to be lightweight and cost-effective. Ideal for low loaded systems, such as control line bungee take-ups or rope guides.
Our Part # ALL-A4081 | Allen Part # A4081
Features
Features
Features:
- Plain Bearing:Â The acetal sheave spins around the central axle. This type of bearing has a long lifespan and is very low maintenance.
- Lightweight Strap:Â The body of this block is formed in stainless steel for a lightweight yet robust frame.
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Breaking load | 275.00 kg. | 606.38 lbs. |
Length | 30.00 mm. | 1 1/6 in. |
Maximum line diameter | 5.00 mm. | 1/5 in. |
Sheave diameter | 16.00 mm. | 5/8 in. |
Weight | 10.00 g. | 0.35 oz. |
To suit shackle pin | 4.00 mm. | 1/6 in. |
