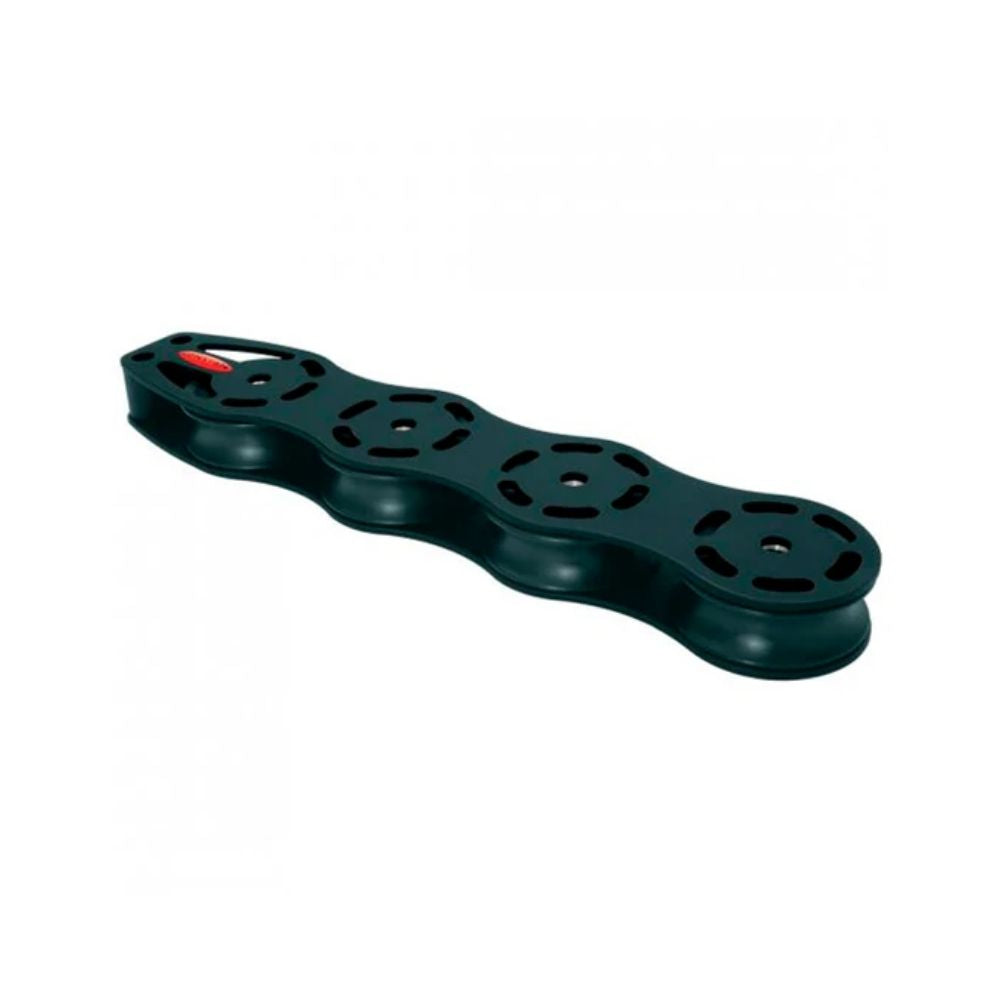

Description

Applications:

• Line deflection on larger yachts (depending on load and angle of deflection).
• Halyard and control line deflection on boats to 14m (46ft).

Materials:

• Cheek plates: Anodised aluminium.
• U.V. stabilised Acetal sheaves.
• Grade 316 stainless steel hubs.

Our Part # RONRF61841 | Mfr. Part # RF61841

Features

• Light Weight: design with cheek cut outs for easy bearing maintenance.
• Through hub mounting for maximum strength.
• All-purpose bearing system provides maximum static load capacity.

Technical Information

Sheave Diameter: 60 mm / 2 3/8 in
Max. Rope Diameter: 14 mm / 9/16 in
Fastener Diameter: 8 mm / 5/16 in
Maximum Working Load: 1000 kg / 2200 lb
Breaking Load: 2000 kg / 4410 lb
Weight: 511 g / 18 oz
