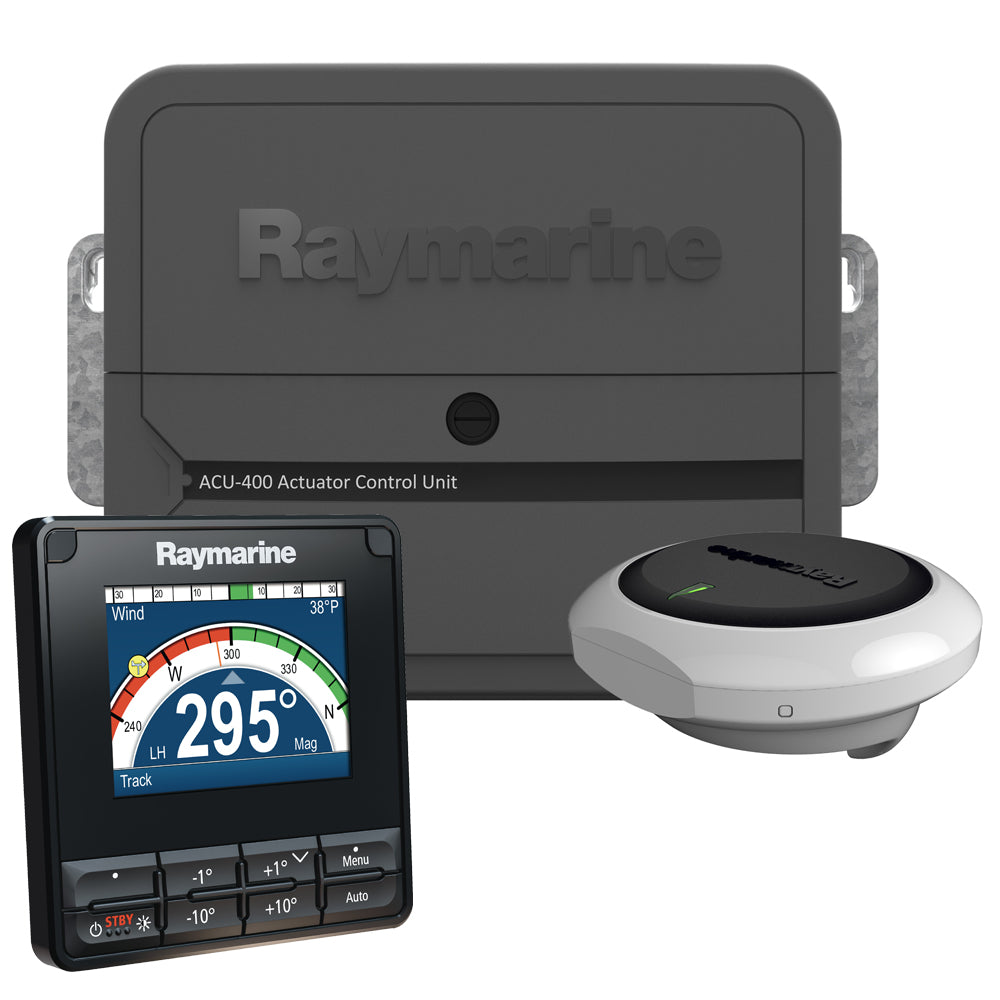

Raymarine EV-400 Sail Evolution Complete Autosystem Pilot

SKU: RAY-T70161  |  Manuf. Code: T70161
$3,757.89 $3,257.70 USD

Description

The Raymarine EV-400 Sail Evolution Complete Autosystem Pilot #T70161 is perfect for sailors looking to enhance their navigation with precision and ease. This compact system offers a seamless integration of advanced technology in a straightforward setup. Whether you're a seasoned sailor or just starting out, this system brings reliability to every journey.

Features & Benefits

  • Intelligent 9-axis EV sensor core for monitoring vessel motion in three dimensions.
  • Fully sealed, rugged enclosure meeting IPX6 and IPX7 waterproofing standards.
  • Compatible with Evolution mechanical and hydraulic autopilot systems.
  • Simple SeaTalkng networking for easy power and data connection.
  • p70 push-button autopilot control head designed for sailboats.
  • ACU-400 provides reliable autopilot drive power and bus power.
  • Includes a complete Evolution cabling kit for seamless installation.

The EV sensor core can be mounted above or below decks and is designed to withstand harsh marine conditions. This system includes a p70 control head, ideal for sailboat operations, and the ACU-400 unit to deliver consistent power to your autopilot system. The included cabling kit ensures you have everything needed to connect to SeaTalkng and NMEA2000 networks.

Usage

Ideal for sailors looking to automate their navigation systems with precision, the EV-400 is suitable for both mechanical and hydraulic steering systems.

Features

Features (Sail Evolution Autopilot):

  • Heavy-duty, 30 Amp output for Type 3 Drives or ZF Sail Pod Drive Systems.
  • Evolution Ai for superior performance.
  • No calibration required.
  • SeaTalkng Network Compatible.
  • ACU-400 auxiliary power to SeaTalkng network.
  • Includes p70 Autopilot Controller.

Includes (Sail Evolution Autopilot):

  • EV-1 Sensor Core.
  • p70S Autopilot Control Head.
  • ACU-400 Actuator Control Unit (Includes the M81105 Rotary Rudder Reference).
  • Evolution Cabling Kit.
  • EV Unit O-Ring Pack (set of 2).
  • Wall Mounting Bracket.

Features (EV Sensor Core):

  • Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change.
  • Flexible installation options. Mount above or below deck.
  • Simple SeaTalkng connectivity to the control head and ACU.
  • Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions.
  • Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays.

Features (p70 Autopilot Control Head):

  • LightHouse user interface is simple and quick to use.
  • Wide 160° viewing angles.
  • Start up wizard helps you configure the pilot quickly and easily.
  • Anti-reflective coating for improved visibility in bright sunlight.
  • Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness.
  • Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer.
  • Simple system and group dimming/illumination.
  • Support for multiple data sources.
  • SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required).

Technical Information


DescriptionImperialMetric
Width11 2/9 in.285.00 mm.
Height8 1/3 in.211.50 mm.
Depth2 1/2 in.64.50 mm.
Weight4.85 lb.2.20 kg.
Relative humidityMax. 93%
Waterproof ratingDrip resistant
Storage temperature-30 °C to +70 °C (-22 °F to 158 °F)
Operating temperature-20 °C to +55 °C (-4 °F to 131 °F)
Power consumption (standby)300 mA (12 V)
Nominal supply voltage12 V dc
Operating voltage range10.8 V dc to 15.6 V dc
