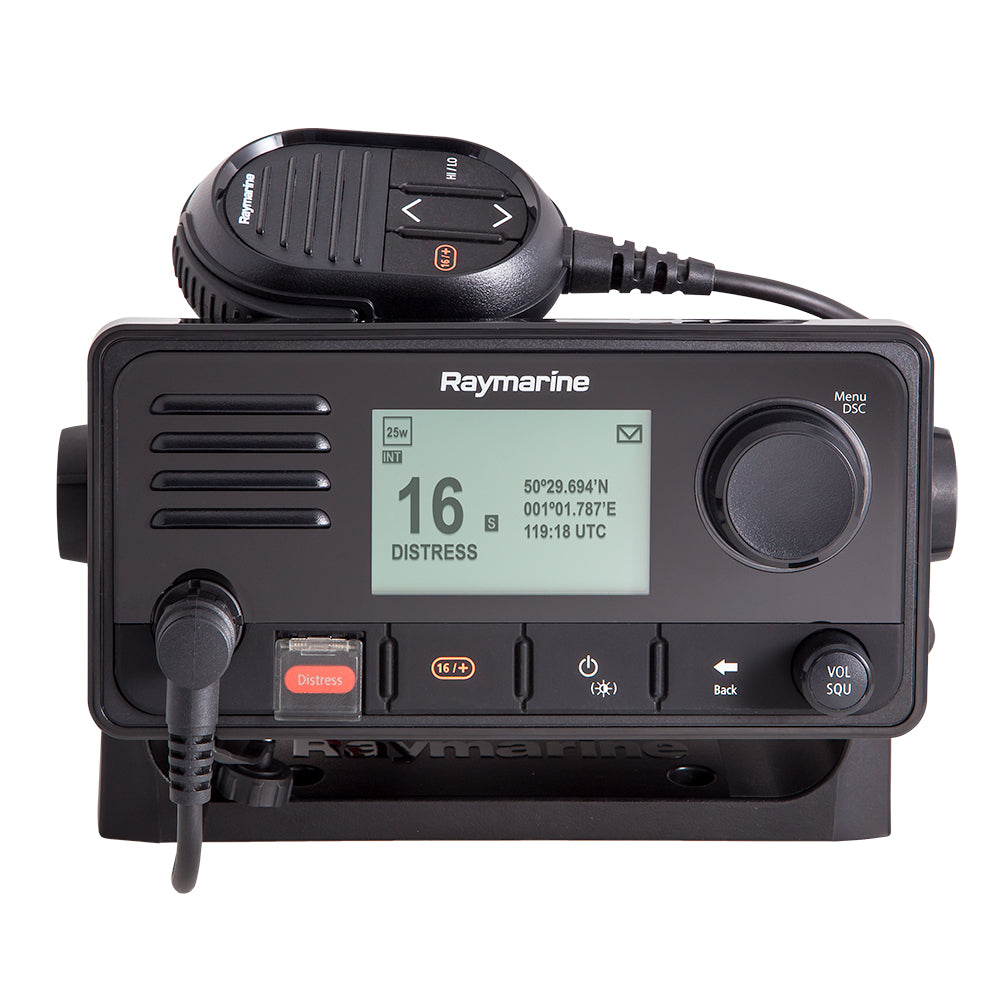

Raymarine Ray73 VHF Radio (AIS Receiver, GPS)
Raymarine Ray73 VHF Radio (AIS Receiver, GPS) is backordered and will ship as soon as it is back in stock.
Description
Description
Raymarineâs Ray73 VHF radio features an internal AIS receiver and loudhailer capabilities. Built on our marine radio chassis, the Ray73 comes with oversized controls and a big screen for easy operation offshore. The Ray73 also supports optional wired or wireless RayMic controllers for true multi-station control and intercom capability. When connected to an optional hailing horn, the Ray73 can generate automatic fog signals and work as a public address announcement system.
Premium VHF with a built-in AIS receiver and loudhailer. Remote station capable, with wired and wireless microphone options.
Our Part # RAY-E70517 | Raymarine Part # E70517
Features
Features
Features:
- Marine VHF with Digital Selective Calling
- Internal AIS receiver provides target data for chartplotter, radar, and instruments
- Fog signalling and public address functions with optional hailing horn (M95435)
- Wired or wireless expansion with optional RayMic handset stations
- Internal GPS/GNSS receiver with a connection point for an optional external antenna
- NMEA2000 and NMEA0183 networking for integration with onboard systems
- Audio output connection for optional passive remote speaker (A80542)
- Surface and trunnion mount kits included
- Styled to compliment the Axiom family of chartplotter displays
Technical Information
Technical Information
Description | Specs |
---|---|
Operating temperature | -20ºC (-4ºF) to +60ºC (140ºF) |
Storage temperature | -25ºC (-13ºF) to +70ºC (158ºF) |
Relative humidity | 0.95 |
Water proofing | IPx6 & IPx7 |
Nominal supply voltage | 12 V dc (Reverse polarity and over voltage protection) |
Operating voltage range | 9 V dc to 16 V dc |
Channels | All available US, in.ternational and Canadian VHF marinebands |
Frequency Range | 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
Frequency stability | +/- 1.5 ppm |
Channel Spacing | 25 kHz |
Spurious emissions | Better than â36 dBm at 25 W (Less than 0.25 μW) |
Maximum deviation | +/- 5 kHz |
