Quick T6415-12 ContaCT Units 150A 12 V Ip66 B
Quick T6415-12 ContaCT Units 150A 12 V Ip66 B is backordered and will ship as soon as it is back in stock.
Description
Description

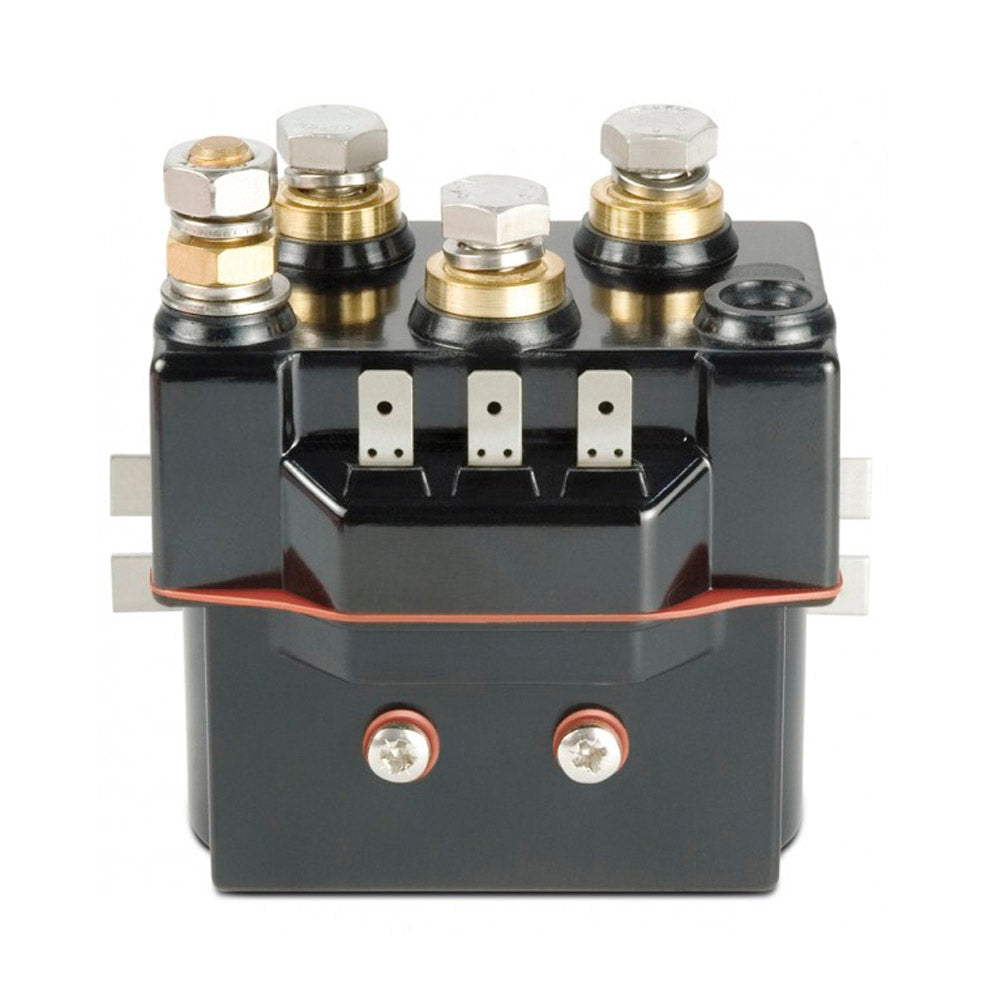

The Quick T6415-12 ContaCT Units 150A 12 V Ip66 B #FTT641512000B00 is designed to effortlessly manage electric motors for windlasses and capstans with its reversing contactor feature. Boasting an IP66 waterproof casing, it ensures durability even in challenging marine environments. Its straightforward external connections make for an easy installation that anyone can appreciate.
Features & Benefits
- Reversing contactor for smooth motor operation
- IP66 waterproof casing for enhanced protection
- Simple external connections for easy installation
- Includes solenoid unit and product sheet
This unit comes with a robust waterproof casing that meets the IP66 standard, ensuring it can withstand splashes and marine conditions. It's compatible with electric motors used in windlasses and capstans, offering seamless functionality. With its intuitive design, it includes a solenoid unit and a detailed product sheet for comprehensive guidance during setup.
Technical Information
Technical Information
Description | Specs |
---|---|
Model | T 6415 - 12V. |
Maximum power of the windlass/capstan motor | 2500 W. |
Max contact voltage | 48 Vdc. |
Interruption capacity | 800 A. @ 48 Vdc. |
Working intermittent current | 150 A. |
Coil rated voltage | 12 Vdc. |
Recommended fuse | 2.50 A Fast |
Degree of protection | IP 66 |
Weight | 0.48 lb. / 216 gr. |
