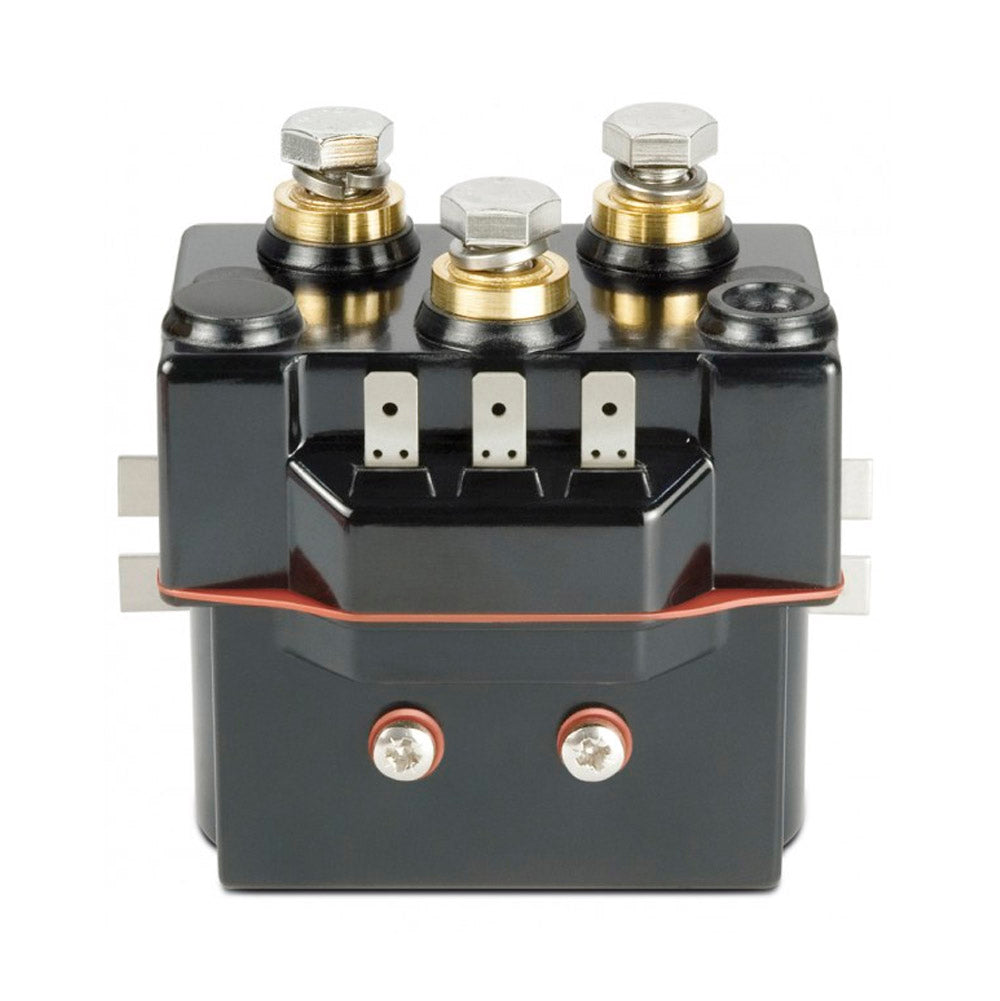

Quick T6315-12 ContaCT Units 150A 12 V Ip66 B
Quick T6315-12 ContaCT Units 150A 12 V Ip66 B is backordered and will ship as soon as it is back in stock.
Description
Description
The Quick T6315-12 ContaCT Units 150A 12 V Ip66 B #FTT631512000B00 is a reliable solution for operating electric motors, perfect for those involved in anchoring &docking activities. It's built to be user-friendly with its simple installation and robust IP66 waterproof casing. This makes it ideal for handling windlasses and capstans effortlessly.
Benefits
- Non-reversing contactor for efficient motor operation
- Easy installation with external connections
- IP66 waterproof casing for durability in marine environments
- Includes solenoid unit and product sheet
Crafted with sturdy materials, this contactor is designed to withstand the harsh marine conditions. It operates at 150A and 12V, making it compatible with various sailing gear and essential for seamless anchoring and docking. The compact design ensures it fits well in different setups while providing reliable performance.
Our Part # QCKFTT631512000B00 | Mfr. Part # FTT631512000B00
Technical Information
Technical Information
Description | Specs |
---|---|
Model | T 6315 - 12V. |
Maximum power of the windlass/capstan motor | 2500 W. |
Max contact voltage | 48 Vdc. |
Interruption capacity | 800 A. @ 48 Vdc. |
Working in.termittent current | 150 A. |
Coil rated voltage | 12 Vdc. |
Recommended fuse | 2.50 A Fast |
Degree of protection | IP 66 |
Weight | 0.41 lb.. / 187 g.r. |
