Quick  |  SKU: QCKFSTH10120000A00  |  Manuf. Code: FSTH10120000A00

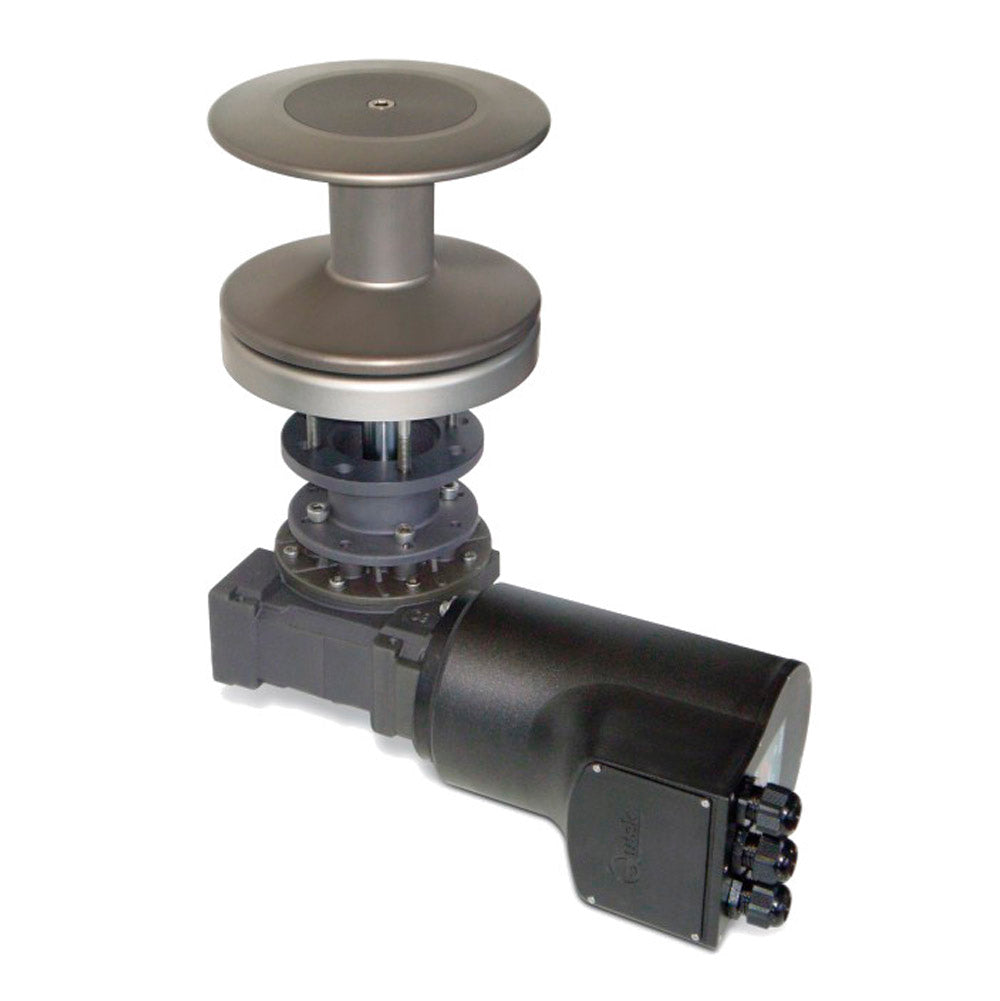

Quick Windlass - Thor 1000W Vertical Electric 12V Drum Only

$2,160.00 USD $2,541.18

Description

The Thor is a capstan with a horizontal mounted motor below the deck. This unit comes equipped with an IP67 watertight motor and anodized aluminum gearbox. The drum is composed of anodized aluminum in hard oxide and the base is composed of aluminum. This unit is sold complete with the capstan, solenoid unit, clutch handle, mounting hardware, and users manual.

Our Part # QCKFSTH10120000A00 | Quick Part # FSTH10120000A00

Knowledge Base

Technical Information


DescriptionMetricImperial
Motor Power1000 W.1000 W.
Motor Supply Voltage12 V.12 V.
Maximum Pull1000.00 kg.2205.00 lb
Maximum Working Load370.00 kg.815.00 lb.
Working Load120.00 kg.264.50 lb.
Current absorbtion @ working load (1)140 A.140 A.
Maximum chain speed (2)22.30 m./min.73.20 ft./min.
Maximum chain speed @ working load (2)11.80 m./min.38.70 ft./min.
