Quick Windlass - Thor 700W Vertical Electric 12V Drum Only
Quick Windlass - Thor 700W Vertical Electric 12V Drum Only is backordered and will ship as soon as it is back in stock.
Description
Description

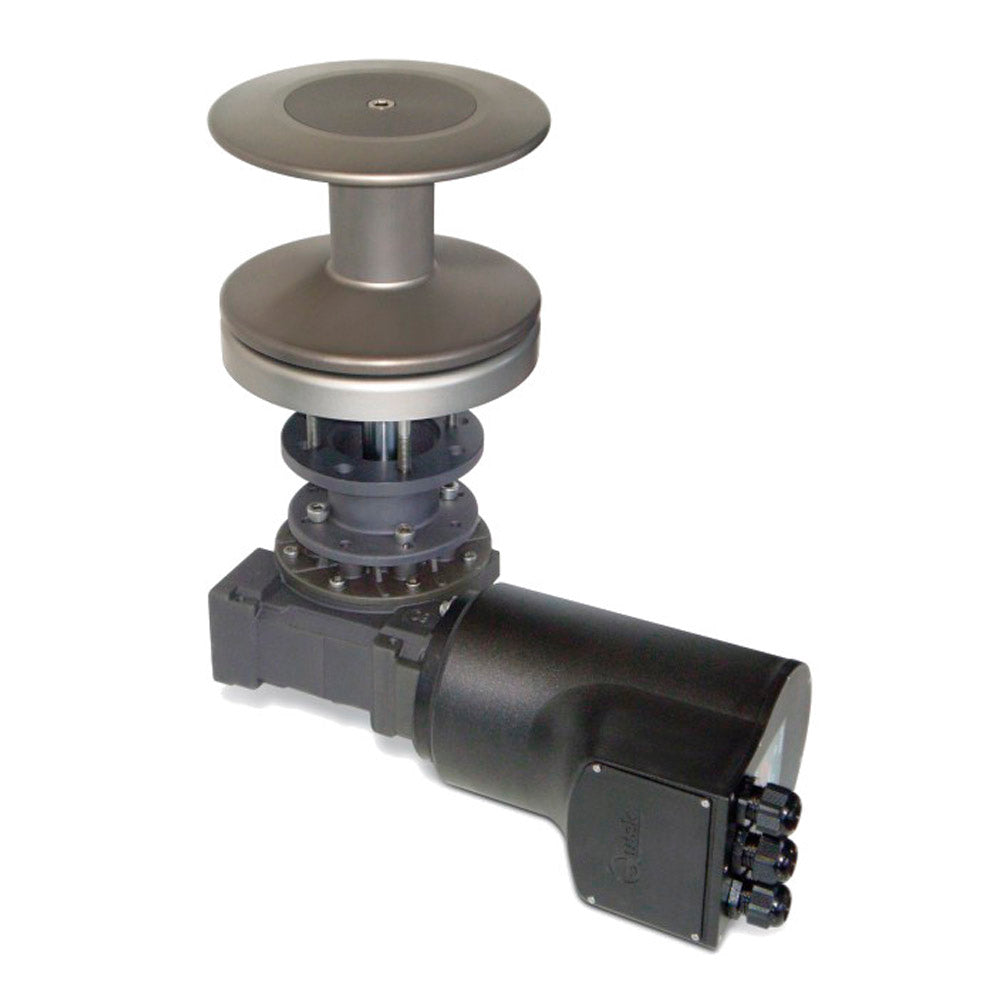

The Thor is a capstan with a horizontal mounted motor below the deck. This unit comes equipped with an IP67 watertight motor and anodized aluminum gearbox. The drum is composed of anodized aluminum in hard oxide and the base is composed of aluminum. This unit is sold complete with the capstan, solenoid unit, clutch handle, mounting hardware, and users manual.
Our Part # QCKFSTH07120000A00 | Quick Part # FSTH07120000A00
Knowledge Base
Knowledge Base
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Motor Power | 700 W. | 700 W. |
Motor Supply Voltage | 12 V. | 12 V. |
Maximum Pull | 850.00 kg. | 1874.00 lb |
Maximum Working Load | 250.00 kg. | 551.00 lb |
Working Load | 80.00 kg. | 176.00 lb. |
Current absorbtion @ working load (1) | 90 A. | 90 A. |
Maximum chain speed (2) | 14.80 m./min. | 48.50 ft./min. |
Maximum chain speed @ working load (2) | 8.30 m./min. | 27.20 ft./min. |
