Quick  |  SKU: QCKFSR01412D010A00  |  Manuf. Code: FSR01412D010A00

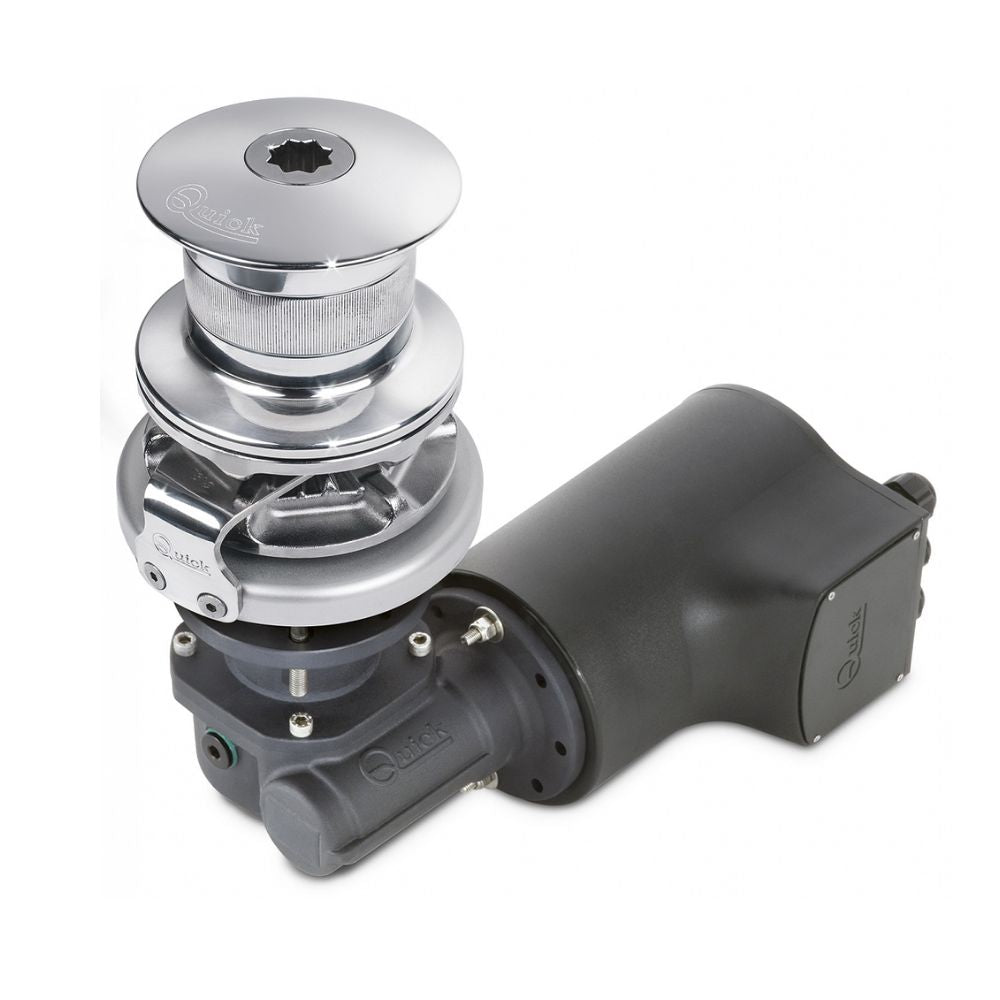

Quick Windlass - Rider R3 1400W Vertical Electric 12V Gypsy + Drum 10mm - DIN 766

$3,300.00 USD $3,882.35

Description

The Rider R3 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of anodized aluminum which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for chain retrieval. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and a chain stopper. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.

Features

Features:

  • Vertical windlasses
  • Anodized aluminium base
  • With and without drum
  • Integrated sensor and magnet for chain counter
  • Manual Free-Fall system
  • Motor watertight to IP67
  • Anodized aluminium gearbox (1400 W)
  • Technopolymer gearbox (700 W / 1000 W)

Technical Information


DescriptionImperialMetric
Motor TypeVertical
Drum / No Drumw/Drum
GypsyChain
Power Supply12 V.
Power (W)1400W.
Boats up to39.00 - 49.00 ft.11.88 - 14.94 m.
Gypsy Chain3/8 in.10.00 mm.
Chain FallRight hand
