Quick  |  SKU: QCKFSR010240008B00  |  Manuf. Code: FSR010240008B00

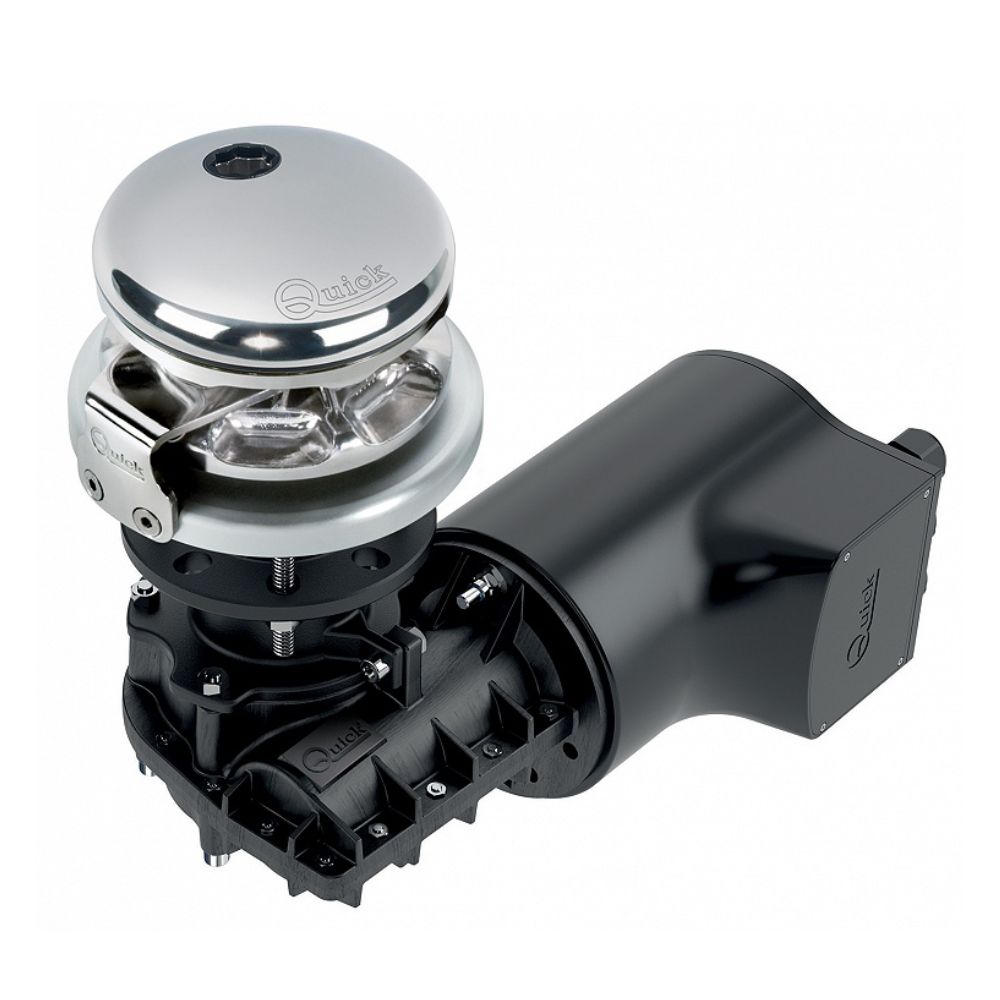

Quick Windlass - Rider R3P 1000W Vertical Electric 24V Gypsy Only 8mm - DIN 766

$2,330.00 USD $2,741.18

Description

The Quick R3P Rider 1012P vertical windlass is suitable for boats from 10m to 13m (33 to 43ft). The vertical mount windlass is easy to install with an anodised Aluminium base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO / DIN 766 and 5/16" G4 / BBB chain.

Features

Features:

  • Vertical windlasses
  • Anodized aluminium base
  • With and without drum
  • Integrated sensor and magnet for chain counter
  • Manual Free-Fall system
  • Motor watertight to IP67
  • Anodized aluminium gearbox (1400 W)
  • Technopolymer gearbox (700 W / 1000 W)

Technical Information


DescriptionImperialMetric
Motor TypeVertical
GypsyChain
Power Supply24 V.
Power (W)1000W.
Boats up to33.00 - 43.00 ft.10.05 - 13.11 m.
Gypsy Chain5/16 in.8.00 mm.
Chain FallRight hand
