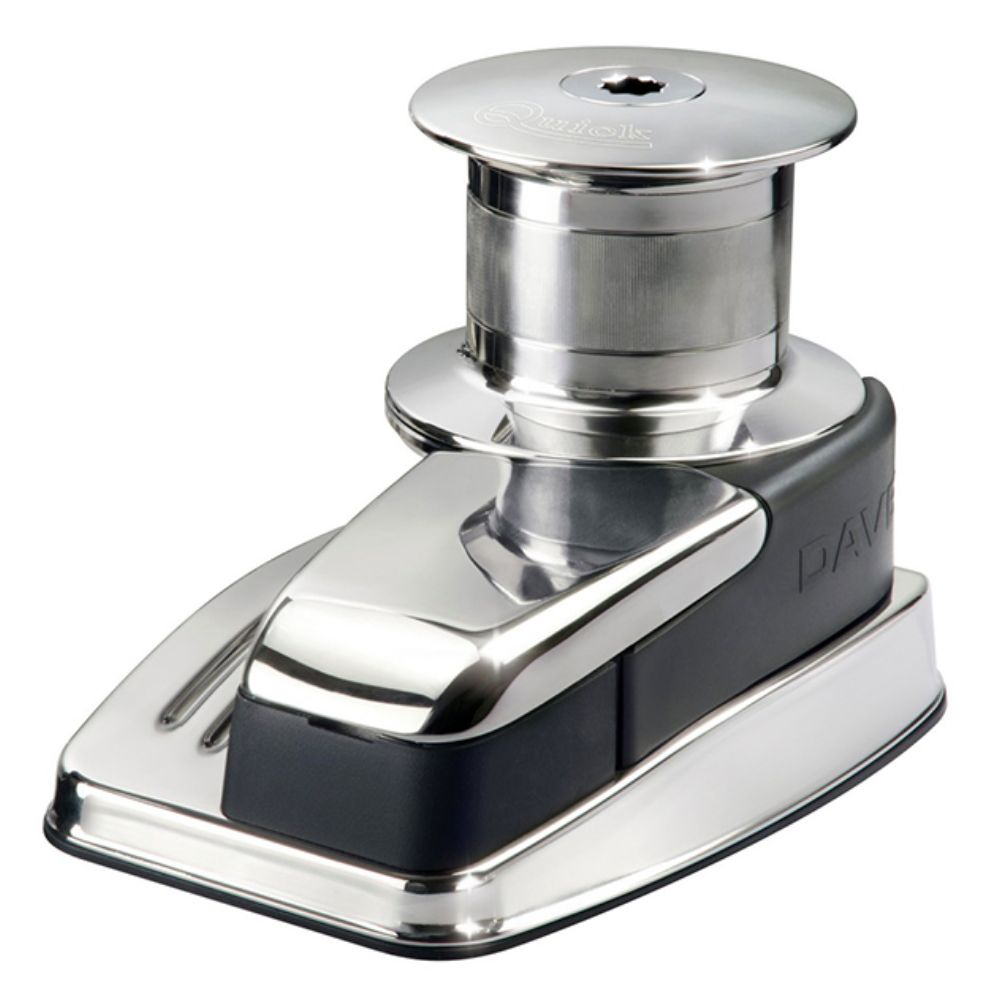

Quick Windlass - Dave DV5 1.34 HP Horizontal Hydraulic Gypsy + Drum LH 10mm - DIN 766
Quick Windlass - Dave DV5 1.34 HP Horizontal Hydraulic Gypsy + Drum LH 10mm - DIN 766 is backordered and will ship as soon as it is back in stock.
Description
Description
The Dave DV5 Vertical Windlass with Drum is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval, left and right side chain entry as well as various gypsy sizes for rope and chain retrieval. Equipped with an emergency manual lift system you can easily retrieve your anchor during instances when you may lose battery power on your boat. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and an easy to open inspection lid. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.
Features
Features
Features:
- Vertical windlasses
- Stainless steel Aisi 316 base and anodized aluminium
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Safety mechanical band brake
- Supplied with pressure lever
- Inspection cover
- Motor watertight to IP67 (1700W)
- Motor watertight to IP66 (2000/2300W)
- Anodized aluminium gearbox
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Motor Type | Vertical | |
Drum / No Drum | w/Drum | |
Gypsy | Rope/Chain | |
Power Supply | Hydraulic | |
Boats up to | 49.00 - 82.00 ft. | 14.93 - 24.99 m. |
Gypsy Chain | 3/8 in. | 10.00 mm. |
Gypsy Rope | 3/4 in. | 19.00 mm. |
Chain Fall | Left hand. |
