Quick  |  SKU: QCKFSDVHX000X12A00  |  Manuf. Code: FSDVHX000X12A00

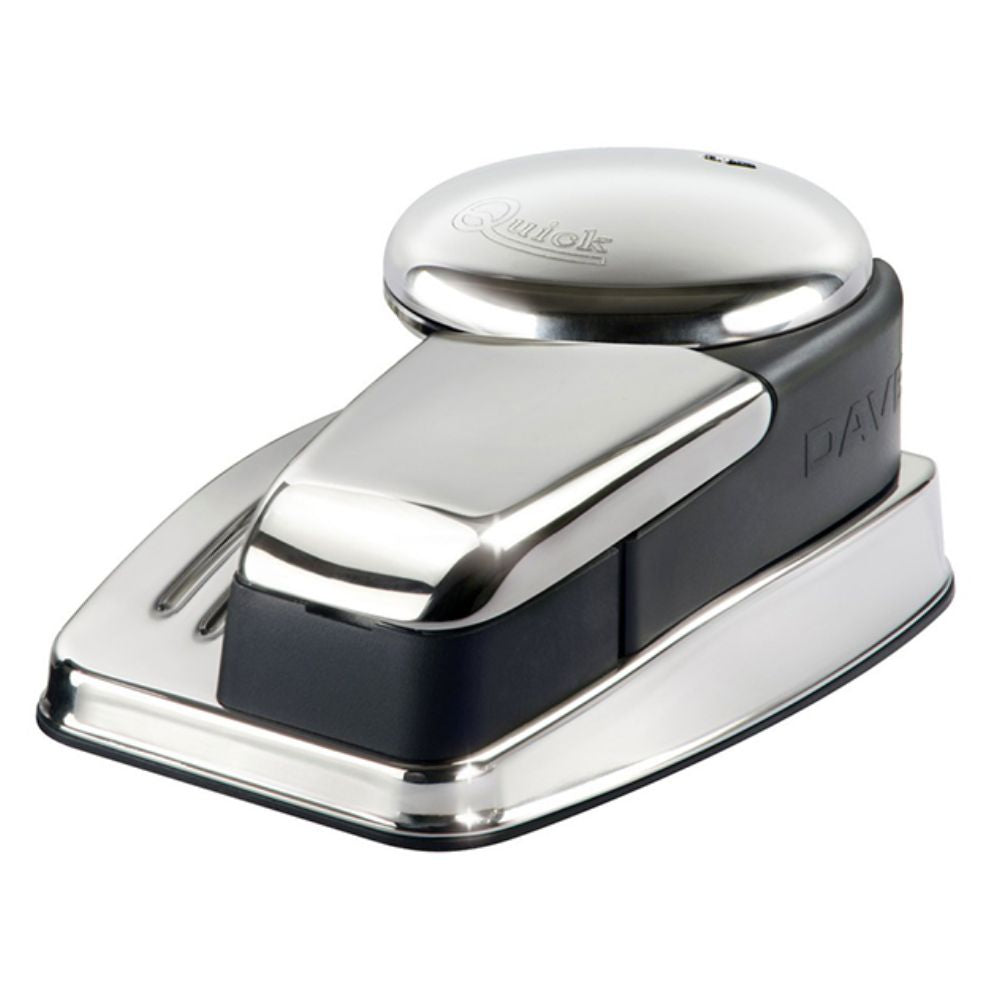

Quick Windlass - Dave DV5 1.60 HP Horizontal Hydraulic Gypsy Only LH 12mm - ISO

$6,330.00 USD $7,447.06

Description

The Dave DV5 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval, left and right side chain entry as well as various gypsy sizes for rope and chain retrieval. Equipped with an emergency manual lift system you can easily retrieve your anchor during instances when you may lose battery power on your boat. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and an easy to open inspection lid. DV5 X Vertical windlass is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.

Features

Features:

  • Vertical windlasses
  • Stainless steel Aisi 316 base and anodized aluminium
  • With and without drum
  • Rope and chain on a single gypsy
  • Integrated sensor and magnet for chain counter
  • Manual Free-Fall system
  • Safety mechanical band brake
  • Supplied with pressure lever
  • Inspection cover
  • Motor watertight to IP67 (1700W)
  • Motor watertight to IP66 (2000/2300W)
  • Anodized aluminium gearbox

Technical Information


DescriptionImperialMetric
Motor TypeVertical
Drum / No DrumNo drum
GypsyRope/Chain
Power SupplyHydraulic
Boats up to49.00 - 82.00 ft.14.93 - 24.99 m.
Gypsy Chain1/2 in.12.00 mm.
Gypsy Rope3/4 in.19.00 mm.
Chain FallLeft hand.
