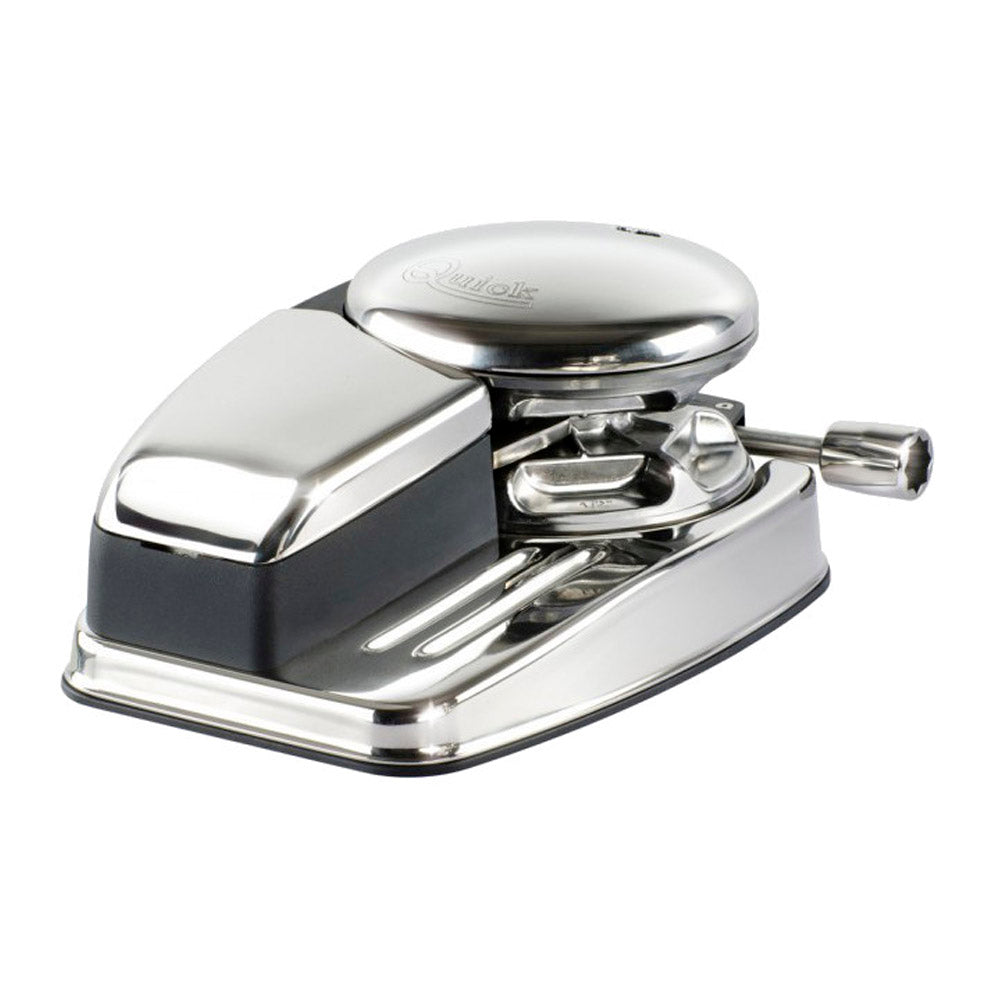

Quick Windlass - Dave DV5 2300W Vertical Electric 24V Gypsy Only LH 10mm - DIN 766
Quick Windlass - Dave DV5 2300W Vertical Electric 24V Gypsy Only LH 10mm - DIN 766 is backordered and will ship as soon as it is back in stock.
Description
Description
The Dave is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval, left and right side chain entry as well as various gypsy sizes for rope and chain retrieval. Equipped with an emergency manual lift system you can easily retrieve your anchor during instances when you may lose battery power on your boat. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and an easy to open inspection lid. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.
Our Part # QCKFSDV23240XA00 | Quick Part # FSDV23240X10A00
Knowledge Base
Knowledge Base
Technical Information
Technical Information
Description | Metric | Imperial |
---|---|---|
Standard Version | Dave 2300 / 2300 D | Dave 2300 / 2300 D |
Motor Power | 2300 W. | 2300 W. |
Motor Supply Voltage | 24 V. | 24 V. |
Maximum Pull | 2404.00 kg. | 5300.00 lb. |
Maximum Working Load | 853.00 kg. | 1880.00 lb. |
Working Load | 285.00 kg. | 630.00 lb. |
Current absorbtion working load (1) | 120 A. | 120 A. |
Maximum chain speed (2) | 41.00 m./min. | 135.00 ft./min. |
Maximum chain speed working load (2) | 23.00 m./min. | 76.00 ft./min. |
Weight - Dave (without drum) | 46.70 kg. | 103.00 lb. |
Weight - Dave D (with drum) | 51.70 kg. | 114.00 lb. |
For Boats from 39-79 Feet | 16.00 - 20.00 m. | 52.50 - 65.60 ft. |
