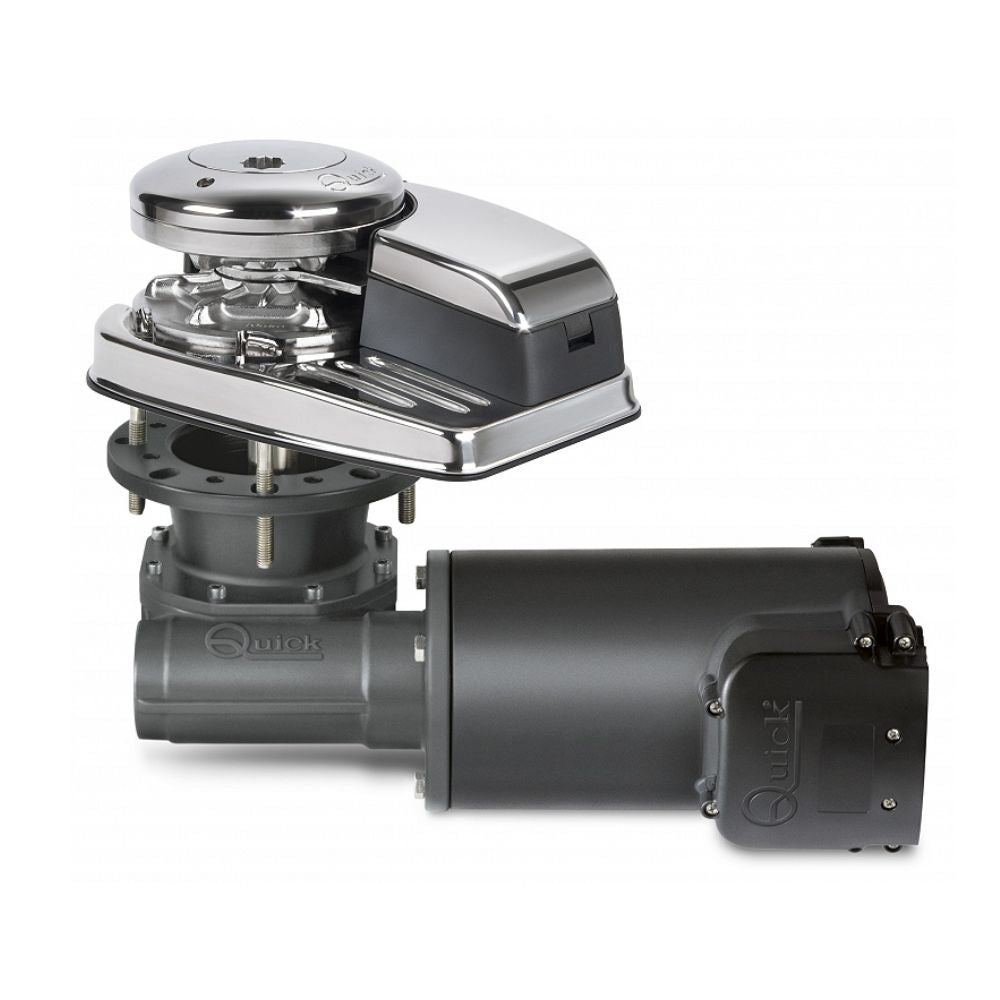

Quick Windlass - Dylan DR4 1700W Vertical Electric 12V Gypsy Only 12mm - ISO
Quick Windlass - Dylan DR4 1700W Vertical Electric 12V Gypsy Only 12mm - ISO is backordered and will ship as soon as it is back in stock.
Description
Description
The Quick Windlass - Dylan DR4 1700W Vertical Electric 12V Gypsy Only 12mm - ISO is a top choice for those with boats where deck space is at a premium. This versatile windlass, MPN DR4, features a robust design with an emergency manual lift system, ensuring you can retrieve your anchor even during power outages. Its user-friendly design and reliable performance make it a must-have for seamless anchoring experiences.
Features & Benefits
- Vertical windlass for boats with limited deck space
- Emergency manual lift system
- Manual free-fall capability
- IP67 watertight motor for 1700W power
- Anodized aluminum gearbox
- Integrated sensor and magnet for chain counter connection
- Easy to open inspection lid
- Supplied with solenoid unit, clutch handle, and mounting hardware
The windlass is constructed from durable AISI stainless steel and anodized aluminum in hard oxide, ensuring longevity and resistance to marine conditions. It's compatible with 12mm rope and chain, offering versatility in its use. An IP67 rating means the motor is protected against water, while the easy-access inspection lid allows for simple maintenance. The included solenoid unit and clutch handle make installation straightforward.
Features
Features
Features:
- Vertical windlasses
- Base in stainless steel AISI316 and anodized aluminium in hard oxide
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Emergency manual lift system
- Supplied with pressure lever
- Inspection lid
- IP67 watertight motor (1500-1700W)
- IP66 watertight motor (2000W)>
- Anodized aluminium gearbox
Knowledge Base
Knowledge Base
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Motor Type | Vertical | |
Gypsy | Rope/Chain | |
Power Supply | 12 V. | |
Power (W) | 1700W. | |
Boats up to | 46.00 - 59.00 ft. | 14.02 - 17.98 m. |
Gypsy Chain | 1/2 in. | 12.00 mm. |
Gypsy Rope | 3/4 in. | 20.00 mm. |
Chain Fall | Right hand |
