Quick  |  SKU: QCKFSAL1512000810A00  |  Manuf. Code: FSAL15120008A00

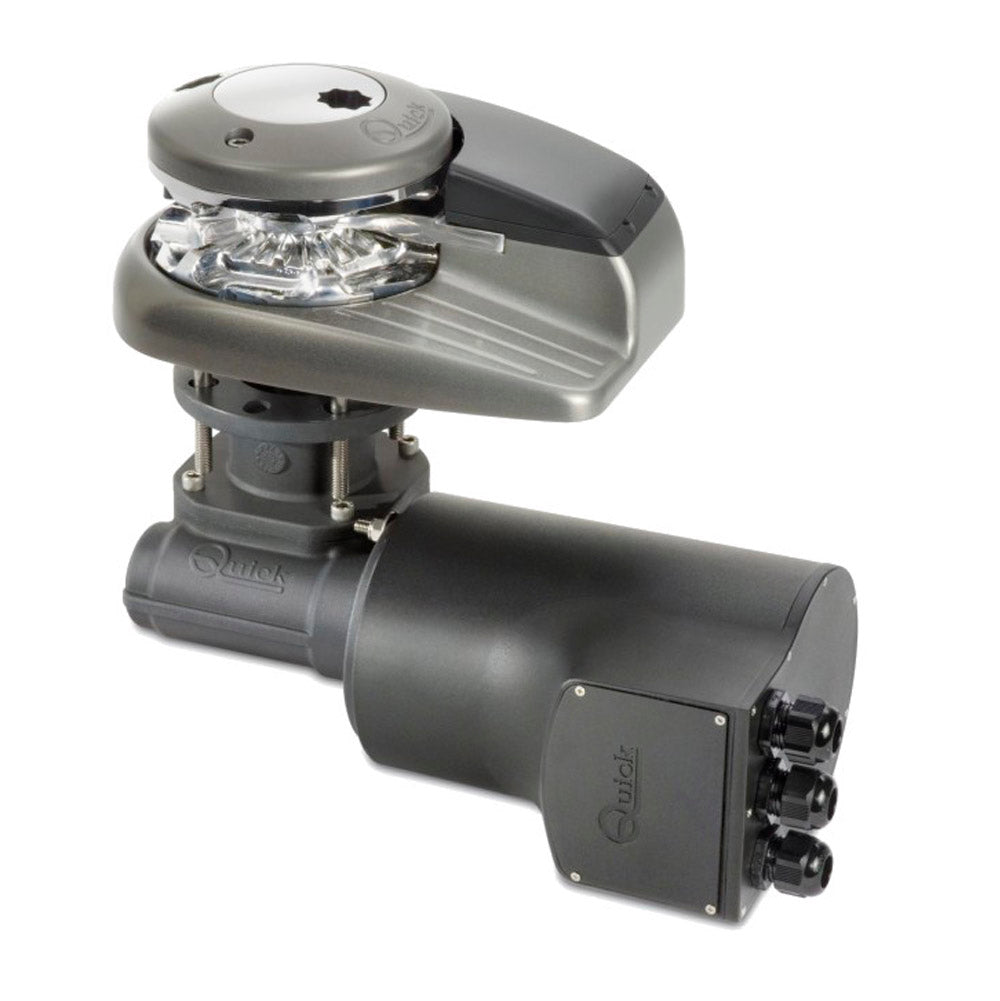

Quick Windlass - Aleph AL3 1500W Vertical Electric 12V Gypsy Only 5/16" - G4

$3,530.00 USD $4,152.94

Description

The Quick Windlass - Aleph AL3 1500W Vertical Electric 12V Gypsy Only 5/16" - G4 #FSAL15120008A00 is a reliable electric windlass for boats, designed to save space and perform efficiently in tough marine conditions. Crafted from anodized aluminum in hard oxide, it's built to withstand the elements while offering various configurations to suit your needs. It's a dependable choice for those times when you need a seamless anchor retrieval system.

Features & Benefits

  • Space-saving vertical design ideal for boats with limited deck space.
  • Anodized aluminum construction offers durability in harsh marine environments.
  • Equipped with an emergency manual lift for battery power loss scenarios.
  • IP67 watertight motor ensures reliable performance in wet conditions.
  • Easy-to-open inspection lid for convenient maintenance.
  • Comes complete with solenoid unit, clutch handle, and mounting hardware.

Constructed from hard oxide anodized aluminum, this windlass combines durability with function, ensuring it can handle both rope and chain retrieval efficiently. Its vertical application makes it perfect for boats where deck space is at a premium. With dimensions suited for a 5/16" G4 chain, it provides a robust anchoring solution while being compatible with other marine components. Additional technical specifications include a 1500W motor, 12V power requirement, and an anodized aluminum gearbox for long-lasting use in the marine environment.

Usage

Best used in scenarios where deck space is limited, this electric windlass for boats provides efficient and reliable anchor retrieval, ensuring you can enjoy your time on the water without hassle. Ideal for marine enthusiasts looking for a sturdy and dependable anchoring system.

Knowledge Base

Technical Information


DescriptionMetricImperial
Standard VersionDylan 1500 / 1500 DDylan 1500 / 1500 D
Motor Power1500 W.1500 W.
Motor Supply Voltage12 V.12 V.
Maximum Pull1100.00 kg.2426.00 lb.
Maximum Working Load400.00 kg.882.00 lb.
Working Load135.00 kg.298.00 lb.
Current absorbtion working load (1)150 A.150 A.
Maximum chain speed (2)35.00 m./min.116.00 ft./min
Maximum chain speed working load (2)19.00 m./min.63.00 ft./min
Weight - Duke (without drum)26.00 kg.56.90 lb.
Weight - Duke D (with drum)28.00 kg.61.30 lb.
For Boats from 39-79 Feet12.00 - 15.00 m.39.00 - 50.00 ft.
