Quick  |  SKU: QCKFSAL07240008B00  |  Manuf. Code: FSAL07240008B00

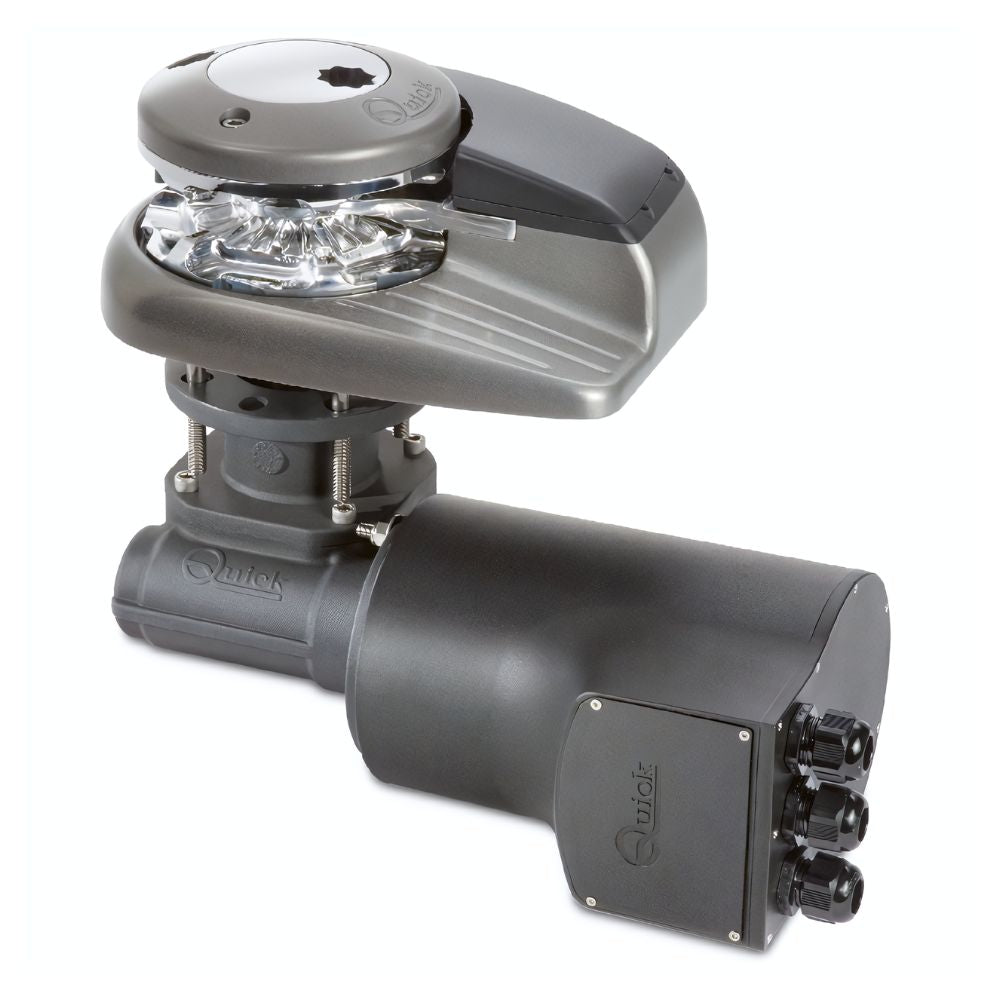

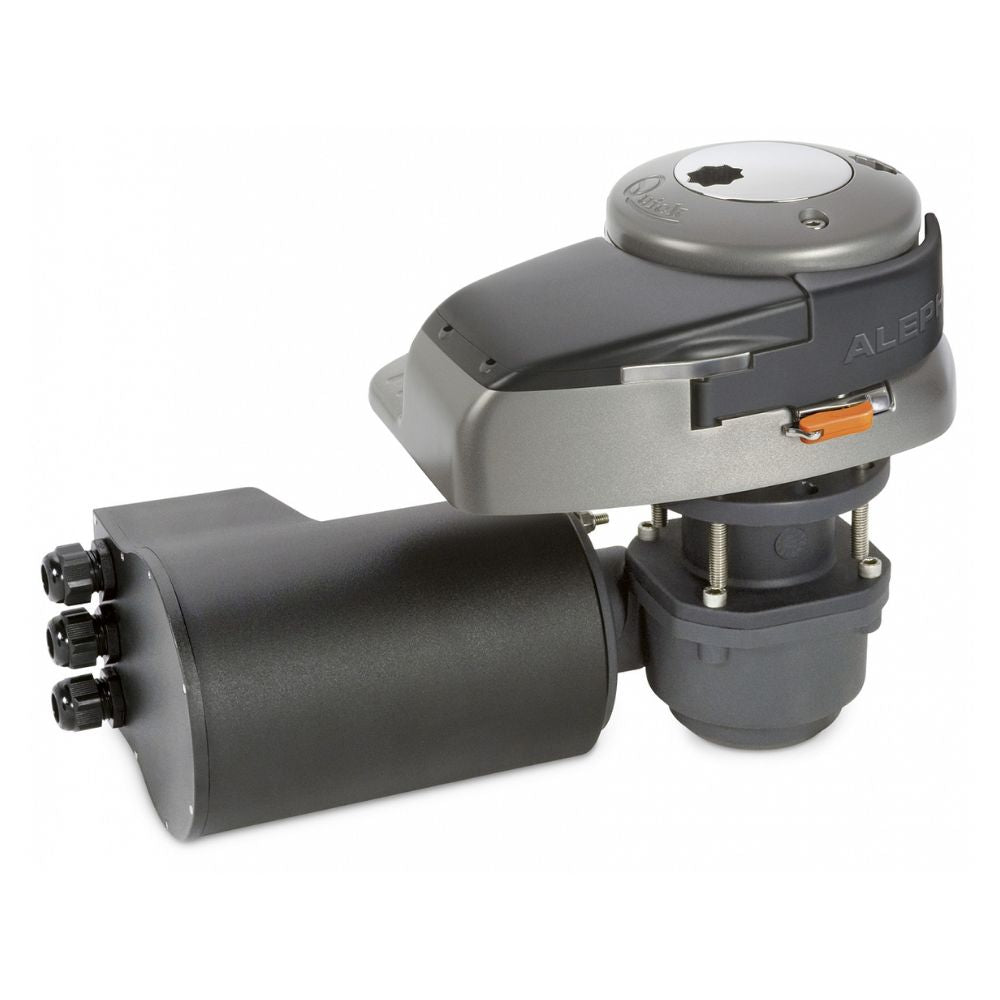

Quick Windlass - Aleph AL3 700W Vertical Electric 24V Gypsy Only 8mm - DIN 766

$2,400.00 USD $2,823.53

Description

The AL3 is a vertical application windlass perfect for boats with limited deck space. This unit is composed of anodized aluminum in hard oxide which is a durable element when dealing with harsh marine environments. It comes in different variations such as with or without the drum capstan for rope retrieval as well as various gypsy sizes for rope and chain retrieval. Equipped with an emergency manual lift system you can easily retrieve your anchor during instances when you may lose battery power on your boat. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and an easy to open inspection lid. The package is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.

Features

Features:

  • Base in anodized aluminium in hard oxide.
  • With and without drum.
  • Rope and chain on a single gypsy.
  • Integrated sensor and magnet for chain counter.
  • Manual Free-Fall system.
  • Emergency manual lift system.
  • Supplied with pressure lever. Inspection lid.
  • IP67 watertight motor.
  • Anodized aluminium gearbox (1500 W)
  • Technopolymer gearbox (700W/1000W)

Technical Information


DescriptionImperialMetric
Motor TypeVertical
Drum / No DrumNo drum
GypsyRope/Chain
Power Supply24 V.
Power (W)700W.
Boats up to23.00 - 33.00 ft.7.01 - 10.05 m.
Gypsy Chain5/16 in.8.00 mm.
Gypsy Rope1/2 - 9/16 - 5/8 in.12.00 - 14.00 - 16.00 mm.
Chain FallRight hand.
