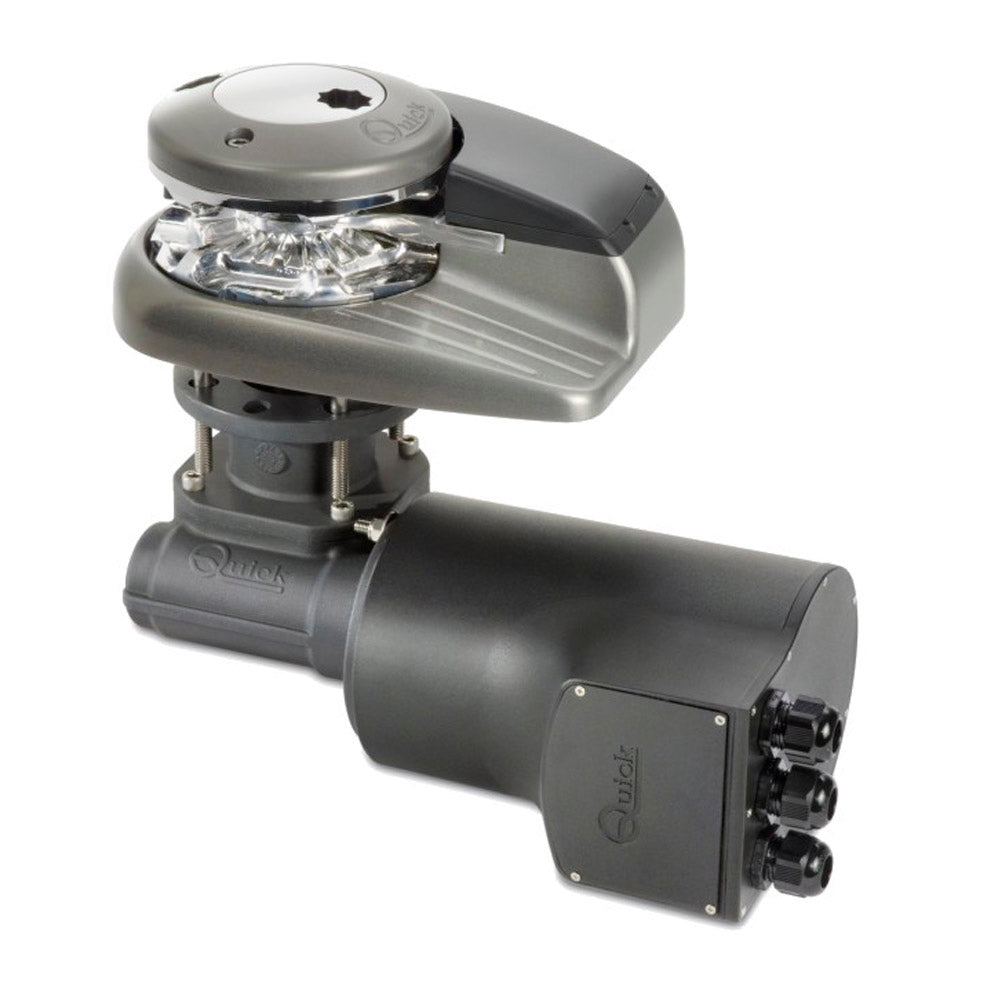

Quick Windlass - Aleph AL3 Alum 700W Vertical Electric 12V Gypsy Only 8mm - DIN 766

The Aleph is a vertical application windlass perfect for boats with limited deck space. This unit is composed of anodized aluminum in hard oxide which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval as well as various gypsy sizes for rope and chain retrieval. Equipped with an emergency manual lift system you can easily retrieve your anchor during instances when you may lose battery power on your boat. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and an easy to open inspection lid. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.

Our Part # QCKFSAL0712000810A00 | Quick Part # FSAL07120008A00

Standard Version: DP3 1000 / 1000 D
Motor Power: 1000 W
Motor Supply Voltage: 12 V / 24 V
Maximum Pull: 2204.6 lb / 2204.6 lb
Maximum Working Load: 815.7 lb / 992.1 lb
Working Load: 264.5 lb / 330.7 lb
Current absorbtion @ working load (1): 140 A
Maximum chain speed (2): 121 ft/min / 134 ft/min
Maximum chain speed @ working load (2): 67 ft/min / 70.2 ft/min
Weight - Dave (without drum): 37.4 lb / 37.4 lb
Weight - Dave D (with drum): 39.6 lb / 39.6 lb
For Boats from 23-49 Feet: 10 - 13 m (33 - 43 ft)
