Description

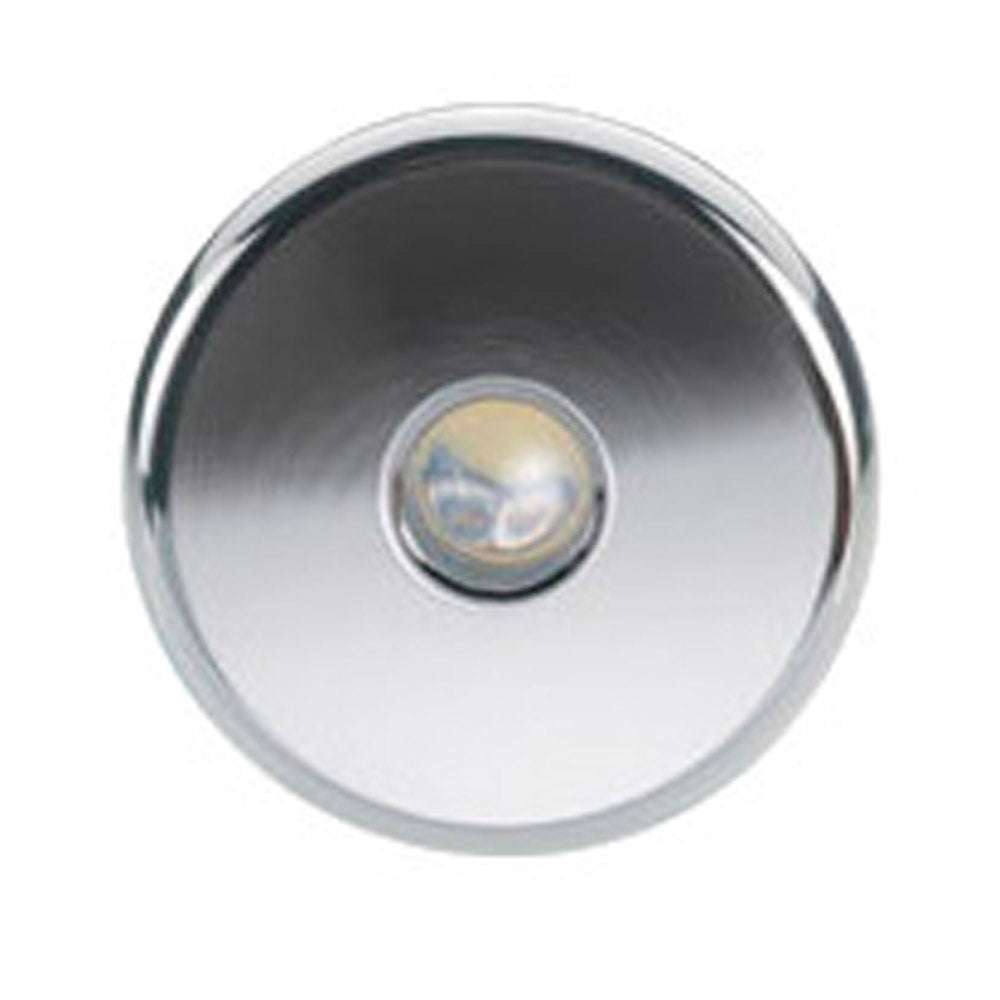

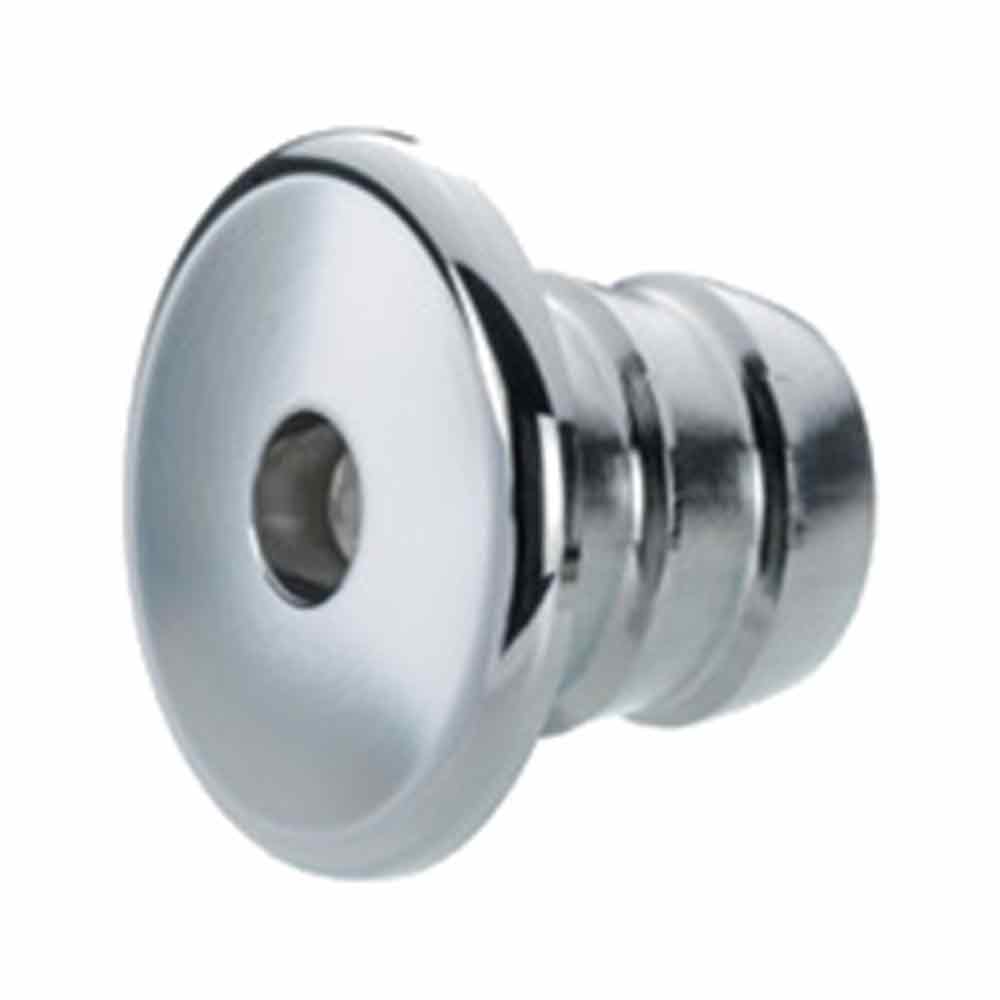

The Tina is an IP65 LED courtesy light. It has a 20mm round trim composed of AISI stainless steel.

LED Protection: Spike protected ± 500V Polarity sensitive: NO

Our Part # QCKFASP1090TX1CA00 | Quick Part # FASP1090TX1CA00

Technical Information

Power Type: Constant Voltage
Light Source: 1 x LED
Supply: 10 ÷ 30 V
Power Consumption: 0.48 W @ 24 V
Current Consumption: 0.02 A @ 12/24 V
Average Lifetime: 50000 Hours
IP Security Degree: 65
Frame: 25/32 in
Recess: 1/2 in
Hole: 15/32 in
