Quick  |  SKU: QCKFBNRP2450HR0A00  |  Manuf. Code: FBNRP2450HR0A00

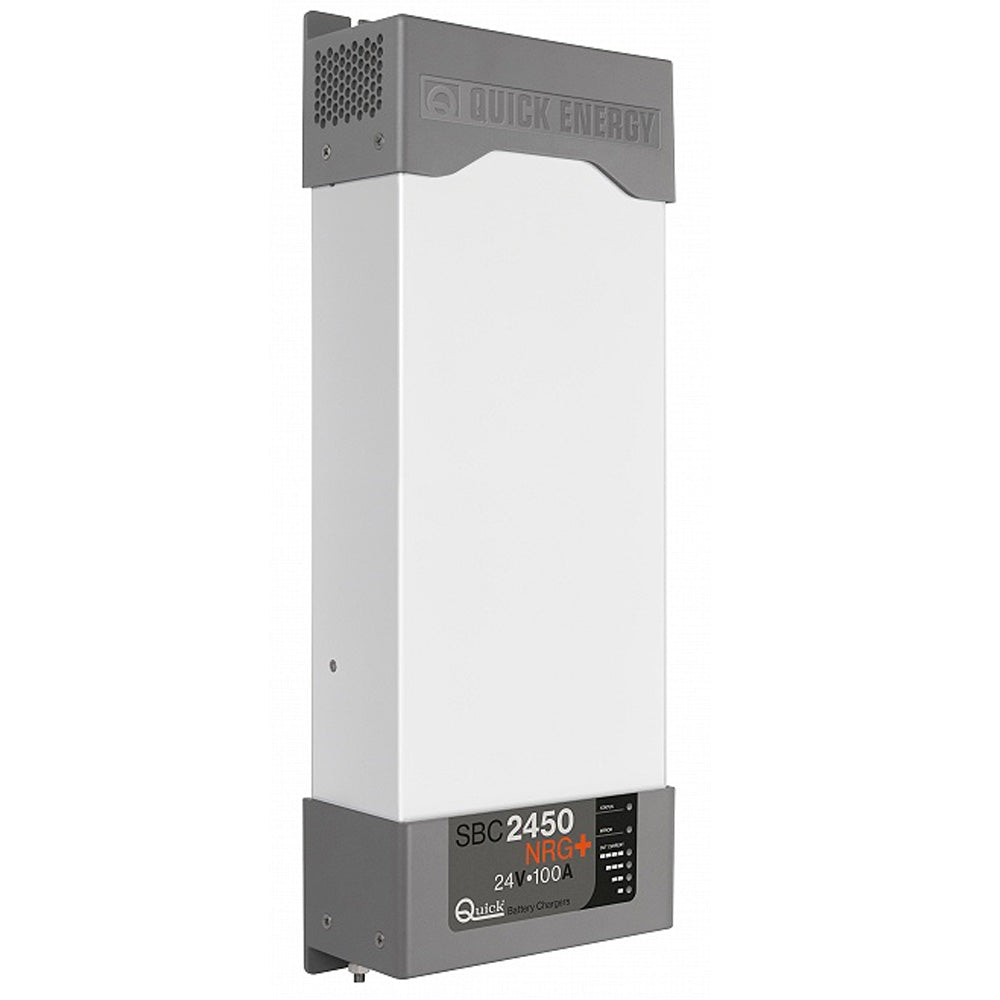

Quick Chargers - SBC 2450 Nrg Battery Charger Hr - 24V - 100 Amp

$1,820.00 USD $2,141.18

Description

The Quick Chargers - SBC 2450 Nrg Battery Charger Hr - 24V - 100 Amp #FBNRP2450HR0A00 is designed for those who need reliable and efficient power solutions. This electrical charger is not only compact but also easy to connect, making it perfect for on-the-go needs. With up to 92% efficiency, it offers enhanced performance with lower consumption and heat emission.

Features & Benefits

  • Compact design with easy-to-use connectors
  • High efficiency up to 92%
  • Lower power consumption and heat emission
  • Improved system reliability
  • Complies with safety and EMC standards

The SBC NRG+ is crafted to meet safety classification EN 60335-2-29 and EMC Class EN 55022/A standards. It also adheres to FCC Title 47 Part 15 Subpart B Class A regulations, ensuring it is suitable for various electrical environments. This charger is ideal for 24V systems and delivers a robust 100 Amp output, catering to demanding power needs.

Features

Features:

  • Three stage IUoU battery charging.
  • High efficiency.
  • Multiple outputs in order to charge more groups of batteries.
  • Differentiated charging for liquid electrolite (open or sealed), gel, AGM or Optima® batteries.
  • Integrated output fuse inside the battery charger.
  • Capacity of supplying full power with low AC mains voltage.
  • Low residual ripple on output.
  • Universal AC supply input.
  • Power factor (cos) equal to 1.
  • Variable speed of the cooling fan.
  • Compatible with the generators.
  • Short circuit, overloading, output overvoltage and overheating protection.
  • Can work in a wide range of ambient temperatures.

Technical Information


DescriptionImperialMetric
Max output current100 A.
Charge absorption voltage28,2 Vdc OL - 28,4 Vdc Li-Ion 28,8 Vdc SL / Gel / AGM - 29,4 Vdc Optima
Charge float absorption26,8 Vdc OL - 27,0 Vdc Li-Ion - 27,2 Vdc AGM 27,6 Vdc SL / Gel / Optima
Number of outputs3
Supply voltage264÷161 Vac with power reduction
Frequency45÷66 Hz
Efficiency≥ 92%
Max absorption (230/240 Vac)12.50 A.
Operating temperature+5°F ÷ +158°F, with power reduction over +122°F
CoolingForced, by variable speed cooling fans
Weight9.30 lb.4.20 kg.
Width6 2/3 in.170.00 mm.
Height19.00 in.481.00 mm.
Depth 3 2/9 in.82.00 mm.
