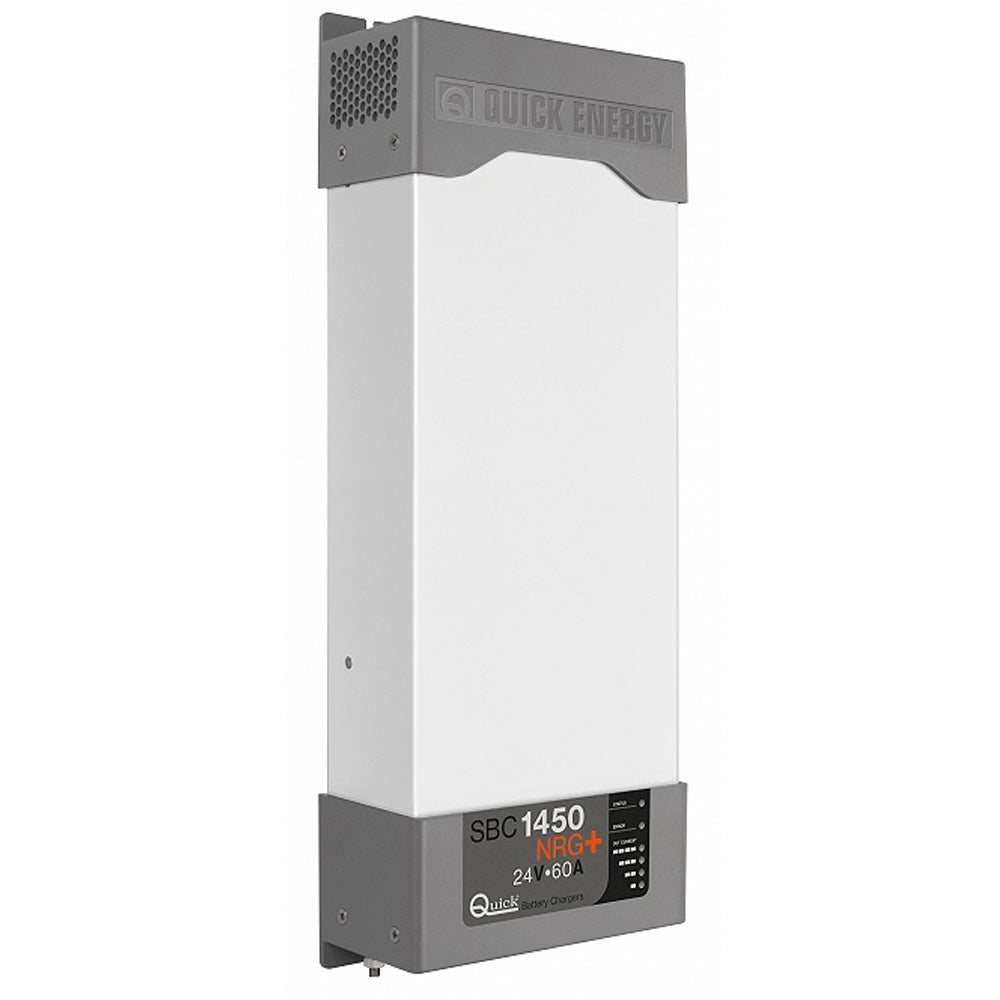

Quick Chargers - SBC 1450 Nrg Battery Charger Hr - 24V - 60 Amp
Quick Chargers - SBC 1450 Nrg Battery Charger Hr - 24V - 60 Amp is backordered and will ship as soon as it is back in stock.
Description
Description
The SBC 1450 Nrg Battery Charger Hr - 24V - 60 Amp #FBNRP1450HR0A00 is a reliable electrical charger that makes your charging tasks easier with its smart design and efficiency. With up to 92% efficiency, it ensures minimal energy waste and lower heat emission, making your equipment more reliable. It's like having a trustworthy companion for your charging needs.
Benefits
- Compact design for easy handling and storage.
- Efficient performance with up to 92% energy efficiency.
- Low heat emission for enhanced safety.
- Equipped with user-friendly connectors for easy installation.
- Compliance with safety classification EN 60335-2-29.
- EMC Class EN 55022/A and FCC TITLE 47 PART 15 SUBPART B CLASS A certified.
Built to meet high standards, this electrical charger is designed for efficiency, ensuring lower energy consumption and enhanced reliability. With its compact size, it fits seamlessly into your setup, while the connectors make installation a breeze. Ideal for a variety of applications, it stands out with its robust construction and adherence to safety and EMC standards.
Our Part # QCKFBNRP1450HR0A00 | Mfr. Part # FBNRP1450HR0A00
Features
Features
- Three stage IUoU battery charging.
- High efficiency.
- Multiple outputs in order to charge more groups of batteries.
- Differentiated charging for liquid electrolite (open or sealed), gel, AGM or Optima batteries.
- Integrated output fuse inside the battery charger.
- Capacity of supplying full power with low AC mains voltage.
- Low residual ripple on output.
- Universal AC supply input.
- Power factor (cos) equal to 1.
- Variable speed of the cooling fan.
- Compatible with the generators.
- Short circuit, overloading, output overvoltage and overheating protection.
- Can work in a wide range of ambient temperatures.
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Max output current | 60 A. | |
Charge absorption voltage | 28,2 Vdc OL - 28,4 Vdc Li-Ion 28,8 Vdc SL / Gel / AGM - 29,4 Vdc Optima | |
Charge float absorption | 26,8 Vdc OL - 27,0 Vdc Li-Ion - 27,2 Vdc AGM 27,6 Vdc SL / Gel / Optima | |
Number of outputs | 3 | |
Supply voltage | 264÷161 Vac with power reduction | |
Frequency | 45÷66 Hz | |
Efficiency | ⥠92% | |
Max absorption (230/240 Vac) | 7.50 A. | |
Operating temperature | +5°F ÷ +158°F, with power reduction over +122°F | |
Cooling | Forced, by variable speed cooling fans | |
Weight | 9.30 lb. | 4.20 kg. |
Width | 6 2/3 in. | 170.00 mm. |
Height | 19.00 in. | 481.00 mm. |
Depth | 3 2/9 in. | 82.00 mm. |
