Quick  |  SKU: QCKFBNRP0365FR0A00  |  Manuf. Code: FBNRP0365FR0A00

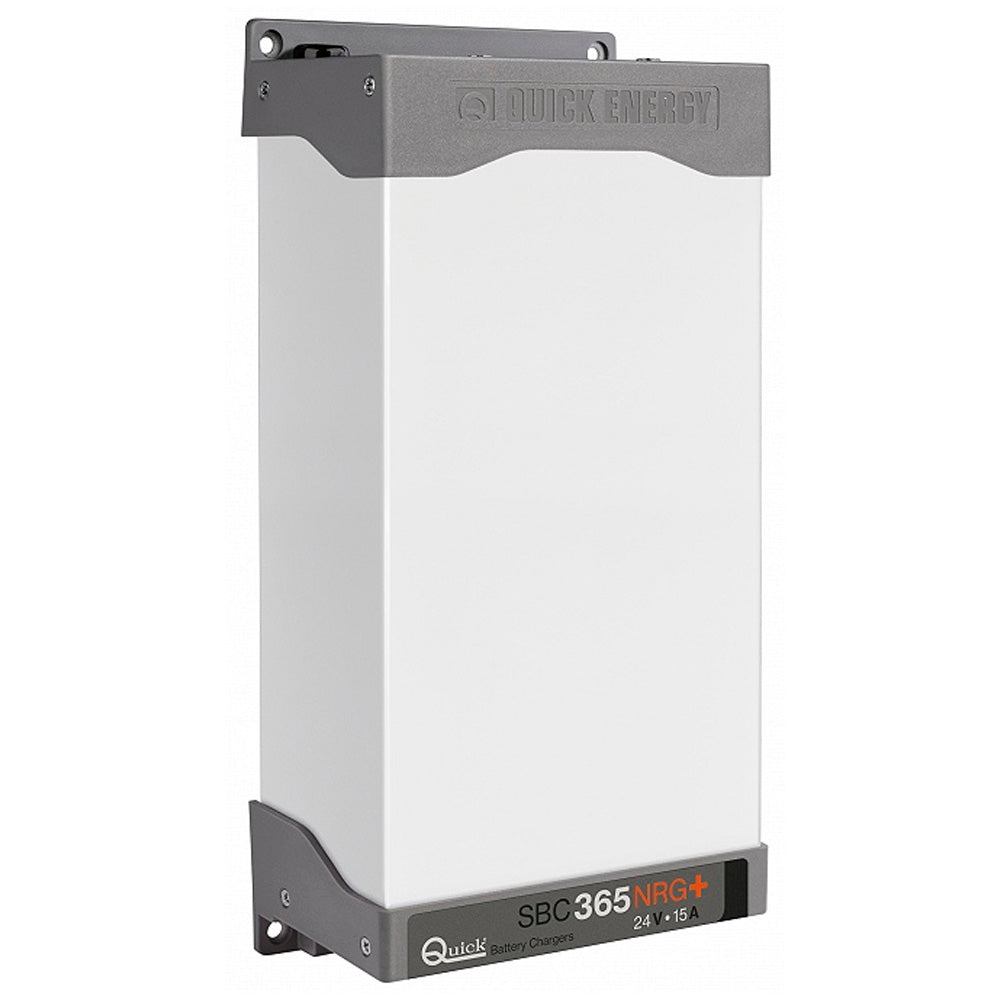

Quick Chargers - SBC 365 Nrg Battery Charger Fr - 24V - 15 Amp

$393.00 USD $462.35

Description

The new SBC NRG+ battery chargers are more compact and equipped with connectors which make their connection easy and practical. Thanks to their efficiency (up to 92%), they are capable of offering a much lower consumption, a lower heat emission and a greater system's reliability.

Safety classification EN 60335-2-29
EMC Class EN 55022/A
FCC TITLE 47 PART 15 SUBPART B CLASS A

Our Part # QCKFBNRP0365FR0A00 | Quick Part # FBNRP0365FR0A00

Features

Features:

  • Three stage IUoU battery charging.
  • High efficiency.
  • Multiple outputs in order to charge more groups of batteries.
  • Differentiated charging for liquid electrolite (open or sealed), gel, AGM or Optima® batteries.
  • Integrated output fuse inside the battery charger.
  • Capacity of supplying full power with low AC mains voltage.
  • Low residual ripple on output.
  • Universal AC supply input.
  • Power factor (cos) equal to 1.
  • Variable speed of the cooling fan.
  • Compatible with the generators.
  • Short circuit, overloading, output overvoltage and overheating protection.
  • Can work in a wide range of ambient temperatures.

Technical Information


DescriptionImperialMetric
Max output current15 A.
Charge absorption voltage28,2 Vdc OL - 28,8 Vdc SL / Gel / AGM - 29,4 Vdc Optima
Charge float absorption26,8 Vdc OL - 27,2 Vdc AGM - 27,6 Vdc SL / Gel / Optima
Number of outputs3
Supply voltage264÷83 Vac, con riduzione di potenza sotto 108 Vac / 264÷83 Vac, with power reduction under 108 Vac
Frequency45÷66 Hz
Efficiency≥ 86%
Max absorption (230/240 Vac)2.00 A.
Max absorption (120 Vac)4.00 A.
Operating temperature-15 ÷ +70 °C, con riduzione di potenza lineare sopra +45 °C / +5°F ÷ +158°F, with power reduction over +113°F
Noise level< 45 dbA @ 1.00 m.
Weight3.50 lb.1.60 kg.
Width4 1/2 in.114.00 mm.
Height10.00 in.252.00 mm.
Depth 2 4/5 in.71.00 mm.
