Quick Bow Thrusters - BTQ 185 Electric 12V 121.2 lbf (55.0 kgf)
Quick Bow Thrusters - BTQ 185 Electric 12V 121.2 lbf (55.0 kgf) is backordered and will ship as soon as it is back in stock.
Description
Description

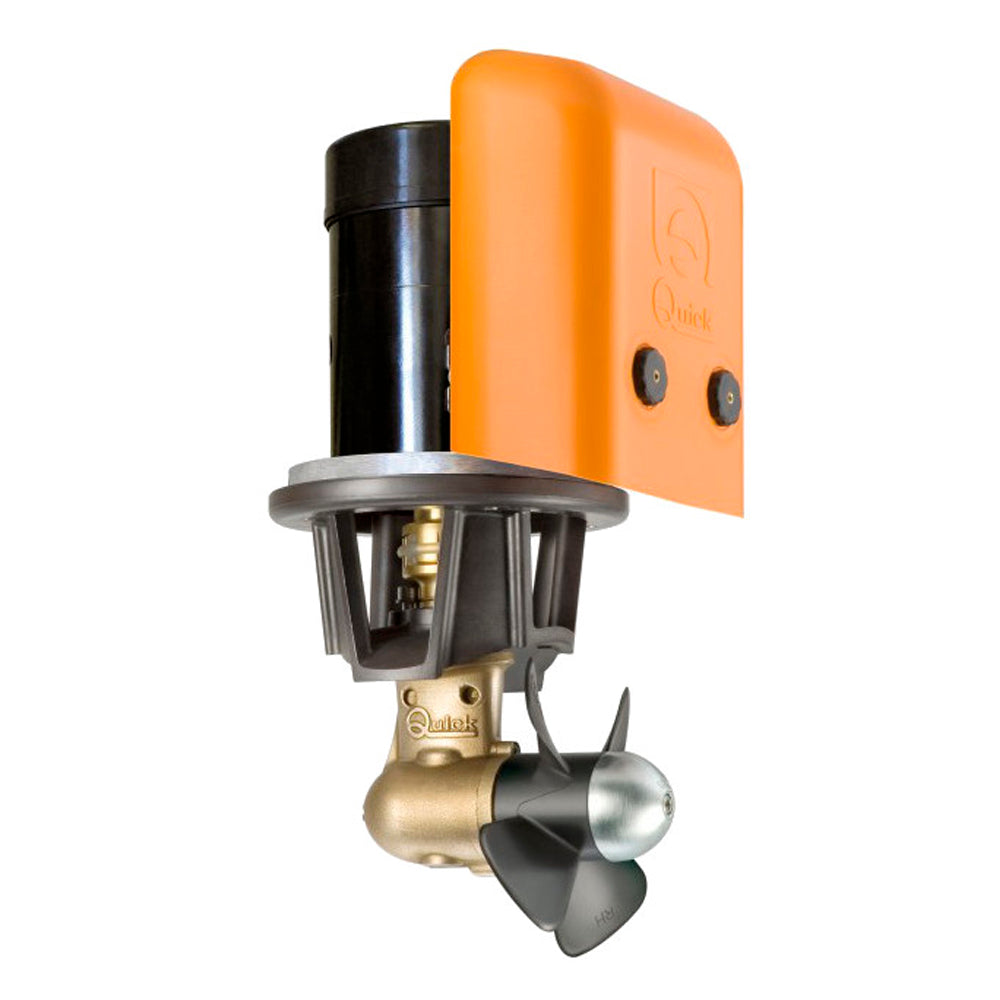

The Quick BTQ 180 is a single propeller bow thruster composed of a sturdy composite material. Some additional features of this unit are the solenoid which is protected by a sturdy composite material, the gearbox is composed of bronze, and the zinc anode is independent from the gearbox which allows an easy replacement and it is also equipped with an elastic coupling. This unit is sold complete with the bow thruster and users manual.
Our Part # QCKFGBT18055120T00 | Mfr. Part # FGBT18055120T00
Technical Information
Technical Information
Description | Imperial | Metric |
---|---|---|
Propulsion system | Single propeller | |
Tunnel diameter | 7 18/64 in. | 185.00 mm. |
Motor Power | 3.00 Kw. | |
Voltage | 12 V. | |
Section of wire | AWG 3/0 | 95.00 mm2 |
Fuse | 355 A. | |
Thrust | 121.00 lb. | 55.00 Kgf. |
Weight | 43.40 lb. | 20.00 kg. |
Limit thickness values of the tubes | min. 11/64" - max. 1/4" | min. 4.36 mm. - max. 6.35 cm. |
Boat size | 26.00 - 36.00 ft. | 8.00 - 11.00 m. |
