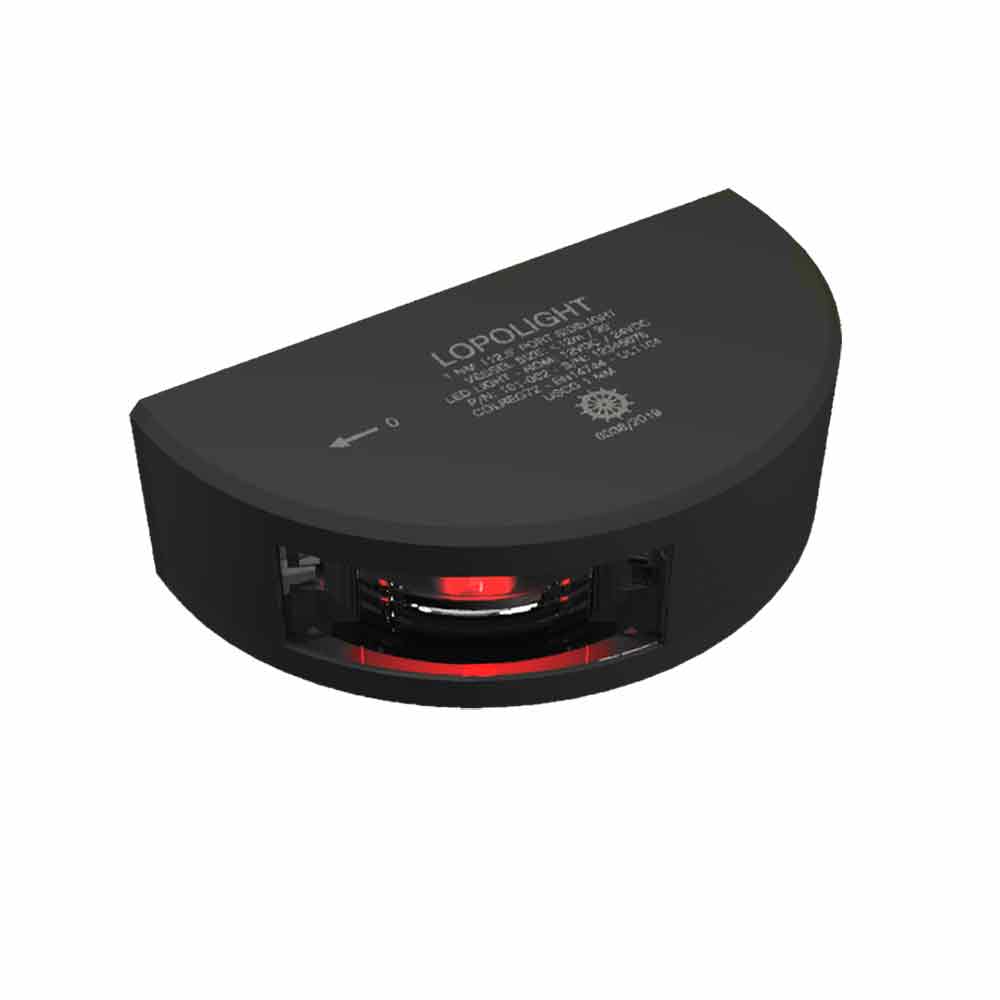

Lopolight Side Lights - Vertical Mount - Red - Black Housing - 112.5° - 1 nm - Single

This LED navigation light consists of a single high-power LED that produces light in the specified angle utilizing a special designed PMMA light guide.

The precision machined 6082 aluminium housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within.

The interior is completely filled with a special potting resin making it water- and vibration proof.

Produced in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104, under a quality management system continuously surveyed by Lloyds Register Quality Assurance.

Each light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours. This navigation light is in compliance with the following standards:

• COLREG72
• EN14744
• IEC 60945
• USCG (UL1104)

Our Part # LOP-101-002-B | Lopolight Part # 101-002-B

Features:

• New generation
• LED (Light Emitting Diode) navigation light.
• Unique and precise definition of light angles.
• Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
• Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
• Waterproof to IP 68+ (submersible).
• Low power consumption _ 70 to 90% less than traditional navigation lights.
• Full brightness with input voltages ranging from 10 to 32 Volts.
• All Lopolights have been tested several times during production, a total of more than 24 hours.
• Easy to install, adaptor and screws included (when applicable).

Materials:  Anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.
Supply voltage: 10 – 32 VDC
Power Consumption: 1 WattCurrent @ 12 VDC: 0,08 A: Current @ 24 VDC: 0,04 A
Light Color: Red
Vessel size: 12 (39.4 ft)
Visibility: 1 nm
Intensity: >1.2 cd
Operating voltage: 10 - 32 VDC
Number of LEDs: 1
Mounting: Vertical
