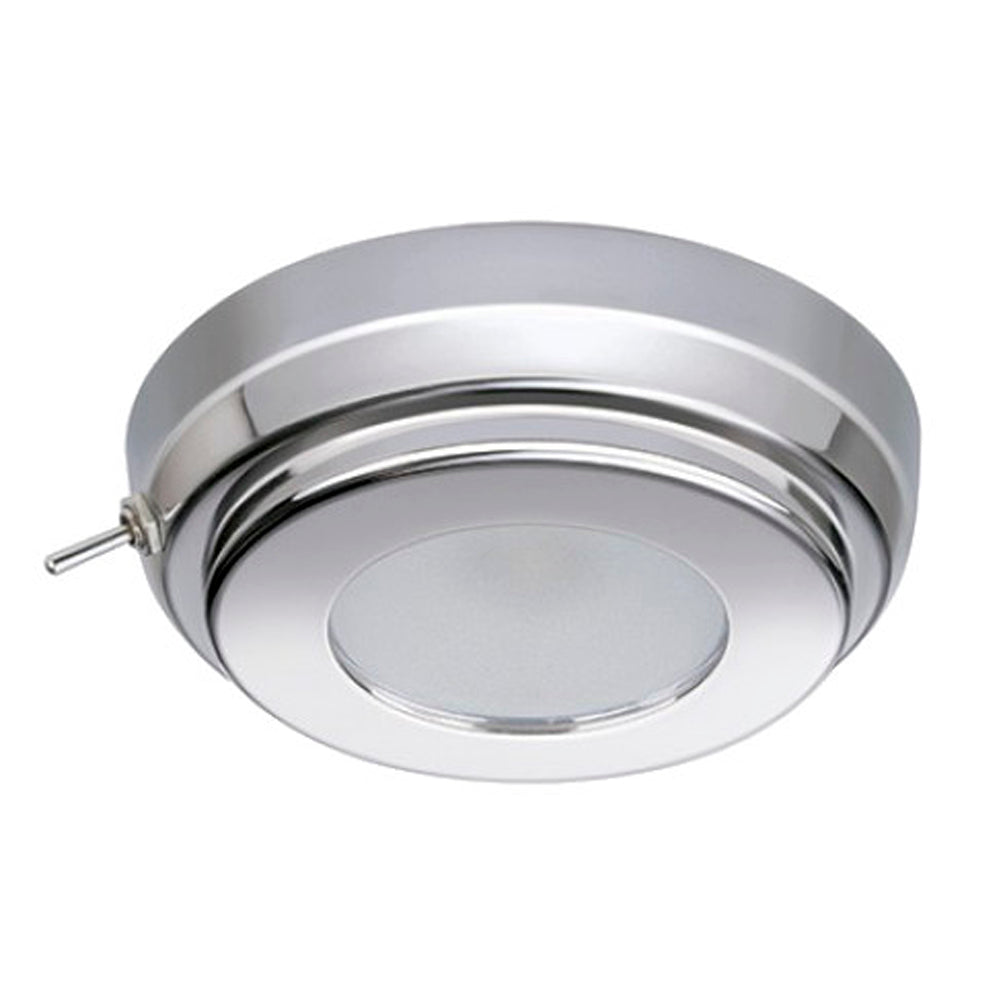

Quick Down Lights - Tim CS - Mirror Polished Bezel - Warm White - LED

The Tim CS is an IP40 recessed LED surface mounted downlight. It has a 70mm round trim composed of plastic plate. It features a satin diffuser and can be installed on the wall or ceiling.

LED Protection: Spike protected ± 500V Polarity sensitive: YES

Our Part # QCKFASP3512X02CA00 | Quick Part # FASP3512X02CA00

Power Type: Constant Voltage
Light Source: 6 x LED
Supply: 10 ÷ 30 V
Power Consumption: 2 W
Current Consumption: 0.09 A @ 12 V
Average Lifetime: 50000 Hours
IP Security Degree: 40
Frame: 3 9/16 in
Recess: 55/64 in (Thickness)
