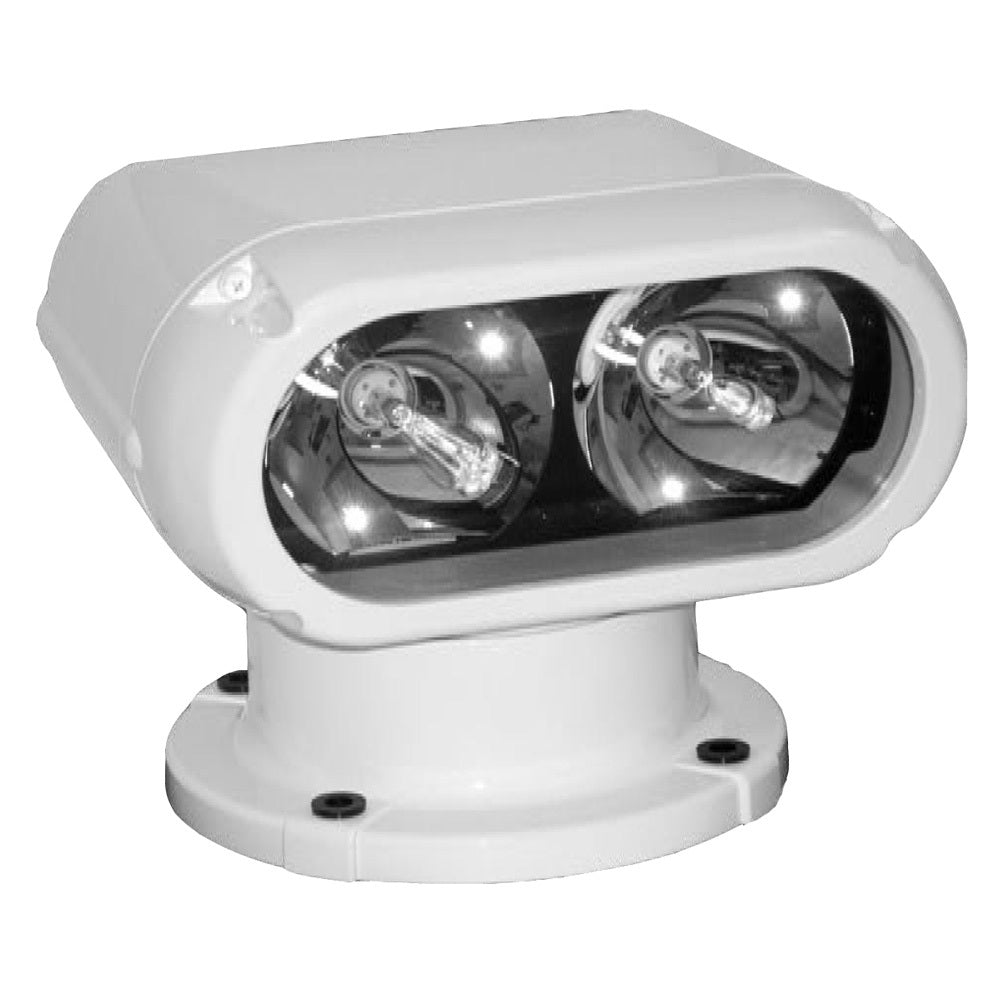

ACR Search & Spot Lights - RCL-300 - Remote Controlled Searchlight - White

RCL-300 Remote Controlled Searchlight - 12V/24V

Features:

• 12v - 24v 1 million* CD
• Internal elevation mechanism provides pitch control of spotlight beam; protects elevation mechanism from weather
• Includes fingertip remote control Point Pad™; up to three remote Point Pad™ units may be installed on system; surface/flush mount options included
• Rugged triple-primed and sealed, marine grade aluminum housing
• Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
• Auto return function that returns light to forward position when powered down
• Salt water-resistant construction with nylon and phenolic washers, aluminized stainless steel screws with insulating lubricant
• Wiring harness included
• *Twin 35w, metal halide HID lamps provide over 500k CD each and 1 million effective CD when combined

Specifications:

• Size: 12" x 13" x 9.3" (31 x 33 x 23.5 cm)
• Weight: 36lbs (16.39 kg)
• Material: Marine grade cast aluminum, tempered glass
• Input Voltage: 12V-24VDC
• Amp Draw Startup 25A @12V, Running 8A @ 12V
• Color: White
• Operation: Remote controlled Point Pad™
• Beam Angle: 6°
• Elevation Angle: 15° up, 30° down
• Rotation: 360° continuous
• Rotation Speed:Fast 30° per second Slow 10° per second
• Elevation Speed: 3° per second
• Lamp: Twin 35W metal halide lamps 1,000 hours operating life

Accessories:

• Secondary Point Pad™ for remote control with install kit (P/N 9282.3)
• Replacement 35W Halide lamps (P/N 6009)
• Footprint Diameter: 9" (23cm)
• Limited Warranty: 1 Year
• Carton Dimensions:20.5" x 14.25" x 19.25"
• Carton Weight: 40 lbs

WARNING: This product can expose you to chemicals including BISPHENOL A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Our Part # ACR-1933 | ACR Part # 1933
