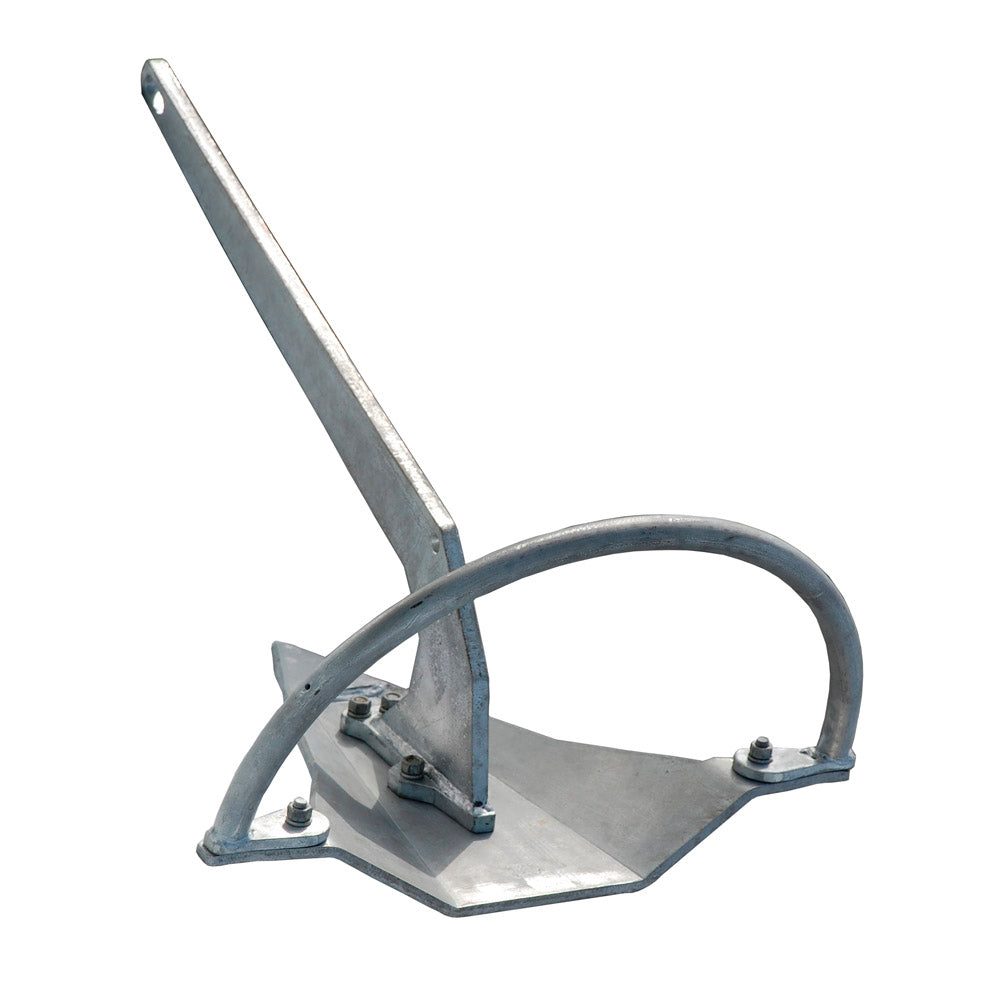

Mantus Anchors Spade Anchor - M1 (Galvanised) - 8 lb (3.6 kg)

SKU: MAT-GA8LB  |  Manuf. Code: MANGV8
$185.75 USD

Description

The Mantus Anchors Spade Anchor - M1 (Galvanised) - 8 lb (3.6 kg) #MANGV8 is perfect for anchoring in challenging conditions with its remarkable ability to penetrate dense grassy bottoms. You can count on its strong holding power whether you're on a long voyage or just enjoying a day on the water. Its design allows it to break down easily, making it a breeze to store without taking up extra space.

Features & Benefits

  • Engineered for dense, grassy seabeds
  • Unmatched holding power
  • Compact and easy to store

Crafted from galvanized steel, this spade anchor weighs in at 8 lb (3.6 kg), offering durability and reliability. It's designed to suit various boating needs, from casual sailing to serious offshore cruising. Its breakdown structure ensures easy storage and transport, allowing you to keep spares on board without hassle.

Usage

Ideal for use in a variety of seabed conditions, especially dense and grassy areas. Perfect for sailors who require a reliable anchor that can be stowed easily when not in use.

Features

Features:

  • Formed out of high quality steel plate. Contains no cast parts.
  • Shank and shank boot are welded from top and bottom.
  • Shank and roll bar are bolted to the fluke.
  • ASTM certified steel bolts are oversized with a large margin to ensure safety.
  • Although the shank is attached to the fluke with 4 bolts, a single bolt has sufficient strength to handle the maximum expected load on the anchor.
  • In the carbon steel version every part of the anchor system is hot-dipped galvanized for corrosion protection. (All shanks are HT ASTM 514 Steel and Flukes are mild steel A36 equivalen).
  • Sharp-headed nose is precision machined to achieve the perfect chisel shape to achieve maximum penetrating power.
  • Mantus Anchors offers a lifetime warranty on its anchors.

Knowledge Base

Click on the following technical articles to find relevant information about Anchors:

Technical Information

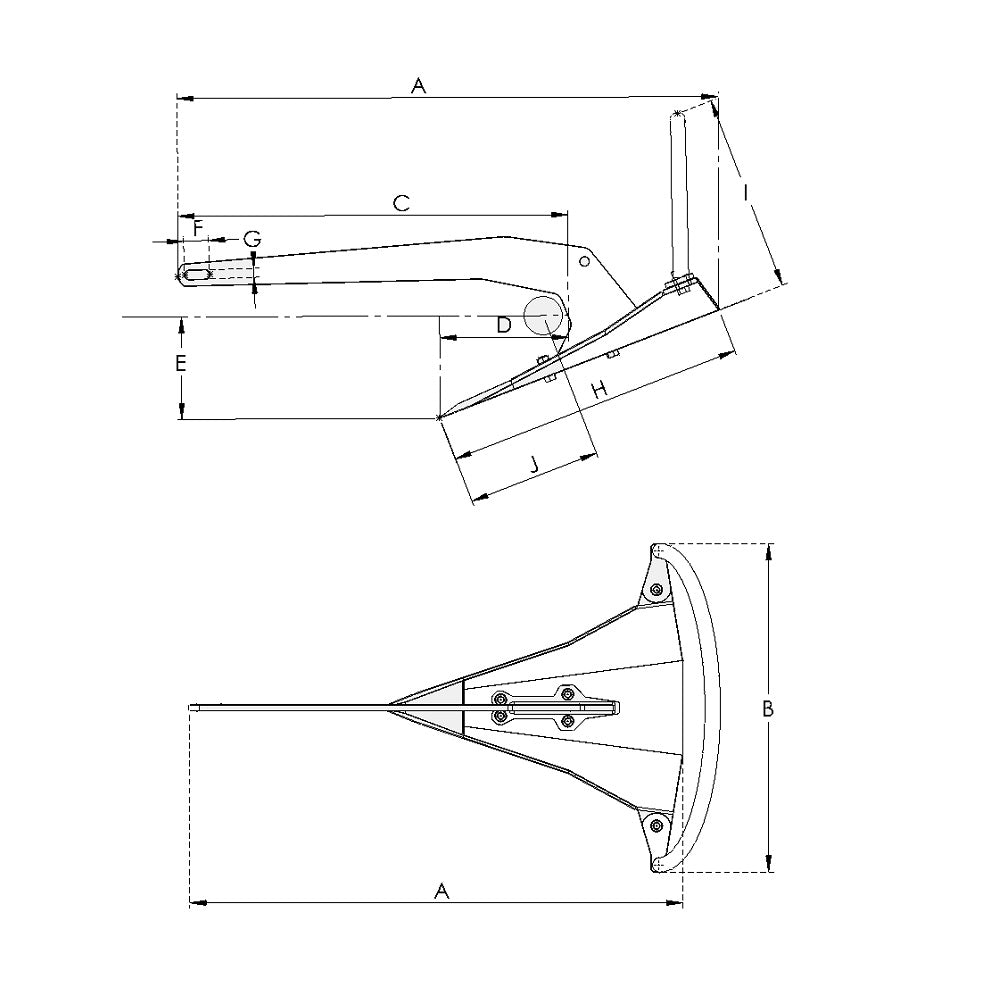

DescriptionMetricImperial
Size3.6 kg8.0 lb
A546.0 mm21 1/2 in
B331.0 mm13.0 in
C384.0 mm15 1/8 in
D130.0 mm5 1/8 in
E103.0 mm4 1/8 in
F25.0 mm1.0 in
G9.0 mm11/32 in
H302.0 mm11 7/8 in
I200.0 mm7 7/8 in
J135.0 mm5 5/16 in
